Epson L565 Service Manual

L565/L566 Series Revision A
Disassembly/Reassembly Detailed Disassembly/Reassembly Procedure for each Part/Unit 51
Confidential

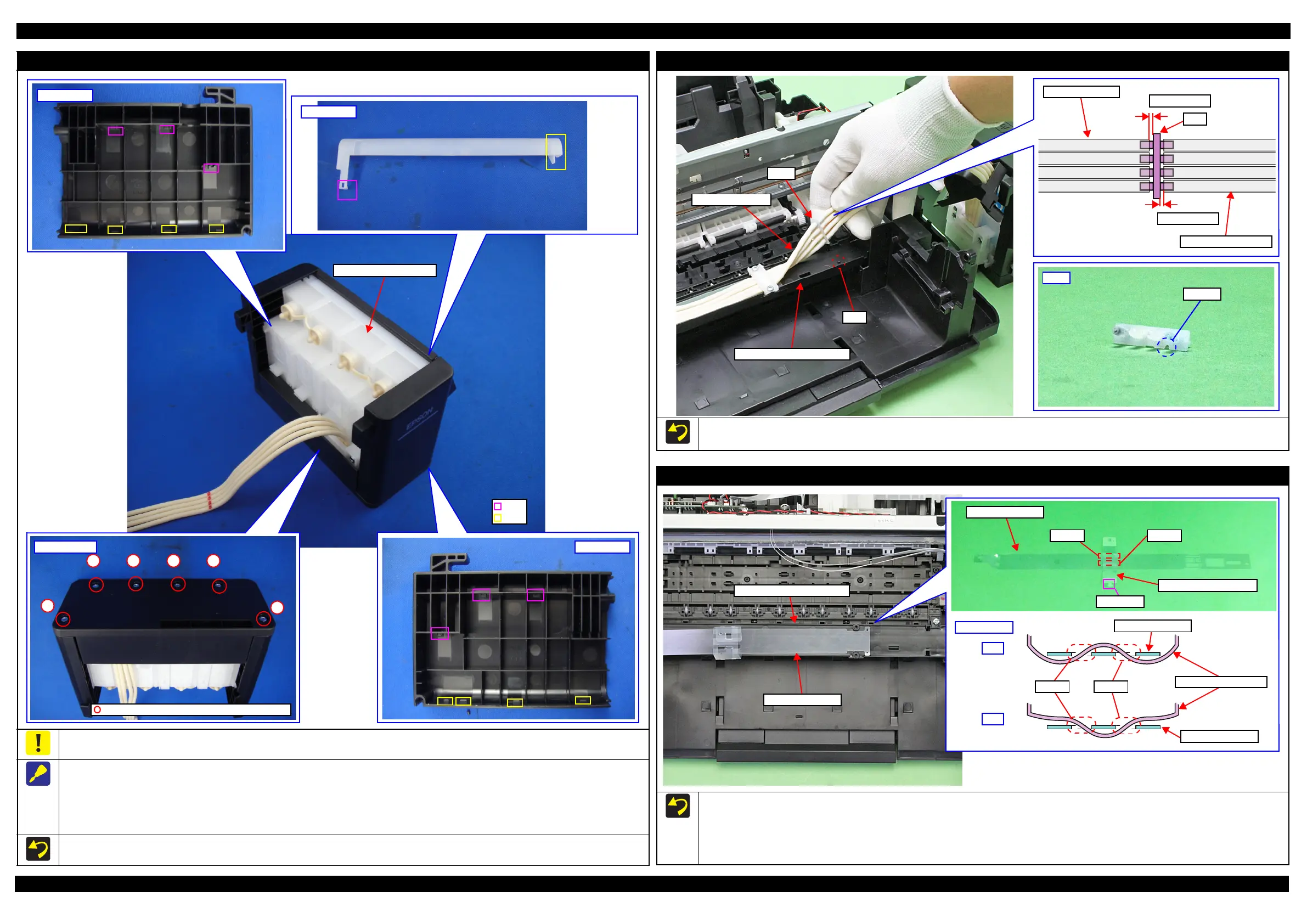

Bottom Cover / Left Cover / Right Cover / Cover Joint
Be careful about how to place the Ink Supply Tank Assy in order to prevent printing failure from occurring. (See "2.1.5Checks and Precautions before
Disassembling (p27)"
.)
 The figures above indicate the hooks and ribs that secure the parts.
 Remove the exterior parts of the Ink Supply Tank Assy in the following order.
1. Remove the screws (x6) of the Bottom Cover, and remove the Bottom Cover.
2. Remove the Left Cover and Right Cover.
3. Remove the Cover Joint.
Tighten the screws in the order indicated in the figure above.
Ink Supply Tank Assy
Hook
Rib
Cover Joint
Left Cover
Bottom Cover
1
2
3 45 6
C.B.P-TITE SCREW 3x6 F/ZN-3C (4 ± 1
Right Cover
Joint
 When attaching the Joint, align the cutout of the Joint with the rib of the Ink Supply Tube Guide 2nd.
 Make sure the gaps between the end of Ink Supply Tank Tubes or Ink Supply Tubes and the Joint are 0.5 mm long or less.
Joint
Rib
Ink Supply Tube
Ink Supply Tube Guide 2nd
0.5 mm or less
Ink Supply Tube
Ink Supply Tank Tube
Joint
0.5 mm or less
Joint
Cutout
Tube Guide Sheet / Tube Guide Sheet Sub
 Refer the figure above and follow the procedure below when attaching the Tube Guide Sheet Sub to the Tube Guide Sheet.
1. Insert the section A of the Tube Guide Sheet Sub into the hole 1 of the Tube Guide Sheet from the bottom.
2. Insert the section A of the Tube Guide Sheet Sub into the hole 2 of the Tube Guide Sheet from the top.
 When attaching the Tube Guide Sheet to the Ink Supply Tube Guide 2nd, while keeping the Tube Guide Sheet Sub attached on the Tube Guide
Sheet, align the holes of the Tube Guide Sheet with the protrusions of the Ink Supply Tube Guide 2nd.
Hole 2
Section A
Hole 1
Tube Guide Sheet
Tube Guide Sheet Sub
OK
Cross Section
NG
Hole 2
Tube Guide Sheet Sub
Tube Guide Sheet
Tube Guide Sheet
Hole 1
Tube Guide Sheet
Ink Supply Tube Guide 2nd
