Epson L565 Service Manual

L565/L566 Series Revision A
Disassembly/Reassembly Detailed Disassembly/Reassembly Procedure for each Part/Unit 52
Confidential

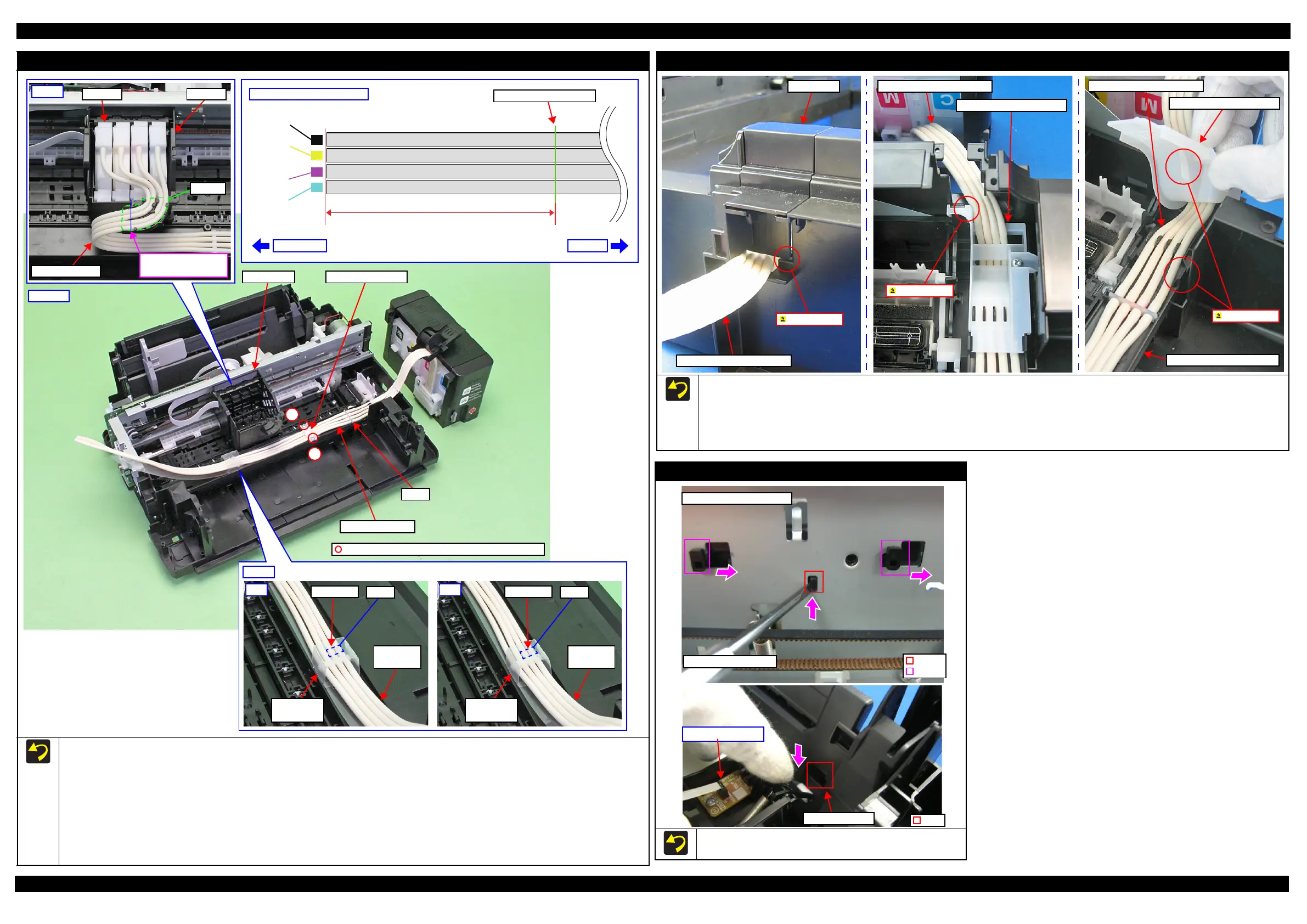

Ink Supply Tube Assy
Follow the procedure below when installing the Ink Supply Tube Assy.
1. Mark up the position where is 75 ± 0.5 mm away from the adapter of the Ink Supply Tube Assy.
2. Connect the Ink Supply Tube to the Joint.
3. Place the Ink Supply Tube Assy on the Tube Guide Sheet, and engage the both ends of the Tube Guide Sheet Sub by inserting one end (Section
A) into the hole of the other end from above.
4. Attach the Tube Pressing Plate and screw it tightening the screws in the order shown above.
5. Connect the Ink Supply Tube to the Adapter, and install the Adapter to the CR Unit. (p 50)
6. Route the Ink Supply Tubes through the grooves of the CR Unit, and align the markings on the Ink Supply Tubes with the edge of the grooves as
shown in the figure above.
75 ± 0.5 mm
Black
Magenta
Yellow
Cyan
Joint side
Adapter side
Markings (on the back)
Ink Supply Tube Assy: Step 1
CR Unit
1
2
Joint
NG
Ink Supply
Tube
Section A
Hole
Tube Guide
Sheet Sub
Adapter
Ink Supply Tube
Align markings with
edge of grooves.
CR Unit
Grooves
Step 6
OK
Ink Supply
Tube
Section A
Hole
Tube Guide
Sheet Sub
Tube Pressing Plate
Ink Supply Tube
Step 2, 4
Step 3
C.B.P-TITE SCREW 2.6x5 F/ZN-3C (3 ± 0.5 kg·fcm)
Tube Cover / Ink Supply Tube Guide 1st / Ink Supply Tube Guide 2nd
Make sure of the following when the Ink Supply Tank Tube Assy is reassembled.
 Must be aligned along the Ink Supply Tube Guide 1st.
 Must not overlap over the guide section of the Ink Supply Tube Guide 1st.
 Must not get caught by the Tube Cover.
 Must not get caught by any ribs on the Ink Supply Tube Guide 1st or Ink Supply Tube Guide 2nd.
Tube Cover
Ink Supply Tank Tube Assy
Coution point
Ink Supply Tank Tube Assy
Ink Supply Tube Guide 1st
Coution point
Ink Supply Tube Guide 1st
Ink Supply Tube Guide 2nd
Ink Supply Tank Tube Assy
Coution point
Paper Sensor Unit
Slide and remove the Paper Sensor in the direction of the arrow
while releasing the ribs and hook.
Hook
Rib
Front side of main frame
Hopper
Paper sensor
Paper Sensor fook
Hole

Epson L565 Specifications

General

Duplex printing	No
Print technology	Inkjet
Maximum resolution	5760 x 1440 DPI
Print speed (black, normal quality, A4/US Letter)	9.2 ppm
Print speed (color, normal quality, A4/US Letter)	4.5 ppm
Maximum copy resolution	- DPI
Image formats supported	JPG
Document formats supported	PDF
Optical scanning resolution	1200 x 2400 DPI
Faxing	Color faxing
Fax memory	100 pages
Digital sender	-
Printing colors	Black, Cyan, Magenta, Yellow
Country of origin	Indonesia
Maximum duty cycle	- pages per month
Paper input type	Paper tray
Total input capacity	30 sheets
Total output capacity	100 sheets
Photo paper sizes	10x15, 13x18 cm
Paper tray media types	Plain paper
ISO A-series sizes (A0...A9)	A4, A5, A6
ISO B-series sizes (B0...B9)	B5
ISO C-series sizes (C0...C9)	C6
Maximum ISO A-series paper size	A4
Display	LCD
Control type	Touch
Product color	Black
Market positioning	Home & office
Security algorithms	128-bit WEP, 64-bit WEP, WPA-AES, WPA-PSK, WPA-TKIP
Standard interfaces	USB 2.0
Internal memory	- MB
Sound pressure level (copying)	38 dB
AC input voltage	110 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (off)	0.3 W
Power consumption (standby)	1.6 W
Power consumption (average operating)	11 W
Sustainability certificates	ENERGY STAR
Pallet width	800 mm
Pallet height	1320 mm
Pallet length	1200 mm
Pallet width (UK)	1000 mm
Quantity per pallet	12 pc(s)
Quantity per pallet (UK)	24 pc(s)
Quantity per pallet layer	2 pc(s)
Quantity per pallet layer (UK)	4 pc(s)
Package depth	563 mm
Package width	465 mm
Package height	315 mm
Package weight	9060 g
Quantity per pack	1 pc(s)

Weight and Dimensions

Depth	377 mm
Width	484 mm
Height	226 mm
