Epson L565 Service Manual

L565/L566 Series Revision A
Disassembly/Reassembly Detailed Disassembly/Reassembly Procedure for each Part/Unit 46
Confidential

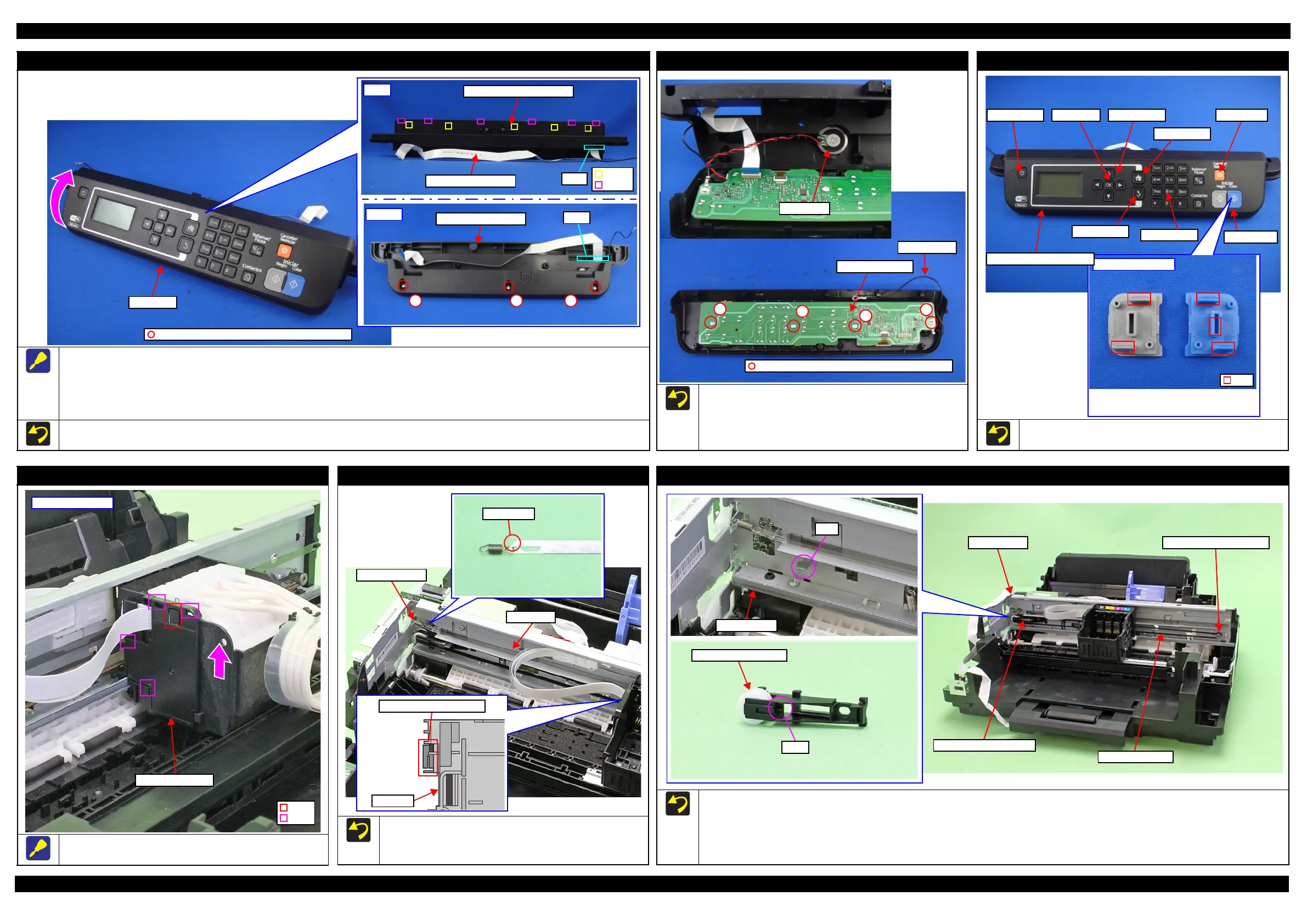

Panel Housing Upper Assy
When removing the Panel Housing Upper Assy, follow the procedure below.
1. Remove the screw (x3) of the Panel Unit.
2. Rotate and lift the front side of the Panel Housing Upper Assy and remove the hook (x4) and rib (x5) from the Panel Housing Upper Assy.
3. Pull out the grounding wire of the Panel Housing Upper Assy from the hole of the Panel Housing Lower Assy and remove the Panel Housing
Upper Assy from the Panel Housing Lower Assy.
Tighten the screws in the order indicated in the figure above.
Rear
Hook
Rib
Panel Housing Upper Assy
Panel Housing Lower
Hole
Panel Unit
Bottom
Panel Housing Lower
Hole
123
C.B.P-TITE SCREW 3x10 F/ZB-3C (6 ± 1 kgf·cm)
Panel Board Assy
 Tighten the screws in the order indicated in the figure above.
 Tighten the grounding wire together on the position indicated
in the figure above.
 Tighten the grounding wire with screws on the direction
indicated in the figure above.
Panel Board Assy
1
Grounding wire
2
3
4
C.B.P-TITE SCREW 3x10 F/ZN-3C (6 ± 1 kgf·cm)
Speaker
Panel Buttons
When attaching the Select Button to the Panel Housing Upper Assy,
attach the Select Button with its side without any rib downward.
Start Button
Rib
Start button
Stop ButtonSelect ButtonOK ButtonPower Button
The side without any rib must be the side of
down arrow.
Panel Housing Upper Assy
Key Button
Home Button
Back Button
FFC Cover Outer
Slide and remove the FFC Cover Outer in the direction of the arrow
while releasing the hook.
Hook
Rib
FFC Cover Outer
Left side of CR Unit
CR Scale
 Attach the CR Scale to the hook on the left of the Main Frame
with the black triangle mark upward.
 Make sure to put the CR Scale through the slit of the CR
Encoder Sensor.
Cut Section
Slit of CR Encoder Sensor
CR Unit
CR Scale
Extension spring
CR Driven Pulley Assy / CR Timing Belt
When installing the CR Driven Pulley Assy and CR Timing Belt, follow the procedure below.
1. Install the CR Driven Pulley Assy to the Main Frame.
2. Attach the Compression Spring 20.91 in the order from the dowel on the CR Driven Pulley Assy to the rib on the Main Frame.
3. Attach the CR Timing Belt to the CR Driven Pulley Assy.
4. Attach the CR Timing Belt on the pinion gear of the CR Motor while pushing the CR Driven Pulley Assy to the 0-digit side.
Main Frame
Rib
CR Driven Pulley Assy
Dowel
Main Frame
CR Timing Belt
Pinion gear of CR Motor
Compression Spring 20.91

Epson L565 Specifications

General

Duplex printing	No
Print technology	Inkjet
Maximum resolution	5760 x 1440 DPI
Print speed (black, normal quality, A4/US Letter)	9.2 ppm
Print speed (color, normal quality, A4/US Letter)	4.5 ppm
Maximum copy resolution	- DPI
Image formats supported	JPG
Document formats supported	PDF
Optical scanning resolution	1200 x 2400 DPI
Faxing	Color faxing
Fax memory	100 pages
Digital sender	-
Printing colors	Black, Cyan, Magenta, Yellow
Country of origin	Indonesia
Maximum duty cycle	- pages per month
Paper input type	Paper tray
Total input capacity	30 sheets
Total output capacity	100 sheets
Photo paper sizes	10x15, 13x18 cm
Paper tray media types	Plain paper
ISO A-series sizes (A0...A9)	A4, A5, A6
ISO B-series sizes (B0...B9)	B5
ISO C-series sizes (C0...C9)	C6
Maximum ISO A-series paper size	A4
Display	LCD
Control type	Touch
Product color	Black
Market positioning	Home & office
Security algorithms	128-bit WEP, 64-bit WEP, WPA-AES, WPA-PSK, WPA-TKIP
Standard interfaces	USB 2.0
Internal memory	- MB
Sound pressure level (copying)	38 dB
AC input voltage	110 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (off)	0.3 W
Power consumption (standby)	1.6 W
Power consumption (average operating)	11 W
Sustainability certificates	ENERGY STAR
Pallet width	800 mm
Pallet height	1320 mm
Pallet length	1200 mm
Pallet width (UK)	1000 mm
Quantity per pallet	12 pc(s)
Quantity per pallet (UK)	24 pc(s)
Quantity per pallet layer	2 pc(s)
Quantity per pallet layer (UK)	4 pc(s)
Package depth	563 mm
Package width	465 mm
Package height	315 mm
Package weight	9060 g
Quantity per pack	1 pc(s)

Weight and Dimensions

Depth	377 mm
Width	484 mm
Height	226 mm
