Epson L565 Service Manual

L565/L566 Series Revision A

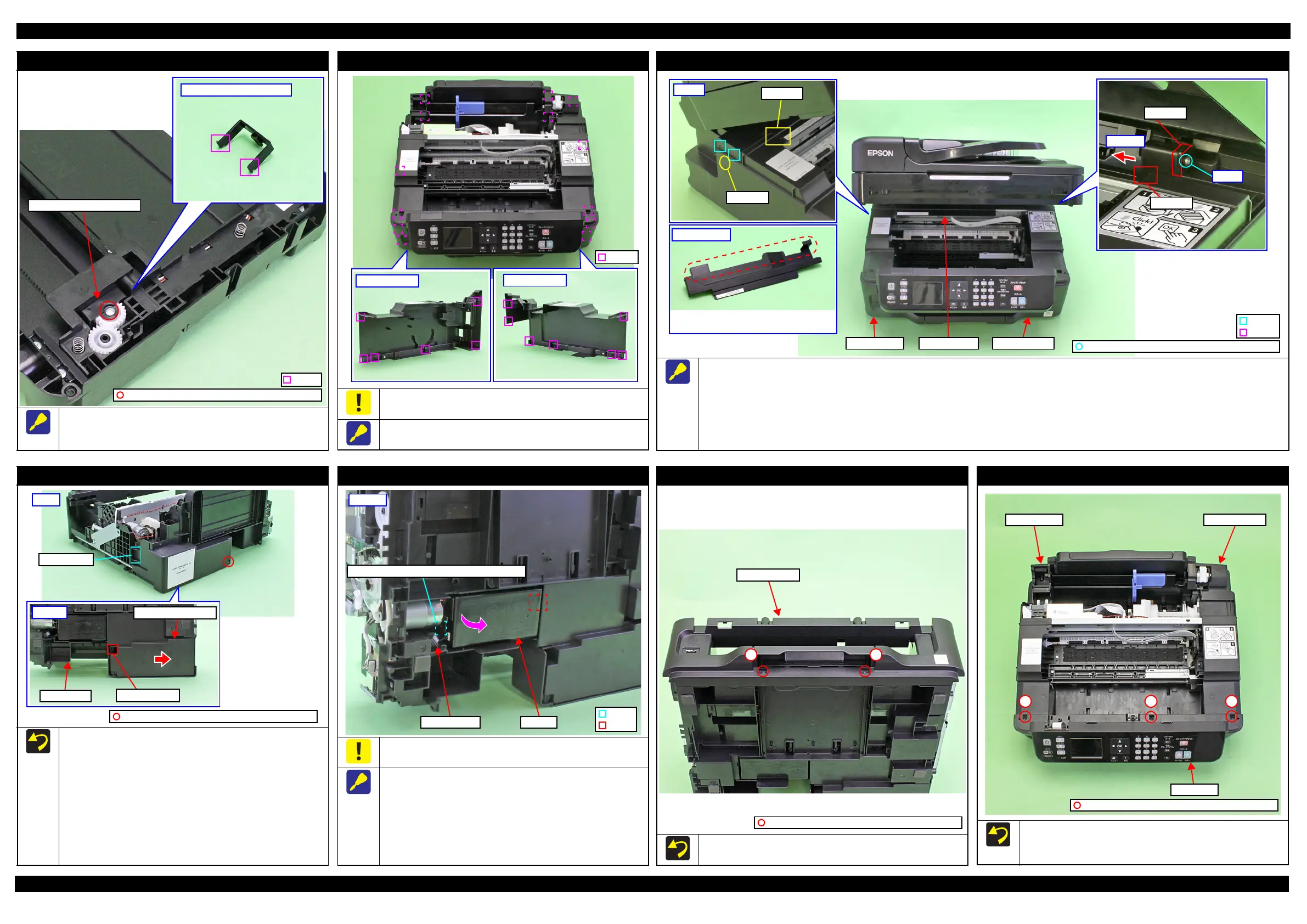

Disassembly/Reassembly Detailed Disassembly/Reassembly Procedure for each Part/Unit 45
Confidential
Scanner Motor Gear Cover
Remove the Scanner Motor Gear Cover by removing the screw
securing the Scanner Motor Gear Cover to release the hooks (x2) of
the Scanner Motor Gear Cover.
Scanner Motor Gear Cover
C.B.P-TITE SCREW 3x10 F/ZN-3C (6 ± 1 kgf·cm)
Hook
Scanner Motor Gear Cover
Housing Left / Housing Right
When releasing the hooks (x14) of the Housing Left/Housing
Right, be careful not to damage the hooks (x14).
Release the hooks shown above when removing the Housing Left/
Housing Right.
Housing Right
Housing Left
Hook
Housing Rear
When removing the Housing Rear, follow the procedure below.
1. Remove the screw (x1) of the Housing Rear.
2. Press the section A on the Housing Left and release the dowels (x2) of the Housing Left from the Housing Rear, and lift the rear side of the
Housing Rear slightly to release the section B from the Housing Left.
3. Pull and turn the section C of the Housing Rear slightly to the front to release it from the gap between the Housing Right and Frame Base.
4. Slide the Housing Rear in the direction of the arrow to release the section D, and remove the Housing Rear while avoiding the Hopper and
Scanner Unit.
C.B.P-TITE SCREW 3x10 F/ZN-3C (6 ± 1 kgf·cm)
Step 2
Section A
Section B
Section D
Section C
Step 3-4
Step 1
Housing Rear
Dowel
Rib
Housing Rear
The section enclosed in red dotted line may be
interfered with the Hopper or the Scanner Unit.
Housing RightHousing Left
Waste Ink Pad Assy
When installing the Waste Ink Pad Assy, follow the procedure below.
1. Place the Waste Ink Pad Assy under the Frame Base.
2. Slide the Waste Ink Pad Assy in the direction of the arrow to
align the hole of the Waste Ink Pad Assy with the hook of the
Frame Base.
3. Confirm the following first, and then tighten the screw to
secure the Waste Ink Pad Assy.
• The rib of the Waste Ink Pad Assy is correctly inserted into
the hole of the Frame Base.
• The Waste Ink Pad Assy is secured firmly with the hook of
the Frame Base.
Bottom
Hook and holeFrame Base
Waste Ink Pad Assy
Rear
Rib and hole
C.B.P-TITE SCREW 3x10 F/ZN-3C (6 ± 1 kgf·cm)
PS Unit
Be careful not to damage the rib of the Frame Base when widen the
rib to release the hook of the PS Unit.
When removing the PS Unit, follow the procedure below.
1. Using a precision screwdriver or the like, widen the rib of the
Frame Base to release the hook of the PS Unit.
2. Remove the PS Unit from the Frame Base in the direction of
the arrow while releasing the rib of the PS Unit.
3. Disconnect the PS Unit cable from the connector on the PS
Unit and remove the PS Unit.
PS Unit
Hook
Rib
Bottom
Widen this rib to release the hook of PS Unit.
PS Unit cable
Housing Front
Tighten the screws in the order indicated in the figure above.
Housing Front
12
C.B.P-TITE SCREW 3x10 F/ZN-3C (6 ± 1 kgf·cm)
Panel Unit
 Tighten the screws (x3) securing the Panel Unit after installing
the Housing Left/Housing Right.
 Tighten the screws in the order indicated in the figure above.
Panel Unit
Housing RightHousing Left
12 3
C.B.P-TITE SCREW 3x10 F/ZB-3C (6 ± 1 kgf·cm)

Epson L565 Specifications

General

Duplex printing	No
Print technology	Inkjet
Maximum resolution	5760 x 1440 DPI
Print speed (black, normal quality, A4/US Letter)	9.2 ppm
Print speed (color, normal quality, A4/US Letter)	4.5 ppm
Maximum copy resolution	- DPI
Image formats supported	JPG
Document formats supported	PDF
Optical scanning resolution	1200 x 2400 DPI
Faxing	Color faxing
Fax memory	100 pages
Digital sender	-
Printing colors	Black, Cyan, Magenta, Yellow
Country of origin	Indonesia
Maximum duty cycle	- pages per month
Paper input type	Paper tray
Total input capacity	30 sheets
Total output capacity	100 sheets
Photo paper sizes	10x15, 13x18 cm
Paper tray media types	Plain paper
ISO A-series sizes (A0...A9)	A4, A5, A6
ISO B-series sizes (B0...B9)	B5
ISO C-series sizes (C0...C9)	C6
Maximum ISO A-series paper size	A4
Display	LCD
Control type	Touch
Product color	Black
Market positioning	Home & office
Security algorithms	128-bit WEP, 64-bit WEP, WPA-AES, WPA-PSK, WPA-TKIP
Standard interfaces	USB 2.0
Internal memory	- MB
Sound pressure level (copying)	38 dB
AC input voltage	110 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (off)	0.3 W
Power consumption (standby)	1.6 W
Power consumption (average operating)	11 W
Sustainability certificates	ENERGY STAR
Pallet width	800 mm
Pallet height	1320 mm
Pallet length	1200 mm
Pallet width (UK)	1000 mm
Quantity per pallet	12 pc(s)
Quantity per pallet (UK)	24 pc(s)
Quantity per pallet layer	2 pc(s)
Quantity per pallet layer (UK)	4 pc(s)
Package depth	563 mm
Package width	465 mm
Package height	315 mm
Package weight	9060 g
Quantity per pack	1 pc(s)

Weight and Dimensions

Depth	377 mm
Width	484 mm
Height	226 mm
