Disassembly/Reassembly Overview 20
L565/L566 Series Revision A
 Printer mechanism

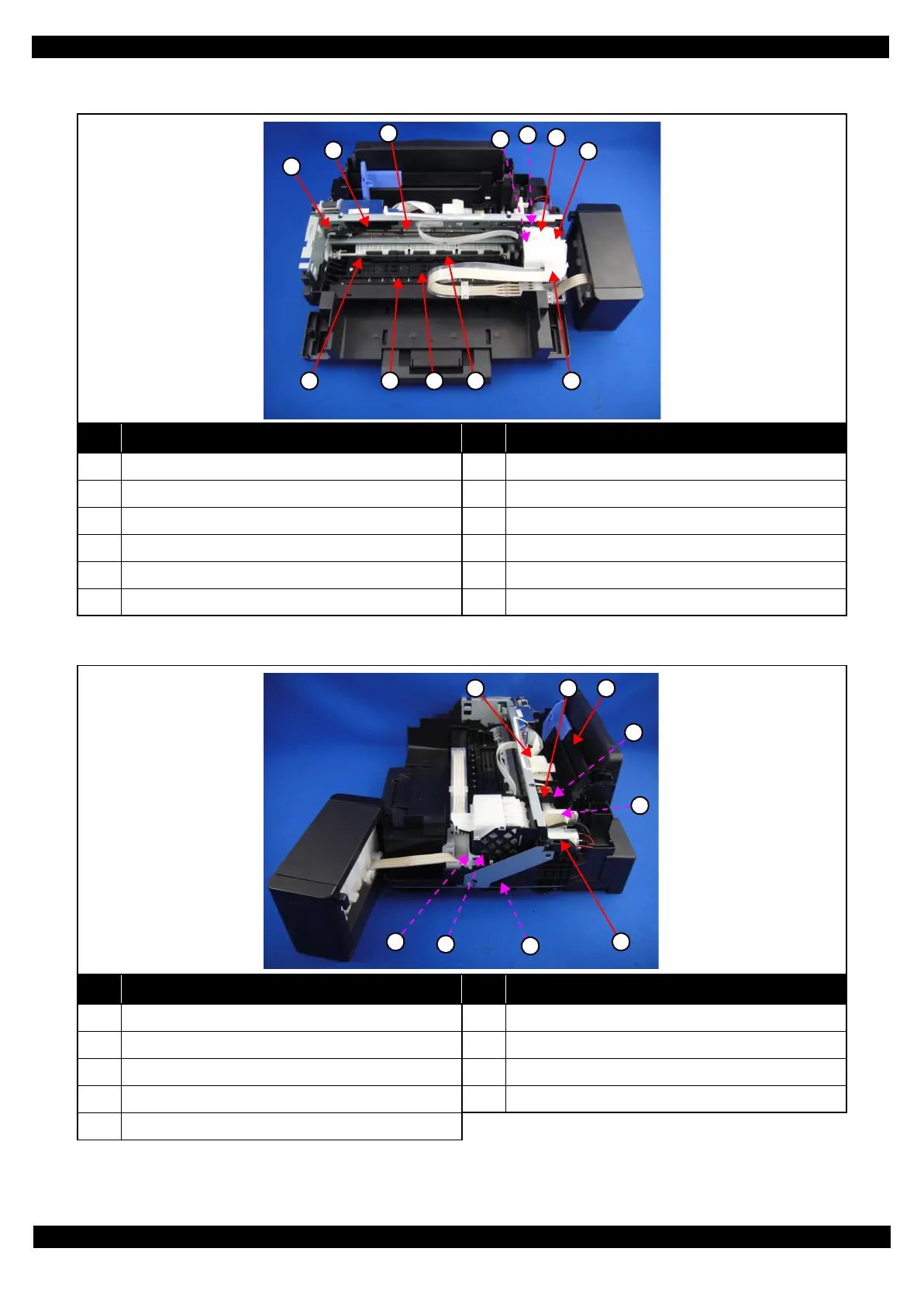

Figure 2-3. Printer Mechanism: Front
Figure 2-4. Printer Mechanism: Right
No. Name No. Name
1 CR Driven Pulley Assy (p38) 7 CR Unit (p42)
2 CR Scale (p38) 8 PF Roller Unit (p42)
3 CR Timing Belt (p42) 9 Star Wheel Holder Assy (p39)
4 Printhead (p35) 10 Paper Guide Front Unit (p35)
5 CR Encoder Sensor (p42) 11 Paper Guide Upper Assy (p42)
6 Adapter (p36) 12 Adapter Cover (p36)
No. Name No. Name
1 LD Roller Cover (p38) 6 Cap Lever (p39)
2 LD Roller Assy (p37) 7 Cap Assy (p39)
3 Hopper (p43) 8 Porous Pad for Cap Assy (p39)
4 Retard Roller Assy (p35) 9 Pump Unit (p42)
5 Paper Back Lever (p35)
1
2
3
5
6
8 9 11
7
10
4
12
6
7
9
5
4
321
8
