Epson L565 - Page 21

Confidential
Disassembly/Reassembly Overview 21
L565/L566 Series Revision A

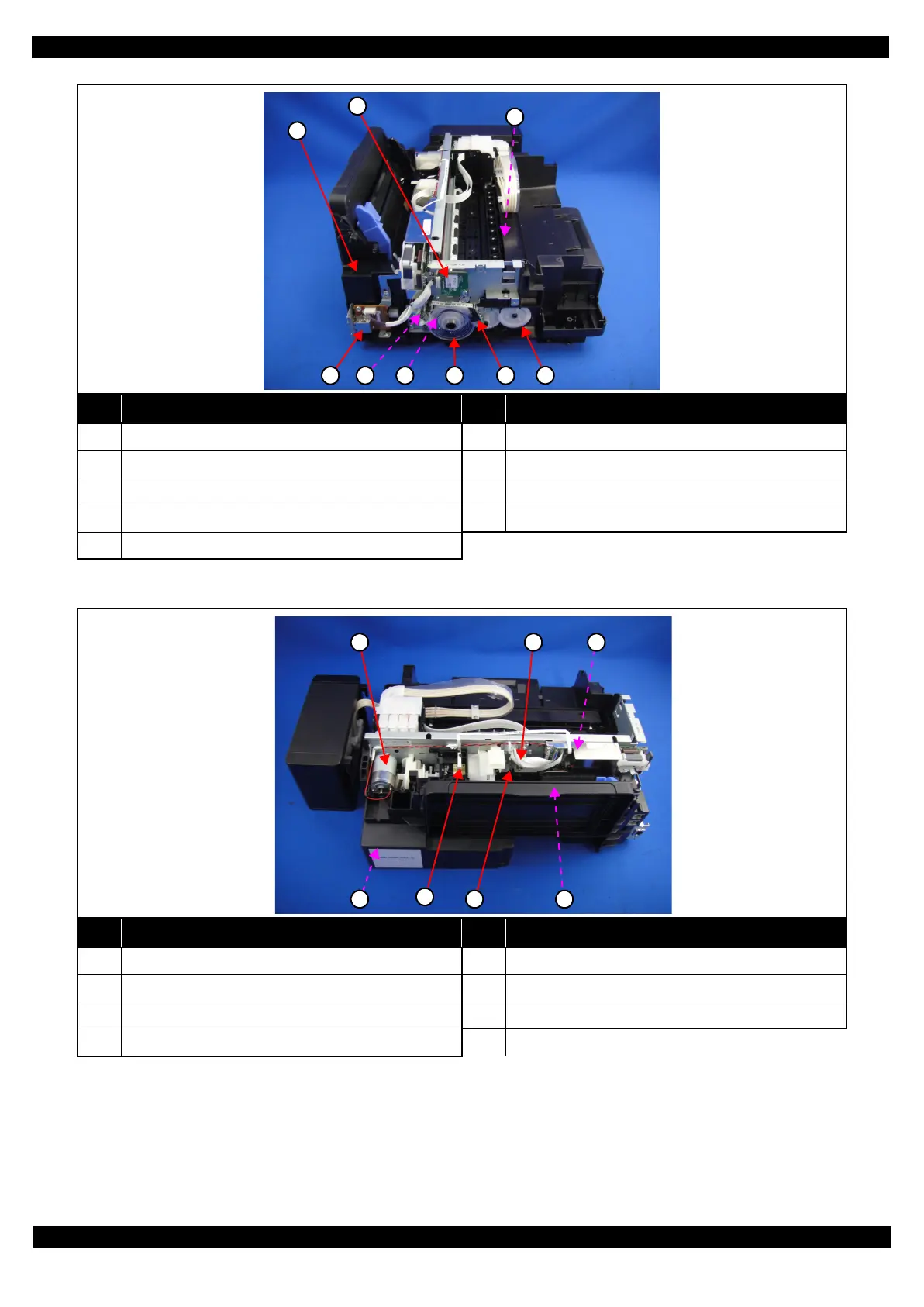

Figure 2-5. Printer Mechanism: Left
Figure 2-6. Printer Mechanism: Rear
No. Name No. Name
1 FAX Assy (p38) 6 PF Timingbelt (p37)
2 Wireless LAN Module (p37) 7PF Scale (p37)
3 EJ Roller (p39) 8 PF Encoder Sensor (p37)
4 Ethernet Board Assy (p43) 9 EJ Roller Gear (p37)
5 PF Motor Assy (p42)
No. Name No. Name
1 CR Motor (p37) 5 Paper Sensor Unit (p39)
2 Head FFC (p42) 6 PE Sensor Lever (p37)
3 Main Board (p37) 7 PS Unit (p37)
4 Waste Ink Pad Assy (p35)
2
3
9
5 7 8
1
4 6
1 2 3
6 74
5
