Disassembly/Reassembly Overview 22
L565/L566 Series Revision A
 Ink Supply Tank Assy

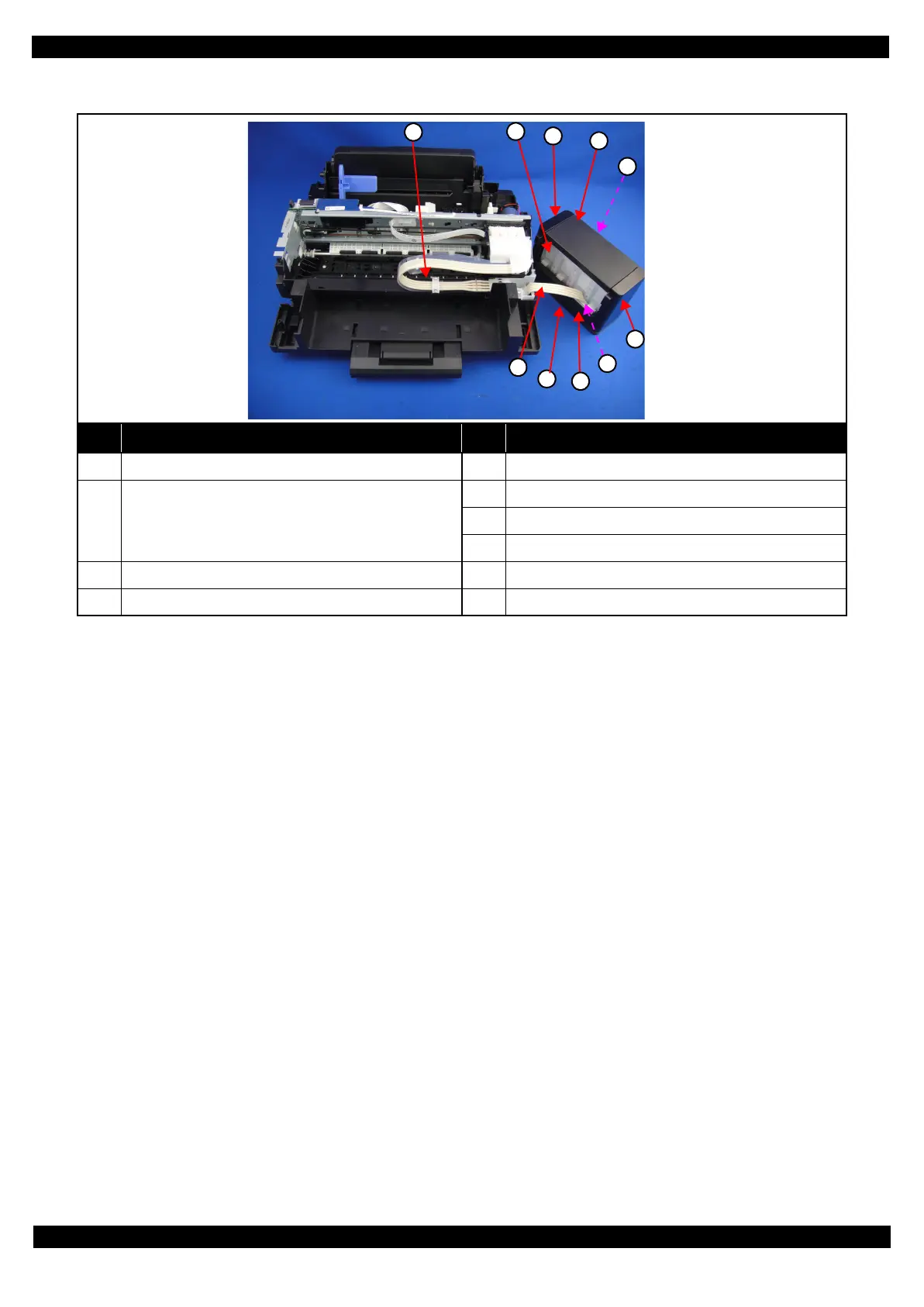

Figure 2-7. Ink Supply Tank Assy
No. Name No. Name
1 Ink Supply Tube Assy (p36) 5 Cover Joint (p41)
2
Ink Supply Tank Assy (p35)
Ink Supply Tank (Magenta) (p41) / Ink Supply Tank
(Yellow) (p41) / Ink Supply Tank (Cyan) (p41) / Ink
Supply Tank (Black) (p41)
6 Right Cover (p41)
7 Cover Tube Tank (p41)
8 Guide Tube Tank (p41)
3 Left Cover (p41) 9 Bottom Cover (p41)
4 Top Cover (p41) 10 Ink Supply Tank Tube Assy (p41)
1
3
4
5
6
7
8
2
9
10
