Epson L565 Service Manual

Confidential
Disassembly/Reassembly Overview 30
L565/L566 Series Revision A

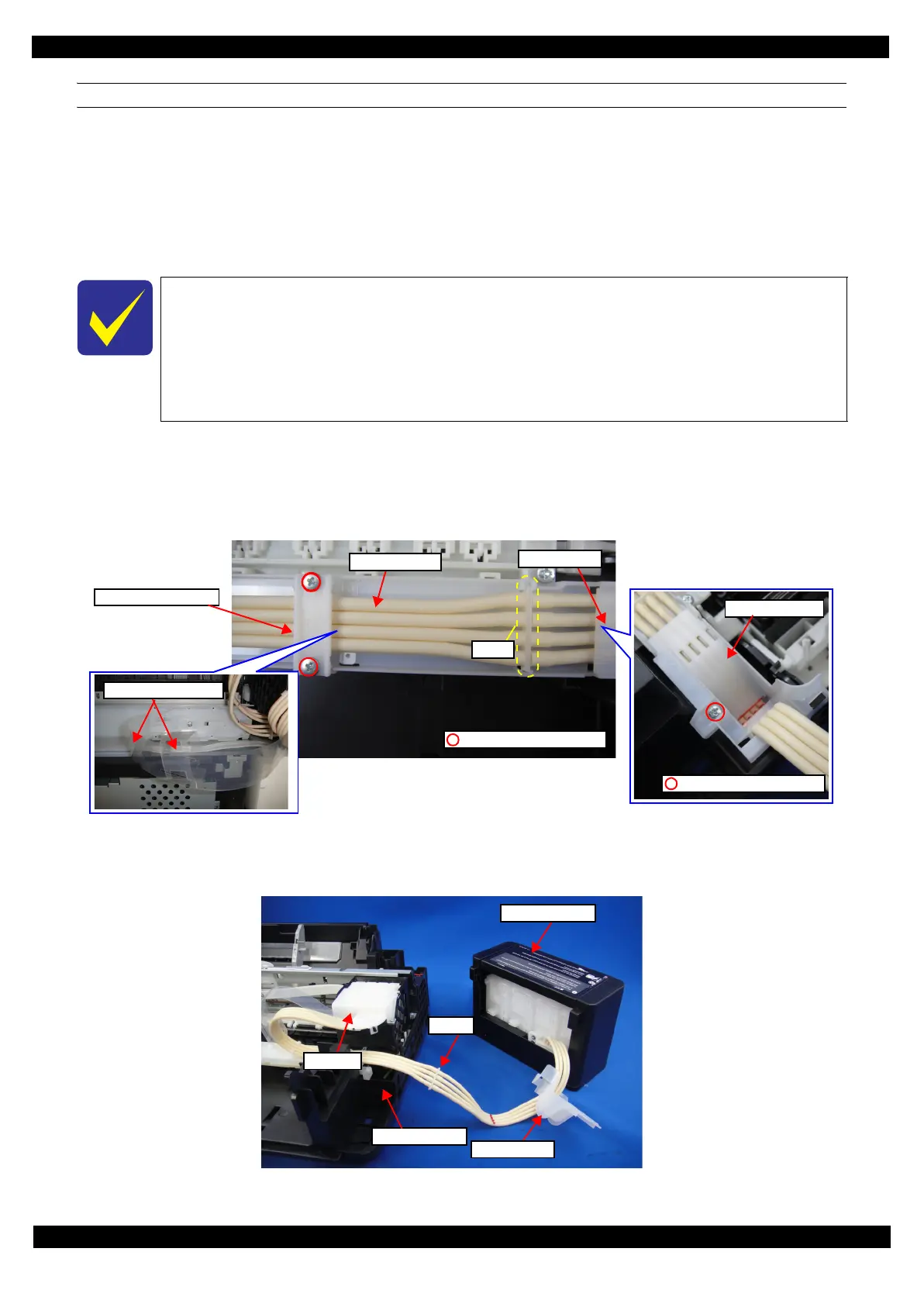

DISCHRGING INK FROM THE INK SUPPLY TANK
Discharging ink is recommended only when disconnecting the Ink Supply Tank Tube Assy from the Ink Supply
Tank. Before performing the above disconnection, discharge ink from the Ink Supply Tank as follows.

Necessary tools
• Containers (x 4) for each discharged ink
• Injector (with a tip of φ 3.2 mm)
• Clips (x 2)
• Cotton swab (x 4)
 Discharging preparation
1. Remove the screw (x 3) of the Guide Tube 1st and the Tube Pressing Plate .
2. Release the hook of the Guide Tube Sub , Release the Guide Tube from Dowel .
3. Release the Ink Supply Tube from rib, and release the Guide Tube 1st from the Frame Base Assy.
Figure 2-11. Discharging preparation (1)
4. Move the Carriage to right side .
5. Release the Joint from the rib of Guide Tube 1st .
Figure 2-12. Discharging preparation (2)
 The photos in the following procedure are for L/365/L366,L360/L362,l220/L222 Series,
but the procedure for L565/L566 Series is the same; the numbers of the tube and the
location of the Ink Supply Tank Assy in the photos are different from those of L565/L566
Series, though.
 Prior to the following steps, connect the injector with the tube, and then discharge ink
according to the procedure.
C.B.P. 3x10 (6.1±1 Kgfcm)
Rib
Tube Pressing Plate
Guide Tube 1st
Ink Supply Tube
Guide Tube ＆ Sub
Guide Tube 1st
C.B.P. 3x10 (6.1±1 Kgfcm)
Ink SupplyTank
Carriage
Guife Tube 1st
Joint
Frame Base Assy

Epson L565 Specifications

General

Duplex printing	No
Print technology	Inkjet
Maximum resolution	5760 x 1440 DPI
Print speed (black, normal quality, A4/US Letter)	9.2 ppm
Print speed (color, normal quality, A4/US Letter)	4.5 ppm
Maximum copy resolution	- DPI
Image formats supported	JPG
Document formats supported	PDF
Optical scanning resolution	1200 x 2400 DPI
Faxing	Color faxing
Fax memory	100 pages
Digital sender	-
Printing colors	Black, Cyan, Magenta, Yellow
Country of origin	Indonesia
Maximum duty cycle	- pages per month
Paper input type	Paper tray
Total input capacity	30 sheets
Total output capacity	100 sheets
Photo paper sizes	10x15, 13x18 cm
Paper tray media types	Plain paper
ISO A-series sizes (A0...A9)	A4, A5, A6
ISO B-series sizes (B0...B9)	B5
ISO C-series sizes (C0...C9)	C6
Maximum ISO A-series paper size	A4
Display	LCD
Control type	Touch
Product color	Black
Market positioning	Home & office
Security algorithms	128-bit WEP, 64-bit WEP, WPA-AES, WPA-PSK, WPA-TKIP
Standard interfaces	USB 2.0
Internal memory	- MB
Sound pressure level (copying)	38 dB
AC input voltage	110 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (off)	0.3 W
Power consumption (standby)	1.6 W
Power consumption (average operating)	11 W
Sustainability certificates	ENERGY STAR
Pallet width	800 mm
Pallet height	1320 mm
Pallet length	1200 mm
Pallet width (UK)	1000 mm
Quantity per pallet	12 pc(s)
Quantity per pallet (UK)	24 pc(s)
Quantity per pallet layer	2 pc(s)
Quantity per pallet layer (UK)	4 pc(s)
Package depth	563 mm
Package width	465 mm
Package height	315 mm
Package weight	9060 g
Quantity per pack	1 pc(s)

Weight and Dimensions

Depth	377 mm
Width	484 mm
Height	226 mm
