L565/L566 Series Revision A
Confidential
Maintenance Lubrication Points and Instructions 73

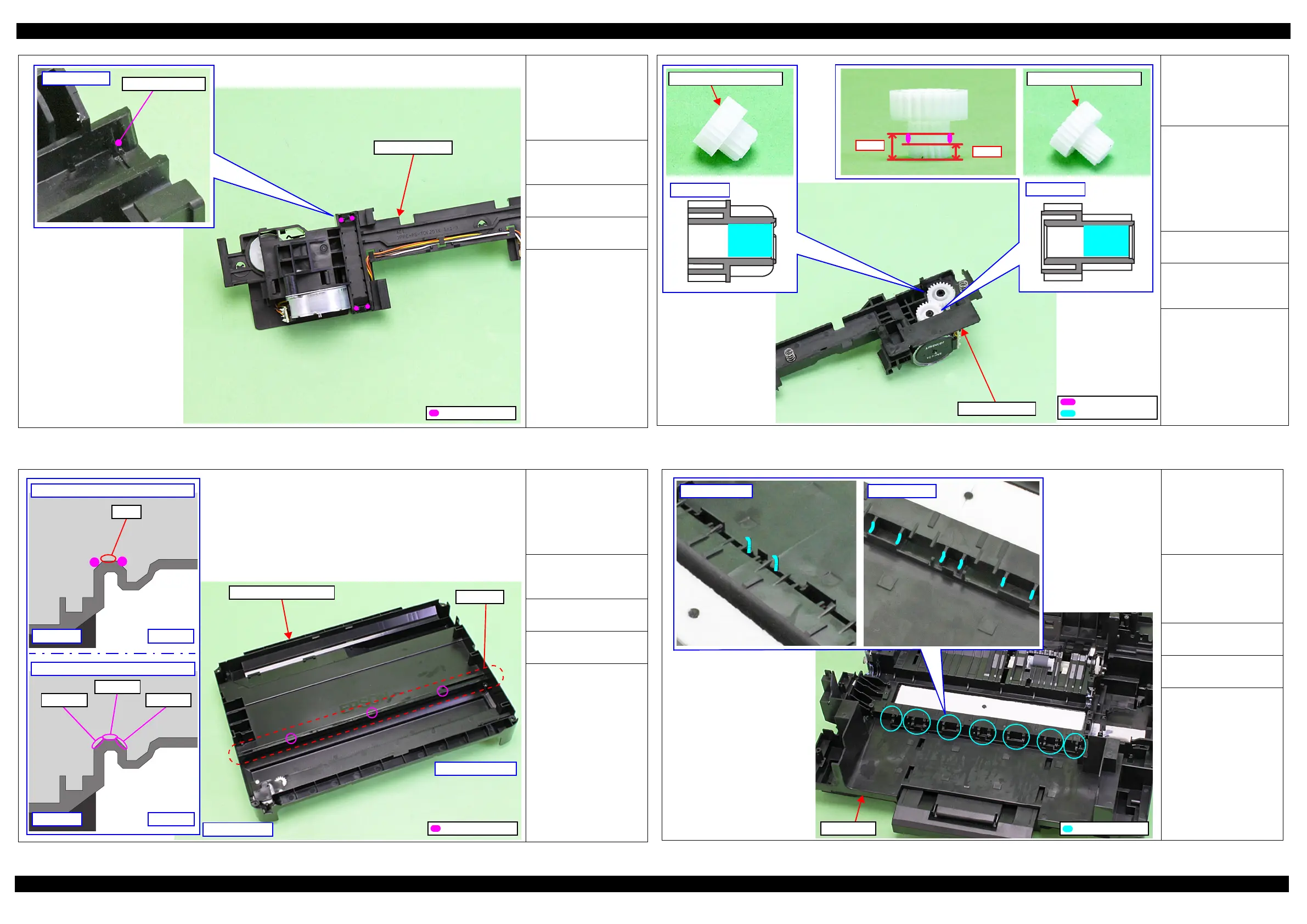

Figure 4-5. Lubrication of the Scanner Carriage (2)
<Part supply as ASP>
Supplied as the Scanner
Unit
<Lubrication status when
supplied as ASP>
Lubricated
<Lubrication Point>
On gap (x4) on the bottom
of the Scanner Carriage
<Type>
G-45
<Application Amount>
0.01 g x 4 points
<Remarks>
Apply grease on inner
on the groove
Be careful not to let
grease flow over.
Scanner Carriage
Apply on the groove
Enlarged figure
Application Point
Figure 4-6. Lubrication of Combination Gear 14.4.9.66/Combination Gear 19.2.10.8
<Part supply as ASP>
Supplied as the Scanner Unit
<Lubrication status when
supplied as ASP>
Lubricated
<Lubrication Point>
1.
Gear sections (x2) on the
Pinion Gear of the
Combination Gear 18.4.9.66
2.
Shaft hole of the
Combination Gear 18.4.9.66
3.
Shaft hole of the
Combination Gear 19.2.10.8
<Type>
G-45
<Application Amount>
1. 0.01 g x 2 points
2.3. 0.01 g
<Remarks>
1. Apply with injector.
2.3. After applying with
injector, spread it over
the entire inner surface
the shaft hole shown in
the figure.
Be careful not to let
grease flow over.
1. Application Point
Cross-section
Cross-section
Combination gear 19.2,10.8 Combination gear 18.4.9.66
4 mm
6 mm
2. Application Point
Scanner Carriage
Figure 4-7. Lubrication of the Scanner Housing Lower
<Part supply as ASP>
Supplied as the Scanner
Unit
<Lubrication status when
supplied as ASP>
Lubricated
<Lubrication Point>
Guide rail of the Scanner
Housing Lower (x6)
<Type>
G-45
<Application Amount>
0.03 g x 6 points
<Remarks>
Do not apply directly on
the head of the Guide
rail.
Apply with injector.
Be careful not to let
grease flow over.
Keep the grease
spreading procedures.
Origin position side
Drive Gear side
Guide rail
Scanner Housing Lower
Application Point
Guide rail Cross-section: Application Point
Head
Front side Rear side
Grease spreading procedure
After applying the grease, follow the procedure below to spread it with brus
1. Spread the grease from the center of the Guide rail to the origin position
side with brush.
2. Spread the grease for the Guide rail A from the Drive Gear side to the
origin position side with brush.
3. Spread the grease for the Guide rail B from the origin position side to the
Drive Gear side with brush.
4. Spread the grease for the Guide rail C from the Drive Gear side to the
origin position side with brush.
Guide rail Cross-section: Spreading procedure
Section A
Section B Section C
Front side Rear side
Figure 4-8. Lubrication of the Frame Base (1)
<Part supply as ASP>
Supplied as the Printer
Mechanism
<Lubrication status when
supplied as ASP>
Lubricated
<Lubrication Point>
Ribs (x12) and hooks (x6)
on the Frame Base
(Contact points of the EJ
Roller)
<Type>
G-74
<Application Amount>
Appropriate amount
<Remarks>
Apply with flux
dispenser.
Stir G-74 before use.
Rear side: Hook Front side: Rib
Frame Base
Application Point
To Next Page
