Epson L565 Service Manual

L565/L566 Series Revision A
Confidential
Maintenance Lubrication Points and Instructions 75

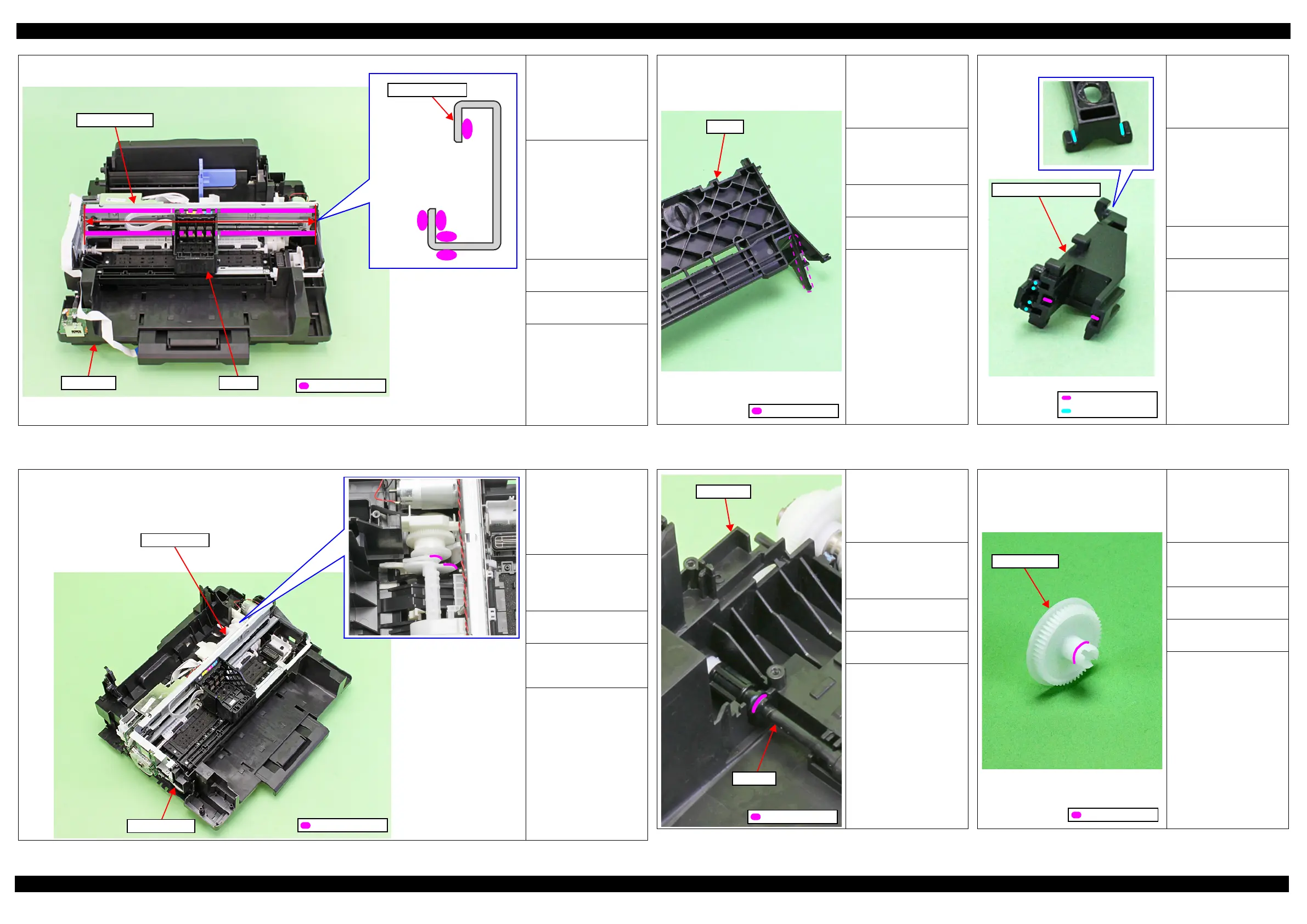

Figure 4-12. Lubrication of the Main Frame Assy
<Part supply as ASP>
Supplied as the Printer
Mechanism
<Lubrication status when
supplied as ASP>
Lubricated
<Lubrication Point>
1. Contact point (x1) on
the upper side of the
Main Frame Assy with
the CR Unit
2. Contact points (x4) on
the lower side of the
Main Frame Assy with
the CR Unit
<Type>
G-71
<Application Amount>
Appropriate amount
<Remarks>
Apply with injector.
Main Frame Assy
Main Frame Assy
Frame Base
CR Unit
Application Point
Figure 4-13. Lubrication of the Hopper
Figure 4-14. Lubrication of the CR Driven Pulley Assy
<Part supply as ASP>
Yes
<Lubrication status when
supplied as ASP>
Not lubricated
<Lubrication Point>
Contact point on the
Hopper with the Frame
Base
<Type>
G-74
<Application Amount>
Appropriate amount
<Remarks>
 Apply with flux
dispenser.
 Stir G-74 before use.
Hopper
Application Point
<Part supply as ASP>
None
<Lubrication status when
supplied as ASP>
---
<Lubrication Point>
1.
On the bearings (x2) of the
CR Driven Pulley on the
CR Driven Pulley Holder
2. Contact points (x6) on
the groove of the CR
Driven Pulley Holder
with the Main Frame
<Type>
G-71
<Application Amount>
Appropriate amount
<Remarks>
 Apply with injector.
 Check the lubrication
condition and apply
grease if necessary.
CR Driven Pulley Holder
2. Application Point
1. Application Point
Figure 4-15. Lubrication of the LD Roller Assy
<Part supply as ASP>
Supplied as the LD Roller
Shaft
<Lubrication status when
supplied as ASP>
Not lubricated
<Lubrication Point>
Cam of the contact point
with the Hopper/Paper
Back Lever (x2)
<Type>
G-71
<Application Amount>
φ 1 mm x Appropriate
amount
<Remarks>
 Apply with injector.
 Apply before attaching
the LD Roller Assy.
 After applying to the
specified position,
rotate the EJ Roller
Gear to spread the
grease.
LD Roller Assy
EJ Roller Gear
Application Point
Figure 4-16. Lubrication of the EJ Roller Figure 4-17. Lubrication of the EJ Roller Gear
<Part supply as ASP>
Yes
<Lubrication status when
supplied as ASP>
Not lubricated
<Lubrication Point>
Contact point (x1 on the
shaft) on the EJ Roller with
the Frame Base
<Type>
G-71
<Application Amount>
0.06 g
<Remarks>
 Apply with injector.
 Lubricate before
attaching the part.
Frame Base
EJ Roller
Application Point
<Part supply as ASP>
Yes
<Lubrication status when
supplied as ASP>
Not lubricated
<Lubrication Point>
Shaft on the EJ Roller
Gear
<Type>
G-71
<Application Amount>
φ 1 mm x 1 circle
<Remarks>
 Using injector, apply
grease along the tier on
the shaft.
 Lubricate before
attaching the part.
EJ Roller Gear
Application Point

Epson L565 Specifications

General

Duplex printing	No
Print technology	Inkjet
Maximum resolution	5760 x 1440 DPI
Print speed (black, normal quality, A4/US Letter)	9.2 ppm
Print speed (color, normal quality, A4/US Letter)	4.5 ppm
Maximum copy resolution	- DPI
Image formats supported	JPG
Document formats supported	PDF
Optical scanning resolution	1200 x 2400 DPI
Faxing	Color faxing
Fax memory	100 pages
Digital sender	-
Printing colors	Black, Cyan, Magenta, Yellow
Country of origin	Indonesia
Maximum duty cycle	- pages per month
Paper input type	Paper tray
Total input capacity	30 sheets
Total output capacity	100 sheets
Photo paper sizes	10x15, 13x18 cm
Paper tray media types	Plain paper
ISO A-series sizes (A0...A9)	A4, A5, A6
ISO B-series sizes (B0...B9)	B5
ISO C-series sizes (C0...C9)	C6
Maximum ISO A-series paper size	A4
Display	LCD
Control type	Touch
Product color	Black
Market positioning	Home & office
Security algorithms	128-bit WEP, 64-bit WEP, WPA-AES, WPA-PSK, WPA-TKIP
Standard interfaces	USB 2.0
Internal memory	- MB
Sound pressure level (copying)	38 dB
AC input voltage	110 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (off)	0.3 W
Power consumption (standby)	1.6 W
Power consumption (average operating)	11 W
Sustainability certificates	ENERGY STAR
Pallet width	800 mm
Pallet height	1320 mm
Pallet length	1200 mm
Pallet width (UK)	1000 mm
Quantity per pallet	12 pc(s)
Quantity per pallet (UK)	24 pc(s)
Quantity per pallet layer	2 pc(s)
Quantity per pallet layer (UK)	4 pc(s)
Package depth	563 mm
Package width	465 mm
Package height	315 mm
Package weight	9060 g
Quantity per pack	1 pc(s)

Weight and Dimensions

Depth	377 mm
Width	484 mm
Height	226 mm
