Installing the tractor in the pull position
To install a tractor in the pull position, you must install the
optional pull tractor (C80032✽
).
Note:
The tractor in the rear push position cannot be removed.
To install a tractor in the pull position, follow these steps:
1. Make sure the printer is turned off. Lift the printer cover up
and off the printer.

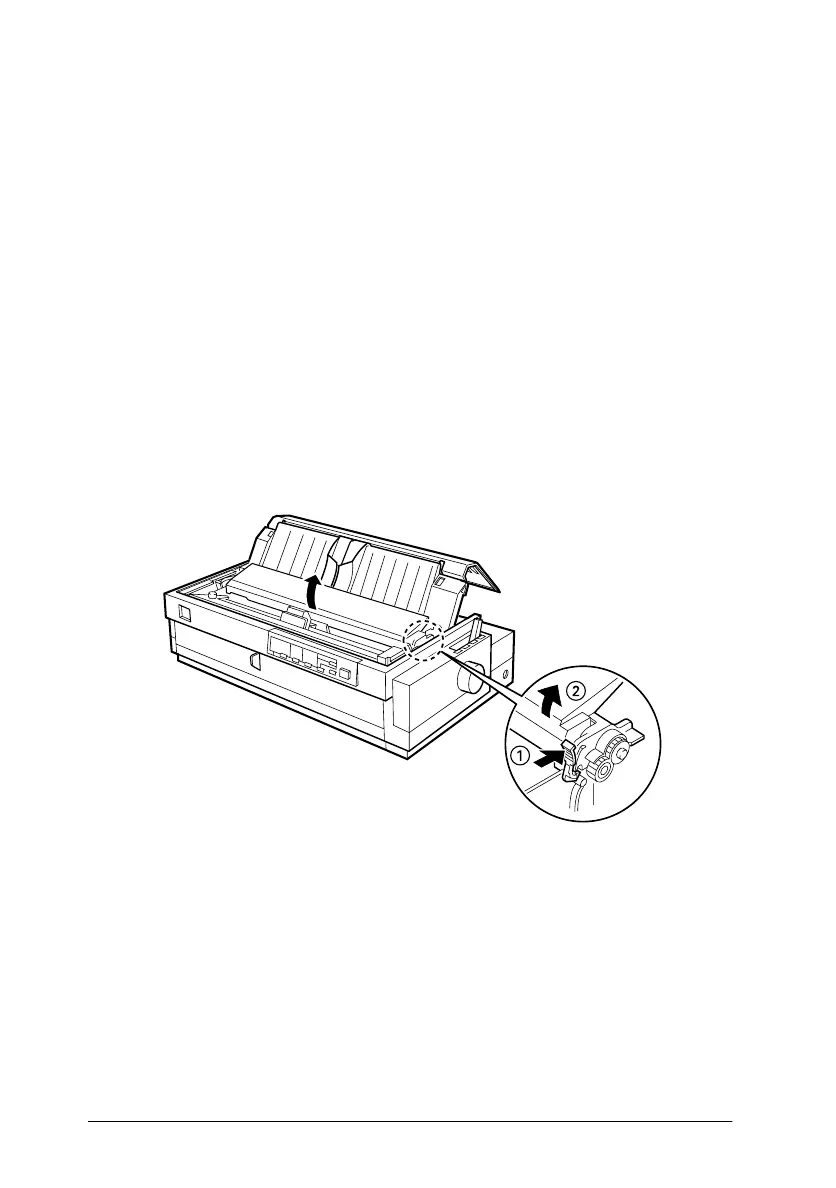

2. Push up the tabs on each side of the paper tension unit and
lift the unit up and off the printer. Store the paper tension unit
in a safe place.
