Setup & Operation 4. Setting of End Effectors
LS20-B Rev.4 37
4.2 Attaching Cameras and Valves

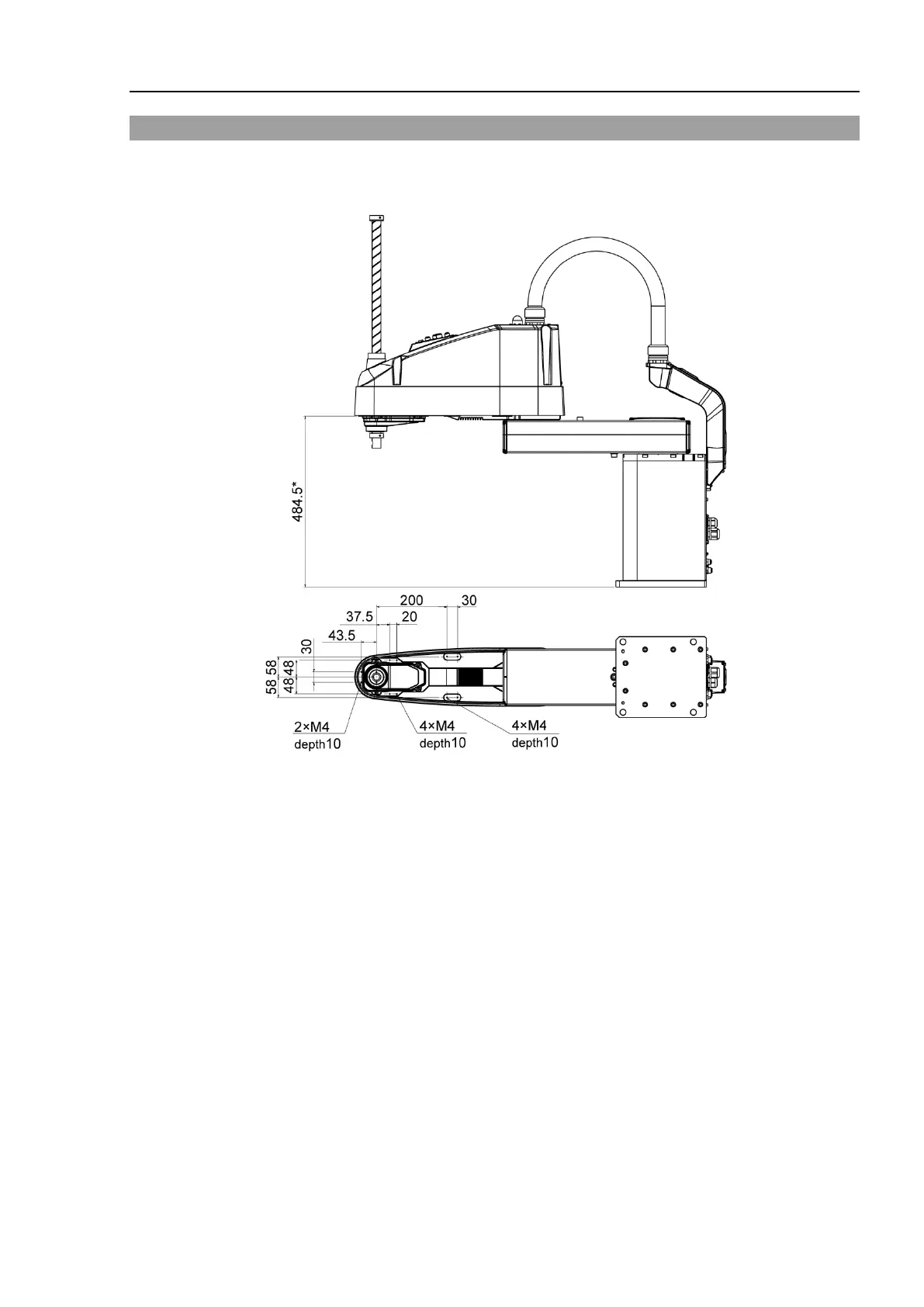

The bottom of the Arm #2 has threaded holes as shown in the figure below. Use these
holes for attaching cameras, valves, and other equipment.
[Unit: mm]
*: From base installation surface
