2. For LX-1170 users, remove the paper tension unit by squeezing the tension unit’s
lock tabs gently and pull the tension unit away from the printer.

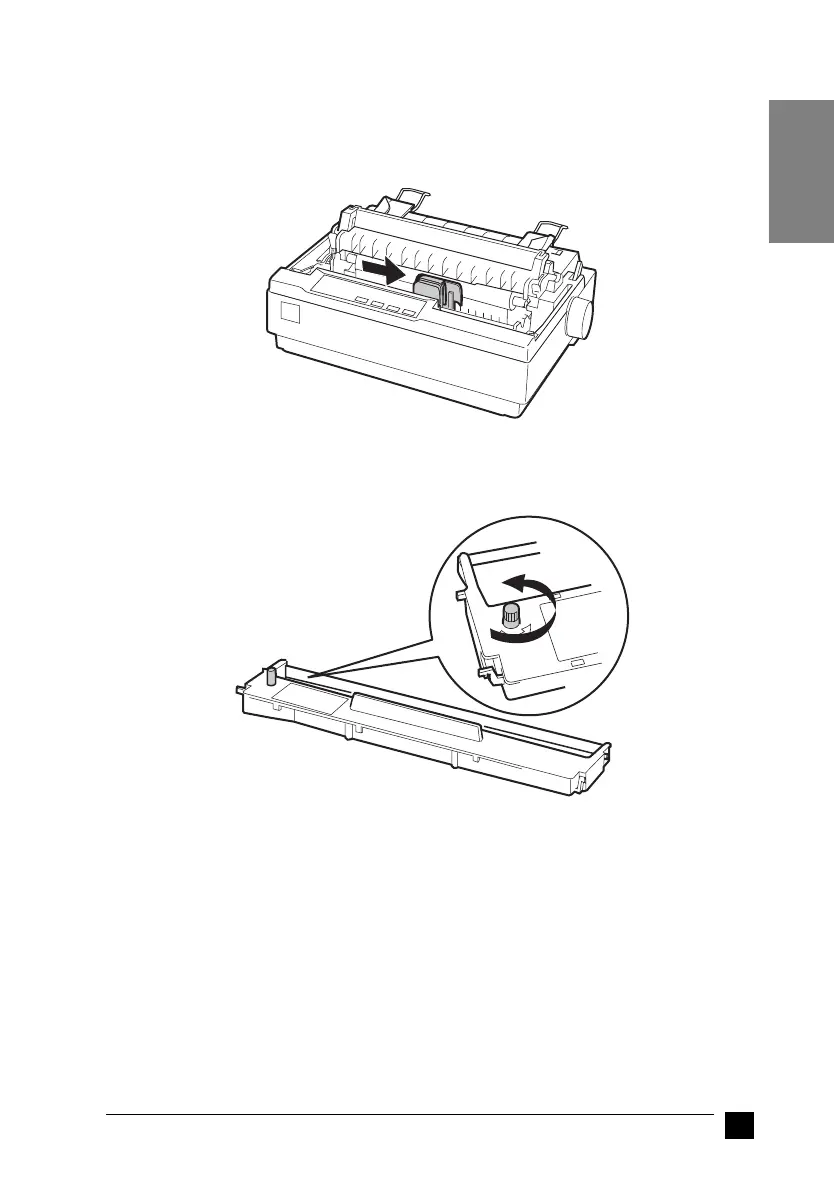

3. Slide the print head to the middle of the printer.
4. Turn the ribbon-tightening knob in the direction of the arrow to remove any slack
from the ribbon so it is easier to install.

Epson LX-300+ Specifications

General

Emulation	Epson ESC/P, IBM PPDS
Print Method	9-pin, impact dot matrix
Interface	Parallel
Paper Handling	Friction feed
Dimensions	366 x 275 x 159 mm
Paper Width	4 - 10 inches
