Epson Perfection

User's Manual Scanner Epson Perfection
PUB-119 Rev B.doc 6

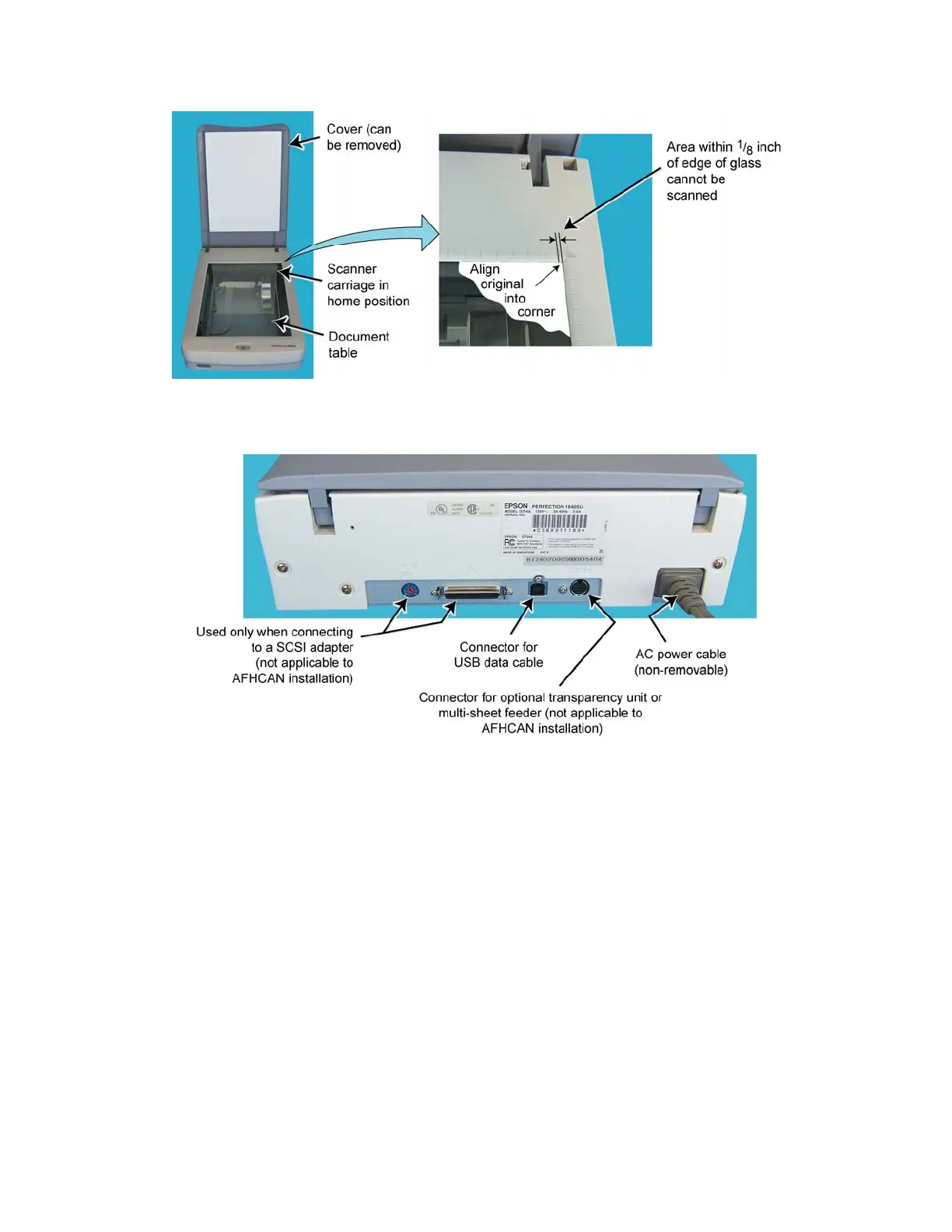

Figure 3
Model 1640 document table and scanner cover
Figure 4
Rear view of 1640
1.1.2.2 Model 1650 Hardware Features
Figure 5 shows the main hardware features of the Model 1650. The indicator light on the
scanner's start button is active in the AFHCAN installation. Table 4 lists the significance of the
indicator light.
