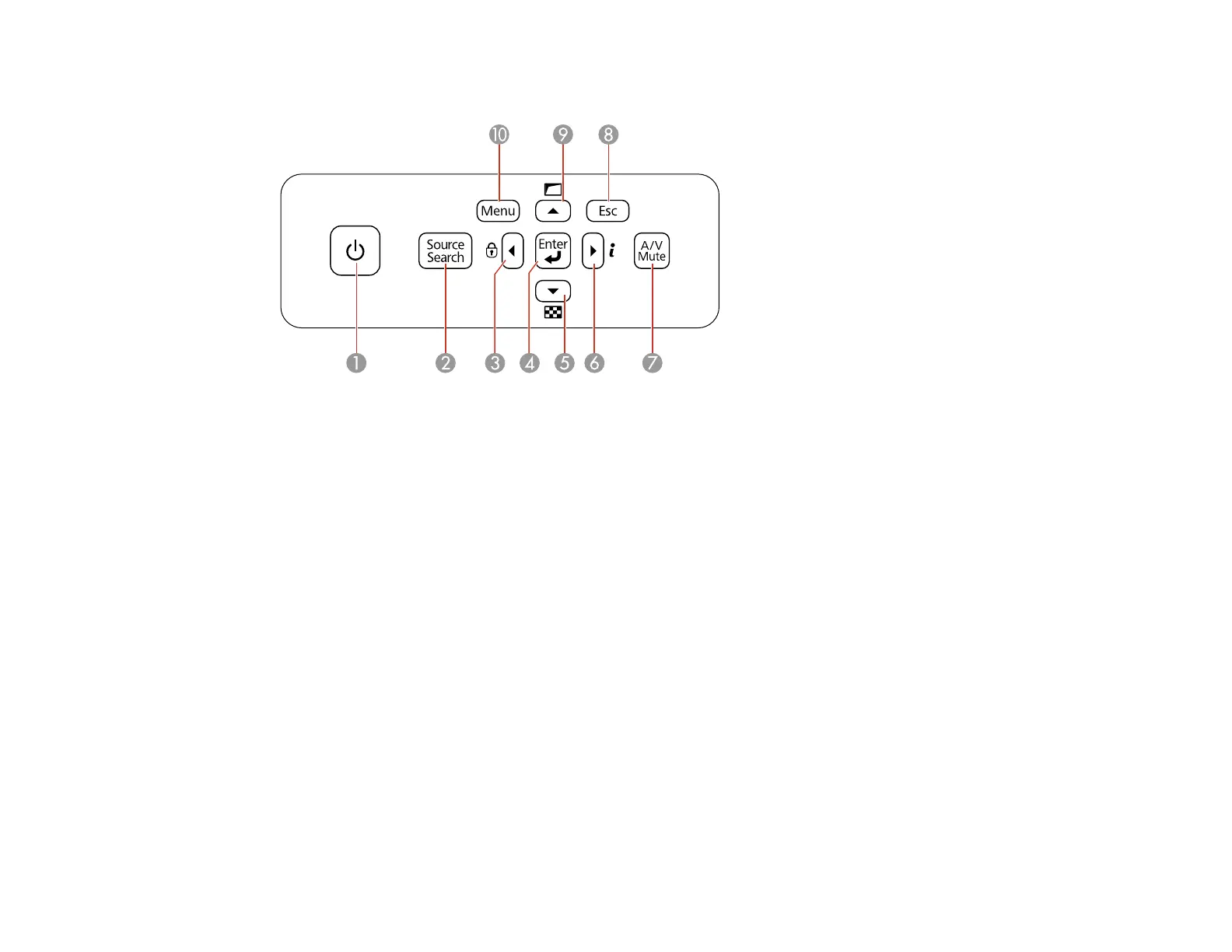

Projector Parts - Control Panel
1 Power button
2 Source Search button (searches for connected sources)
3 Left arrow button and displays the Control Panel Lock screen
4 Enter button (selects options and optimizes screen image when projecting an RGB signal from
the Computer or BNC ports)
5 Down arrow button and displays a test pattern
6 Right arrow button and displays the Info menu
7 A/V Mute button (turns the video and audio on or off)
8 Esc button (cancels/exits functions)
9 Up arrow button and displays screen adjustment options
10 Menu button (accesses projector menu system)
Parent topic: Projector Part Locations
Related references
Projector Light Status
