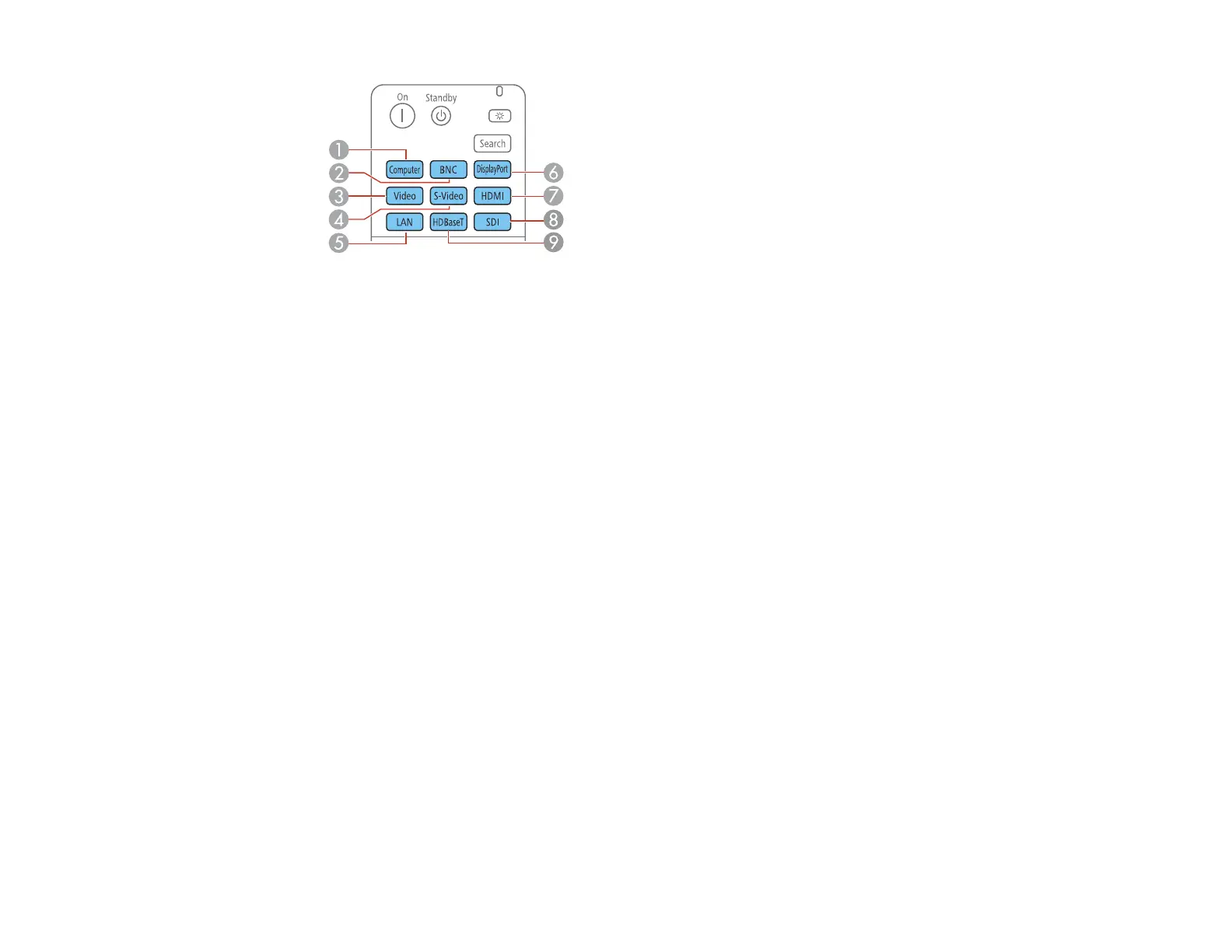

1 Computer port source
2 BNC port source
3 Video port source (composite video)
4 S-Video port source
5 Networked computer source
6 DisplayPort source
7 HDMI port source
8 SDI port source (not available)
9 HDBaseT port source (not available)
Parent topic: Using Basic Projector Features
Projection Modes
Depending on how you positioned the projector, you may need to change the projection mode so your
images project correctly.
• Front (default setting) lets you project from a table in front of the screen.
• Front/Ceiling flips the image over top-to-bottom to project upside-down from a ceiling or wall mount.
• Rear flips the image horizontally to project from behind a translucent screen.
• Rear/Ceiling flips the image over top-to-bottom and horizontally to project from the ceiling and behind
a translucent screen.
You can change the projection mode using the remote control or by changing a menu setting.
93
