23
5 Illumination sensor
6 Front foot hole
Parent topic: Projector Part Locations

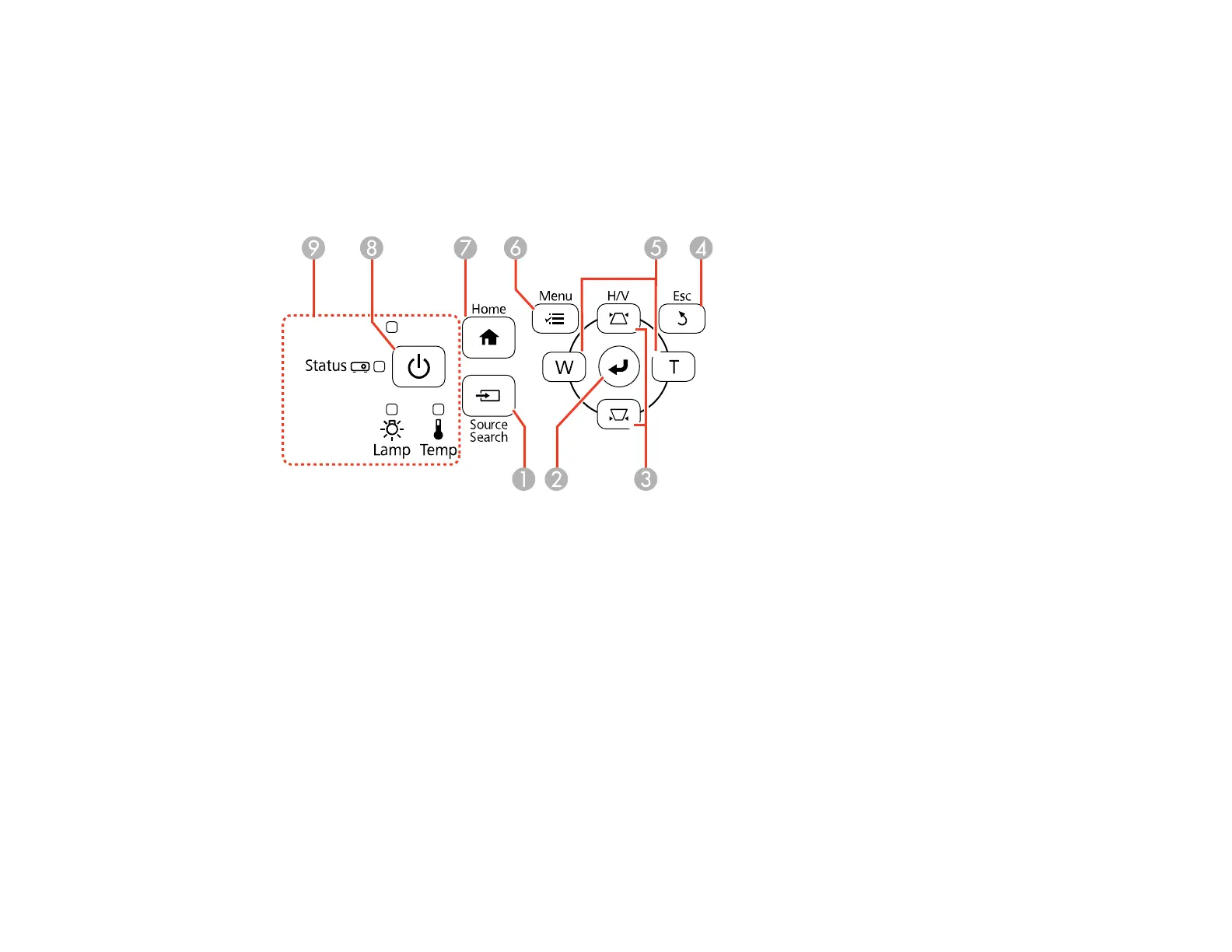

Projector Parts - Control Panel
1 Source Search button (searches for connected video sources)
2 Enter button (selects options)
3 Horizontal/Vertical keystone adjustment buttons (display the adjustment screen and adjust screen
shape) and arrow buttons
4 Esc button (cancels/exits functions)
5 W/T buttons (Wide/Tele; adjust projected image size) and arrow buttons
6 Menu button (accesses projector menu system)
7 Home button (displays home screen)
8 Power button
9 Projector status lights (power, Status, Lamp, and Temp)
Parent topic: Projector Part Locations
