Epson PowerLite E20 User Manual

135
• HDMI1 and HDMI2
• USB Display and USB/LAN
• USB and LAN

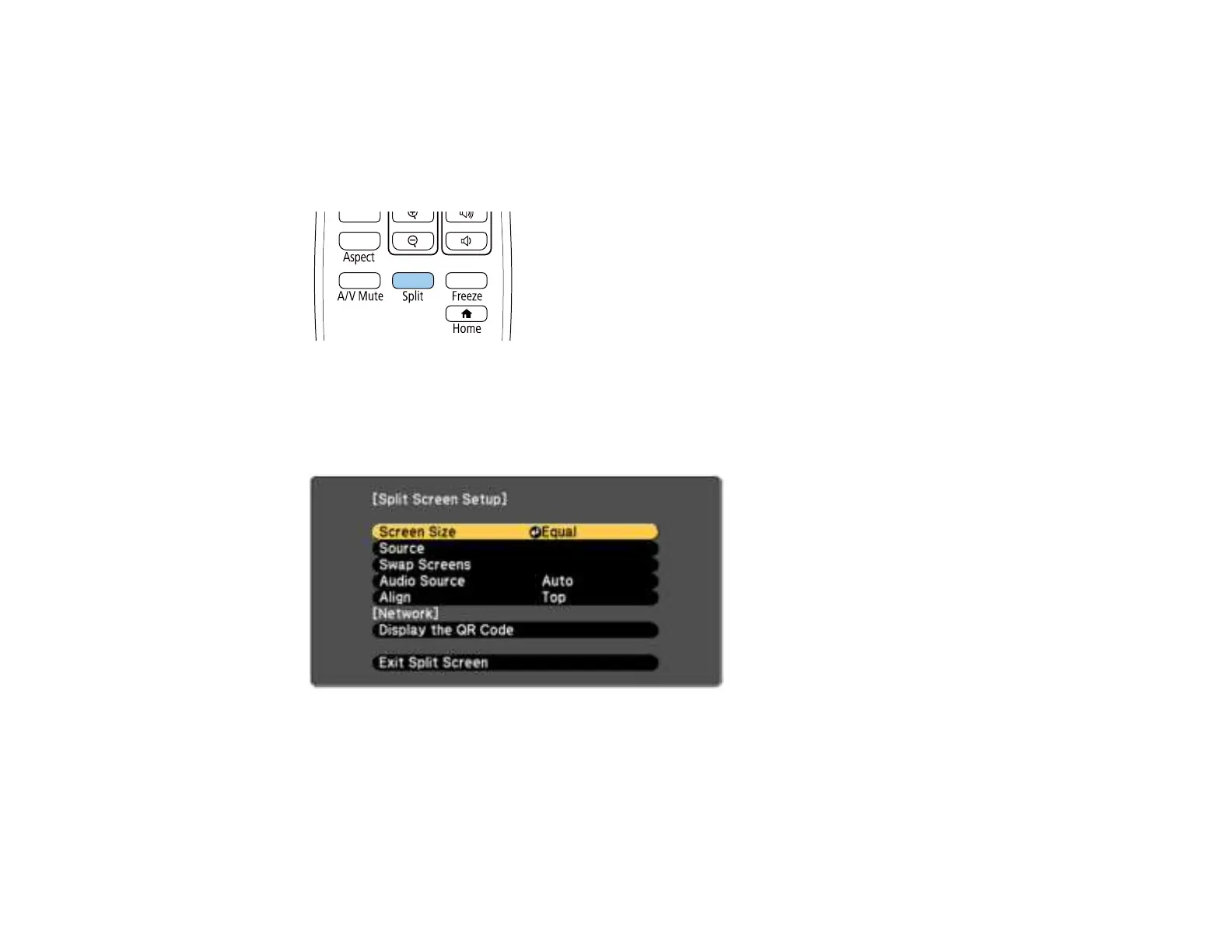

1. Press the Split button on the remote control.
The currently selected input source moves to the left side of the screen.
2. Press the Menu button.
You see this screen:
3. To select an input source for the other image, select the Source setting, press Enter, select the
input source, select Execute, and press Enter. (You can also change image sources, if necessary.)
4. To switch the images, select the Swap Screens setting and press Enter.

Epson PowerLite E20 Specifications

General

Contrast Ratio	15, 000:1
Projection Technology	3LCD
Aspect Ratio	4:3
Keystone Correction	Vertical: ±30 degrees
Speaker	2W Mono
Color Reproduction	Up to 1.07 billion colors
Lamp Life	12000 hours (Eco mode)
Zoom Ratio	1.35x
Inputs	HDMI, VGA, Composite Video, USB Type-A, USB Type-B
Projection Size	30 inches - 350 inches
Brightness	3400 Lumens (Color), 3400 Lumens (White)
Resolution	XGA (1024 x 768)
