Epson PowerLite E20 User Manual

177

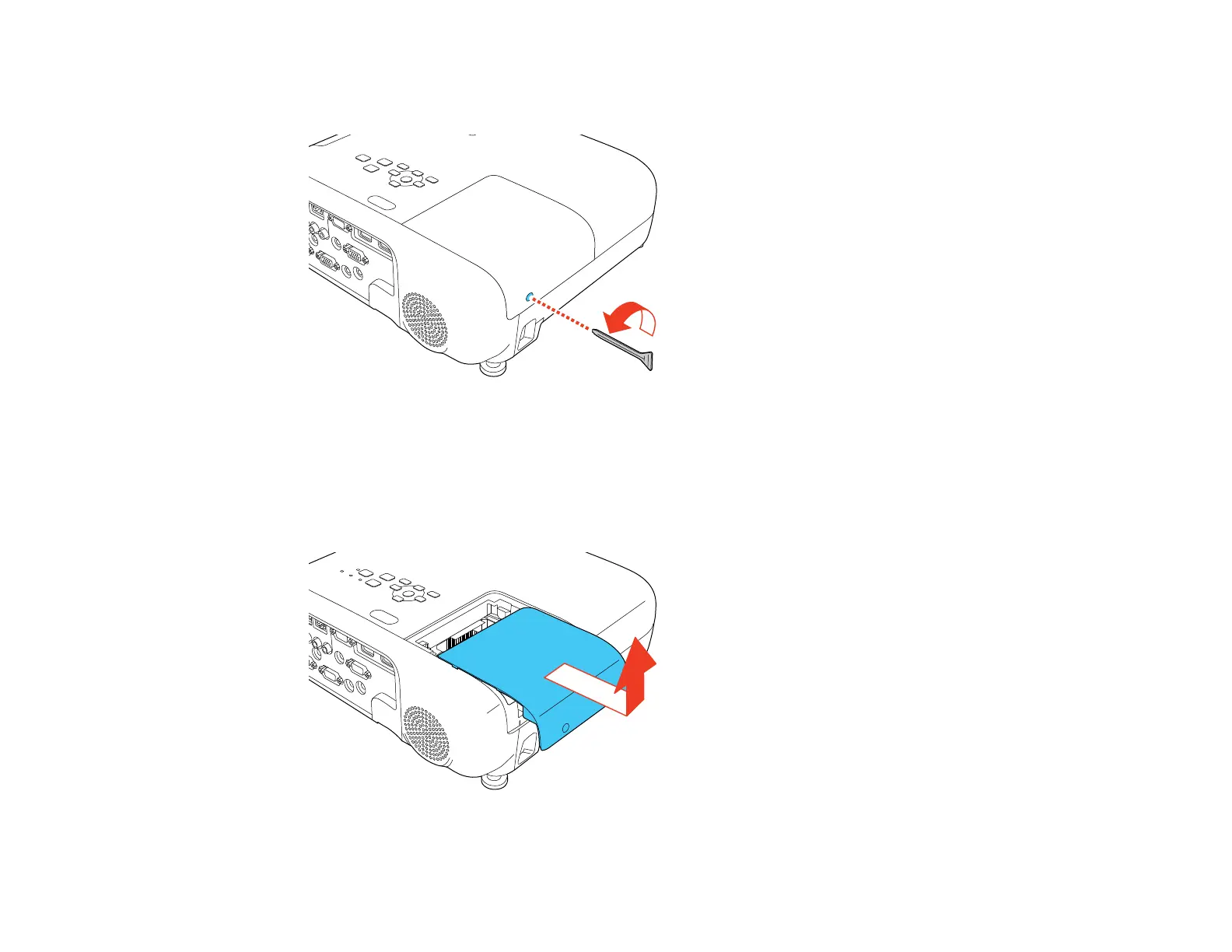

3. Use the screwdriver included with the replacement lamp to loosen the screw securing the lamp
cover.
Warning: If the lamp is broken, glass fragments may be loose inside the lamp chamber. Be careful
removing any broken glass to avoid injury. If the projector is installed on the ceiling, stand to the side
of the lamp cover and not underneath it; pieces of glass could fall into your eyes or mouth when you
open the lamp cover.
4. Slide the lamp cover out and lift it off.

Epson PowerLite E20 Specifications

General

Contrast Ratio	15, 000:1
Projection Technology	3LCD
Aspect Ratio	4:3
Keystone Correction	Vertical: ±30 degrees
Speaker	2W Mono
Color Reproduction	Up to 1.07 billion colors
Lamp Life	12000 hours (Eco mode)
Zoom Ratio	1.35x
Inputs	HDMI, VGA, Composite Video, USB Type-A, USB Type-B
Projection Size	30 inches - 350 inches
Brightness	3400 Lumens (Color), 3400 Lumens (White)
Resolution	XGA (1024 x 768)
