2. Installation
RC180 Safety and Installation Rev.18
31

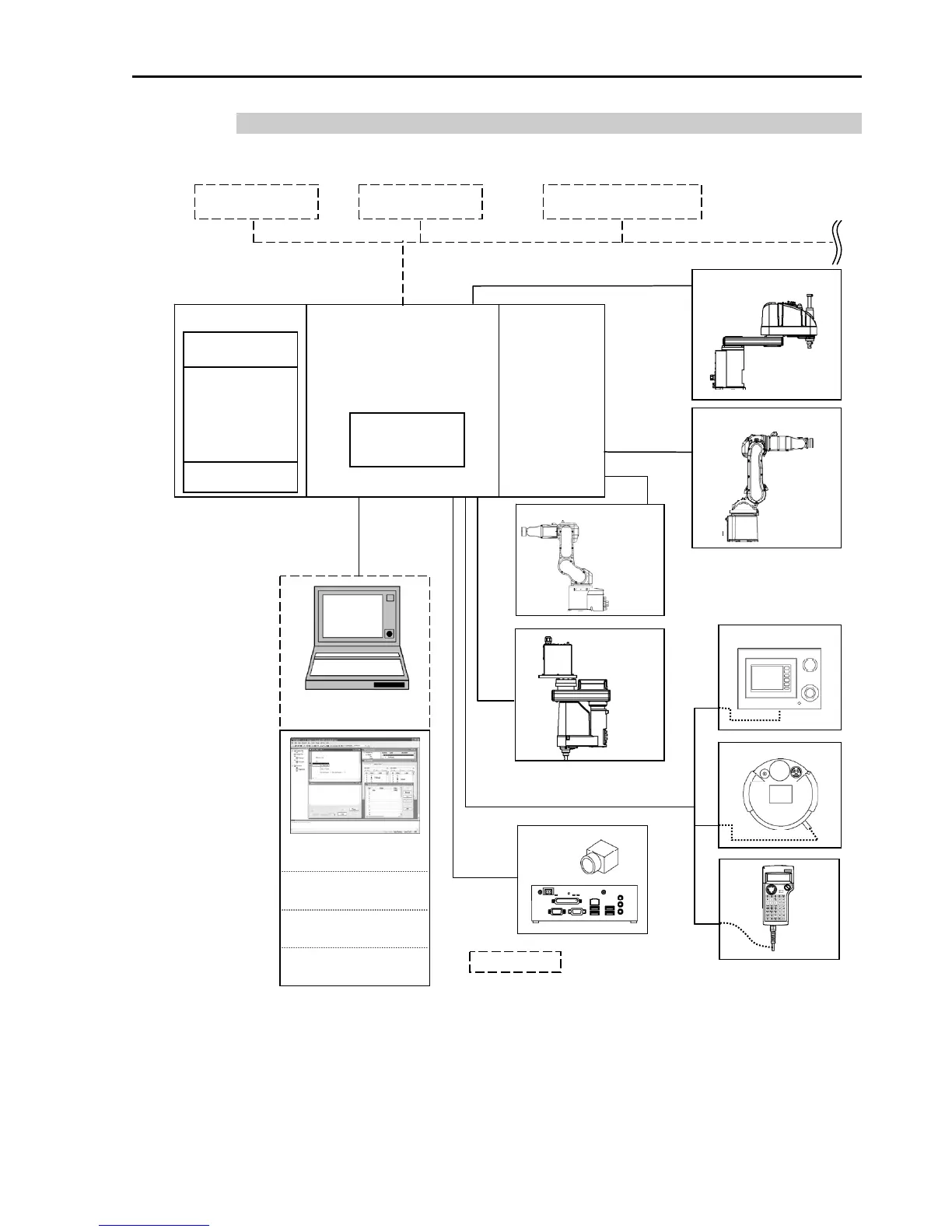

System Example
Operation Panel Motion Controller
RC180
Expansion
I/O Board
Fieldbus
- Profibus
- Devicenet
- CC-LINK
- EtherNet/IP
RS-232C Board
ProSix
Driver Unit
Option Unit
Windows *1
(XP or Vista or 7)
PC
EPSON RC+ 5.0
Software
Option
Vision Guide 5.0
Option
VB Guide 5.0
Option
GUI Builder 5.0
* Controls one of the robots.
USB2.0
or
Ethernet
TP1
- Standard I/O
- Remote I/O
- Ethernet
OP1
Standard Installation
Requires preparation by uses
*
*
CV1
Ethernet
S5 series
PLC (Sequencer)
*
C3 series
*1 EPSON RC+ 5.0 supports the following OS.
Windows XP Professional Service Pack 3 (EPSON RC+ 5.0 Ver.5.2.0 SP3 or after is required.)
Windows Vista Business Service Pack 2 (EPSON RC+ 5.0 Ver.5.3.1 or after is required.)
Windows 7 Professional (EPSON RC+ 5.0 Ver.5.3.4 or after is required.
*
RS series
TP2
(Option)
(Option)
(Option)
G series
Connect OP1, TP1, and / or TP2
