2. Installation
RC180 Safety and Installation Rev.18
67
For Protected-model
: Connect the power cable connection and the signal cable connector to the
Manipulator immediately after the Manipulator installation. The
Manipulator without connecting them may result in electric shock and/or
malfunction of the robot system as it cannot ensure IP65.

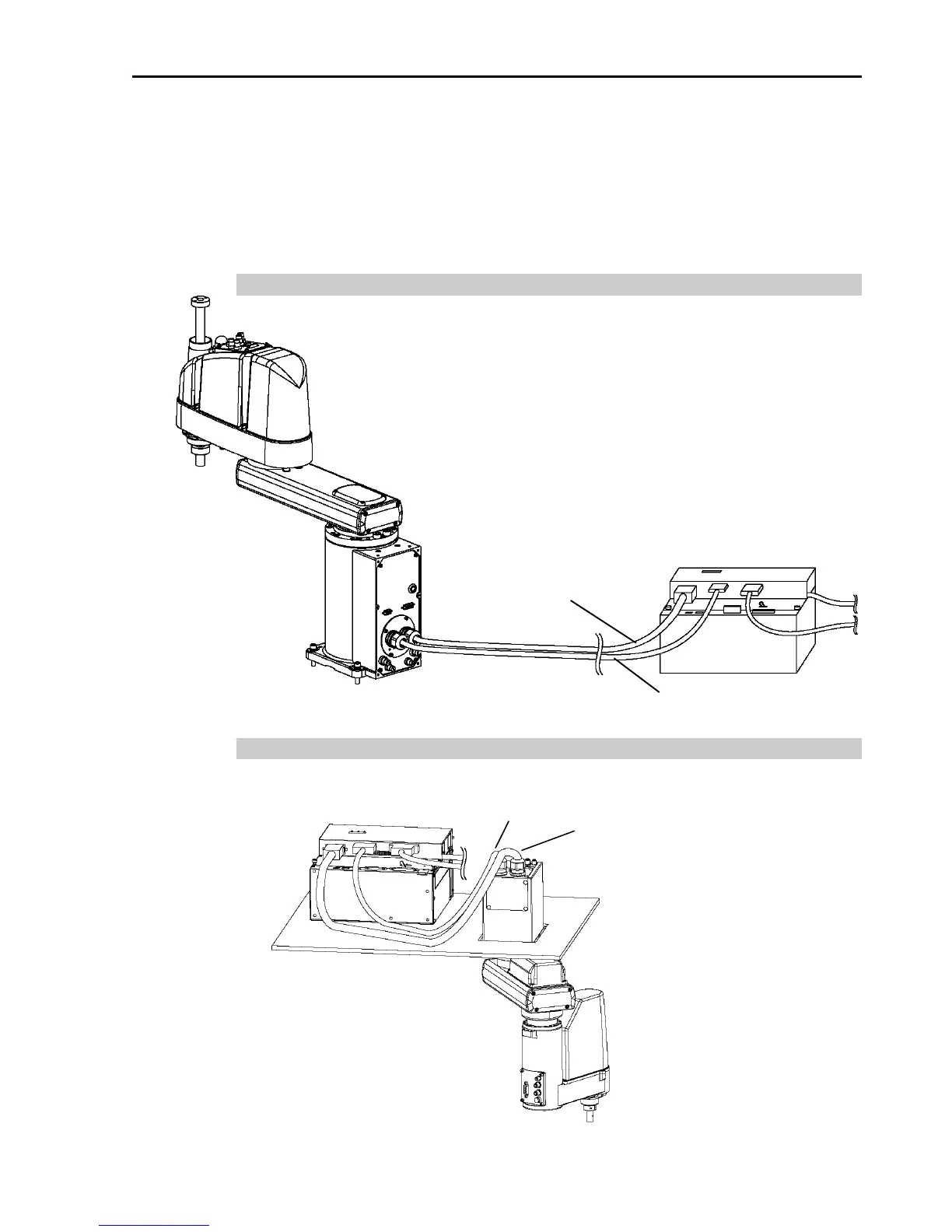

G series
G series Manipulator
(Figure: G6-553S)
Controller RC180
M/C Power Cable
M/C Signal Cable
RS series
Manipulator RS series
(Figure: RS3-351S)
Controller RC180
M/C Power cable
M/C Signal cable
