Maintenance 3. Controller Structure
8 RC700 Series Maintenance Rev.3

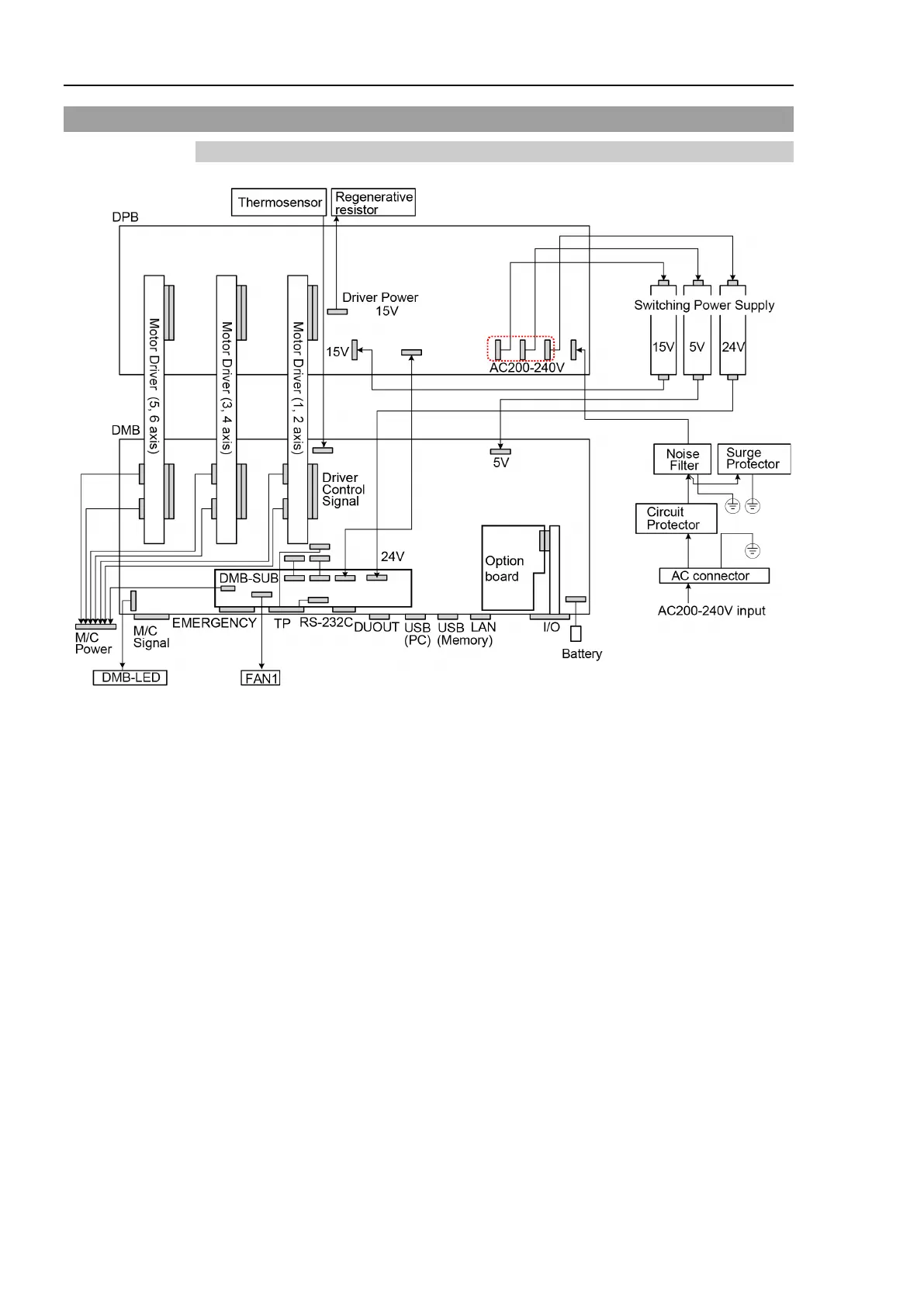

3.2 Diagram of Cable Connections
3.2.1 RC700
(Connecters in the red dotted line work properly in any order.)
