Epson RC700-A Maintenance Manual

Maintenance 8. Maintenance Parts Replacement Procedures
46 RC700 Series Maintenance Rev.3

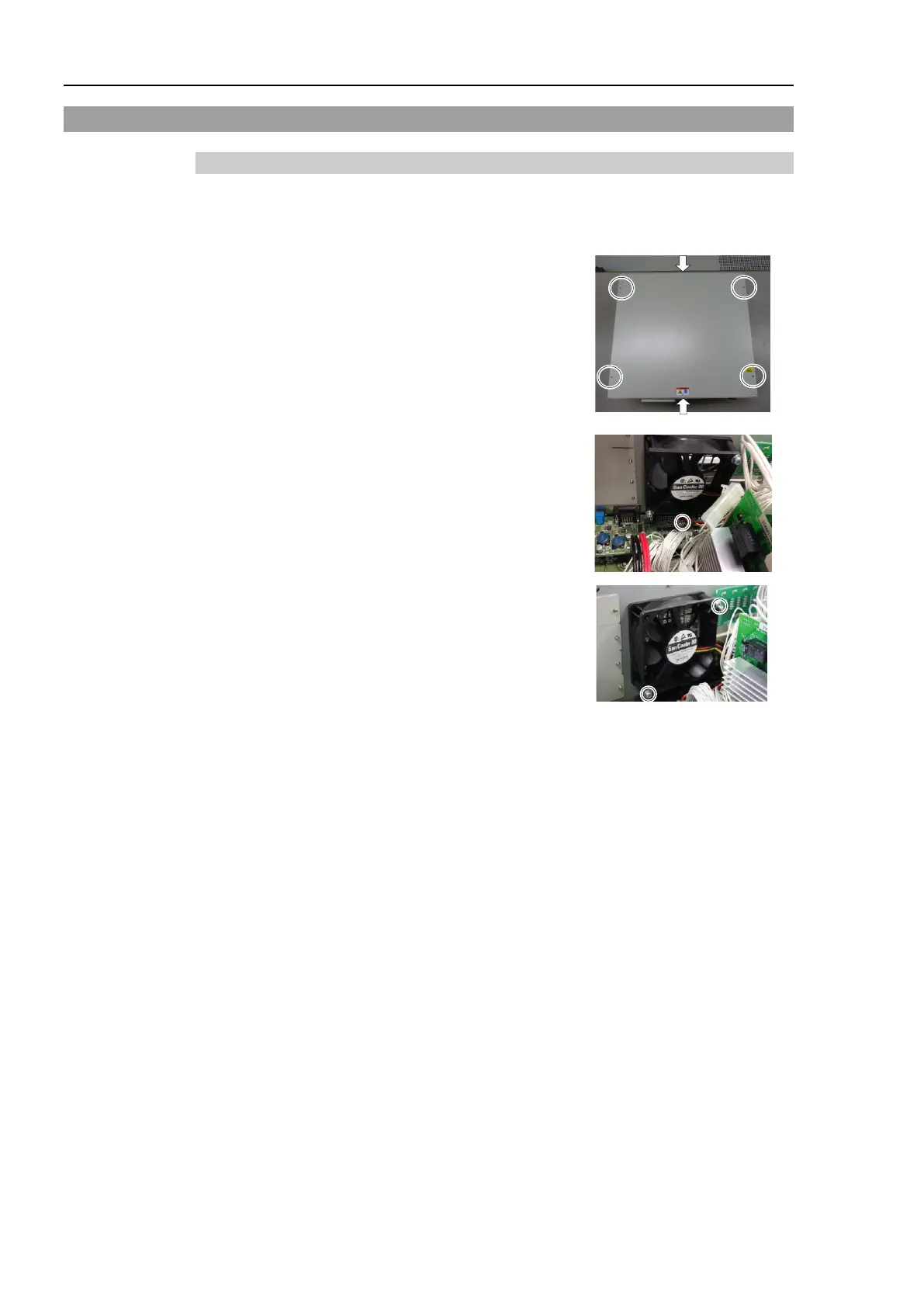

8.2 Fan
8.2.1 Front Fan
Front Fan
Removal
(1)
Turn OFF the Controller.
(2)
Disconnect the power plug.
(3)
Remove the Top Cover. (Mounting screw
×6)
(4)
Remove the fan cable from the DMB
-SUB.
Connector: CN22
(5)
Remove the screws of the fan (
×2).
(6)
Remove the fan.
Front
Fan
Installation
(1)
Mount a new fan with two screws.
At this point, tighten the screws diagonally.
Be careful of the mounting direction.
(2)
Connect the fan cables to the DMB
-SUB.
Connector: CN22
(3)
Mount
the Top Panel. (Mounting screw ×6)
(4)
Connect the power plug
. Turn ON the Controller and make sure that the
Controller
starts properly without any vibration or abnormal noise.
* Pay attention to the right and wrong sides of the fan when installing it.
