Maintenance 7. Option Parts Replacement Procedures
RC700 Series Maintenance Rev.3 37

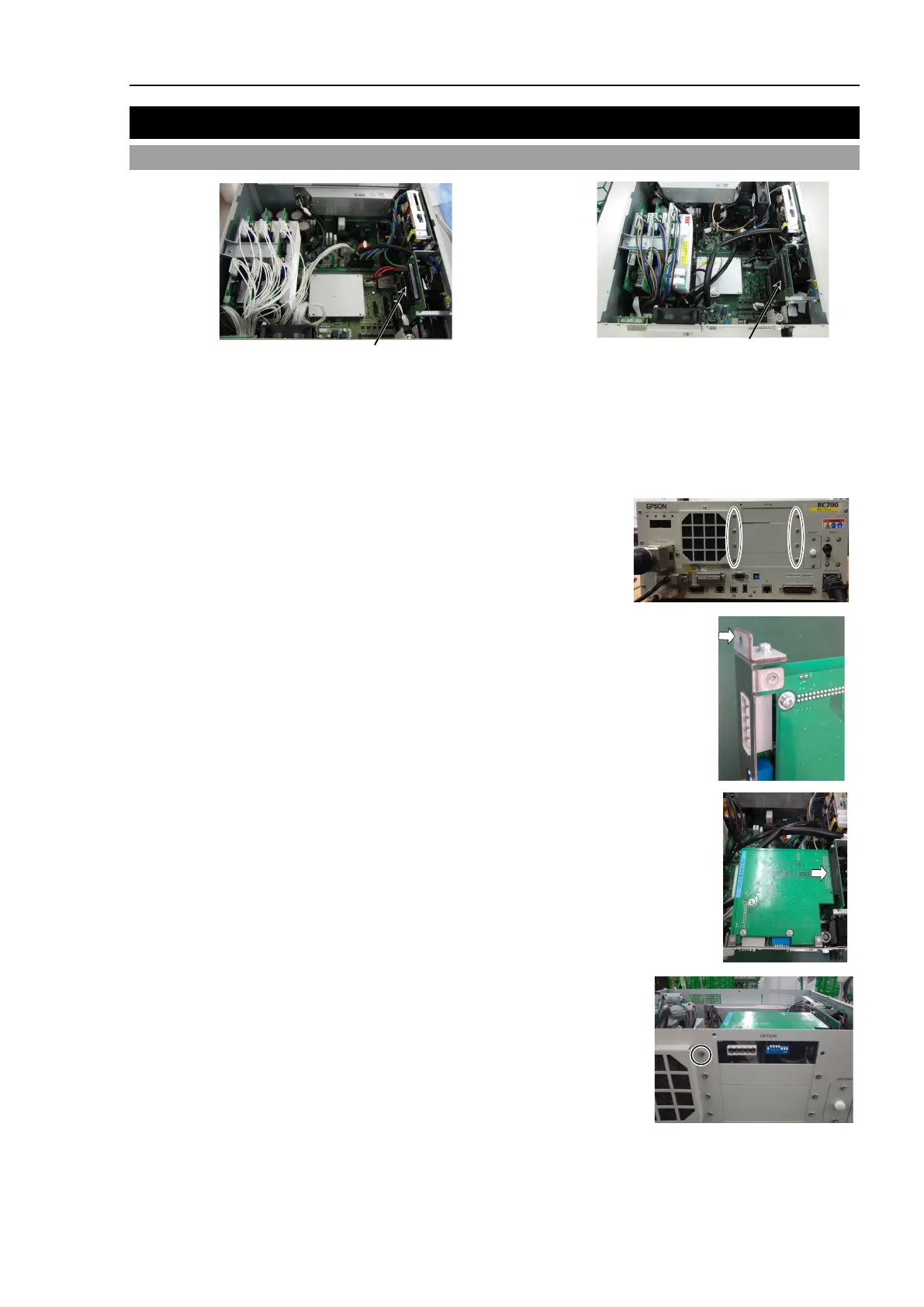

7. Option Parts Replacement Procedures
7.1 Option Board
RC700
Option Slot
RC700-A
Option Slot
Option Board
Addition
(1)
Turn OFF the Controller.
(2)
Disconnect the power plug.
(3)
Remove
the Top Panel. (Mounting screw ×6)
(4)
Remove the screws of the Option Slot Panels.
Remove as many Option Panels as the Option
Boards to add.
(5)
Mount the L
-shaped plate to the Option Board.
(6)
Install the Option Board as shown in the picture.
Insert the board to the Option Slot.
(in the direction of an arrow)
(7)
Mount the attachment L
-shaped plate with a screw
from the front side.
At this point, one screw for the Option Slot Panel is
left unused.
(8)
Mount the Top Panel. (Mounting screws
×6)
