Maintenance 8. Maintenance Parts Replacement Procedures
RC700 Series Maintenance Rev.3 47

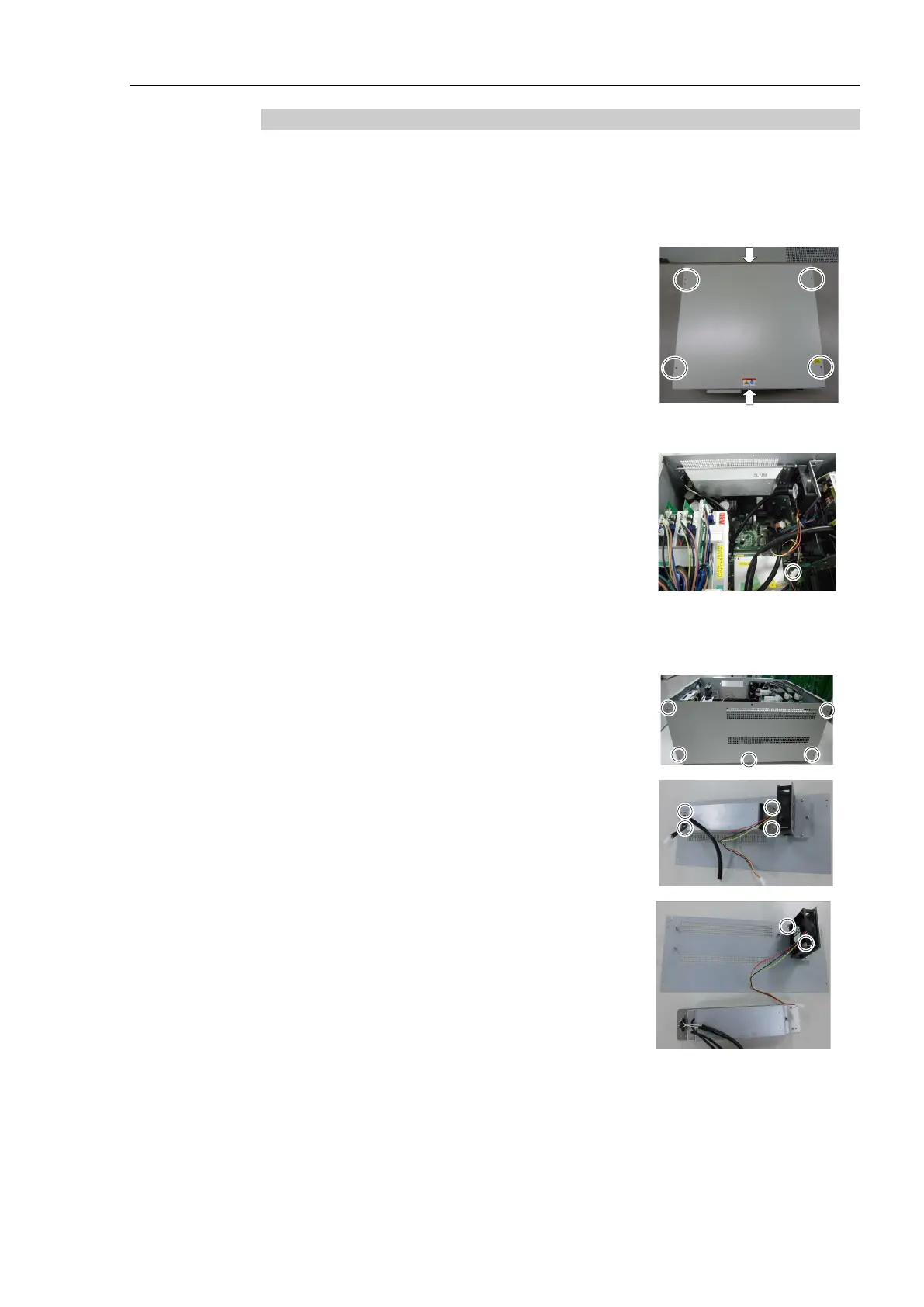

8.2.2 Fan 2 (RC700-A, RC700DU-A)
The fan 2 is installed only in RC700-A and RC700DU-A.
Fan
2
removal
(RC700
-A,
RC700DU
-A)
(1)
Turn OFF the Controller.
(2)
Disconnect the power plug.
(3)
Remove the Top Cover. (Mounting screw
×6)
(4)
Remove the cable tie binding the
15 V power supply cable and fan cable.
(5)
Remove the fan extension connector.
(6)
Remove the regenerative module connector from the DMB.
(7)
Remove the regenerative module connector from the DPB.
(8)
Remove the rear plate from the body.
(Mounting screw
×5)
(9)
Remove the regenerative resistance from the rear
plate.
(Mounting screw
×4)
(
10)
Remove the fan from the fan fixing plate.
(Mounting screw
×2)
