Epson RC700-A Maintenance Manual

Maintenance 7. Option Parts Replacement Procedures
RC700 Series Maintenance Rev.3 41
Ensure the air flow around the supply and exhaust ports, and install the Controller while
leaving space from other equipment or walls as below.
* Keep the space about 200 mm or more on the top to maintenance.

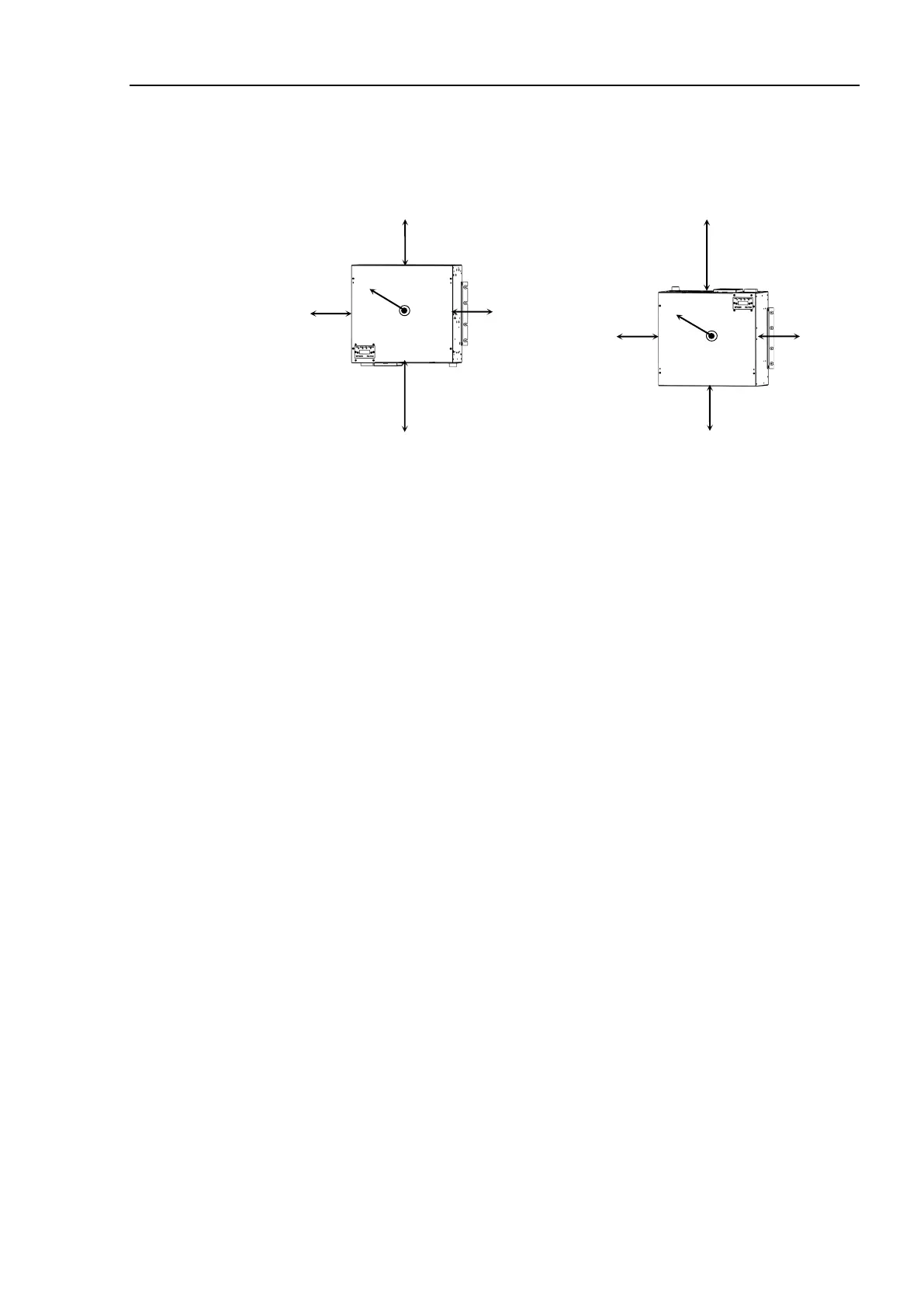

Wall mounting with the front side down
100 mm
200 mm
50 mm *
50 mm
50 mm
Wall mounting with the front side up
100 mm
200 mm
50 mm *
50 mm
50 mm
Included items of the wall mounting option
WALL FIXING BRACKET 2 brackets
LED DISPLAY FIXING PLATE 1 plate
LED DISPLAY PLATE 1 plate
Screw (M3 × 6 mm) 4 screws
Screw (M4 × 8 mm) 4 screws

Epson RC700-A Specifications

General

Brand	Epson
Model	RC700-A
Category	Controller
Language	English
