F

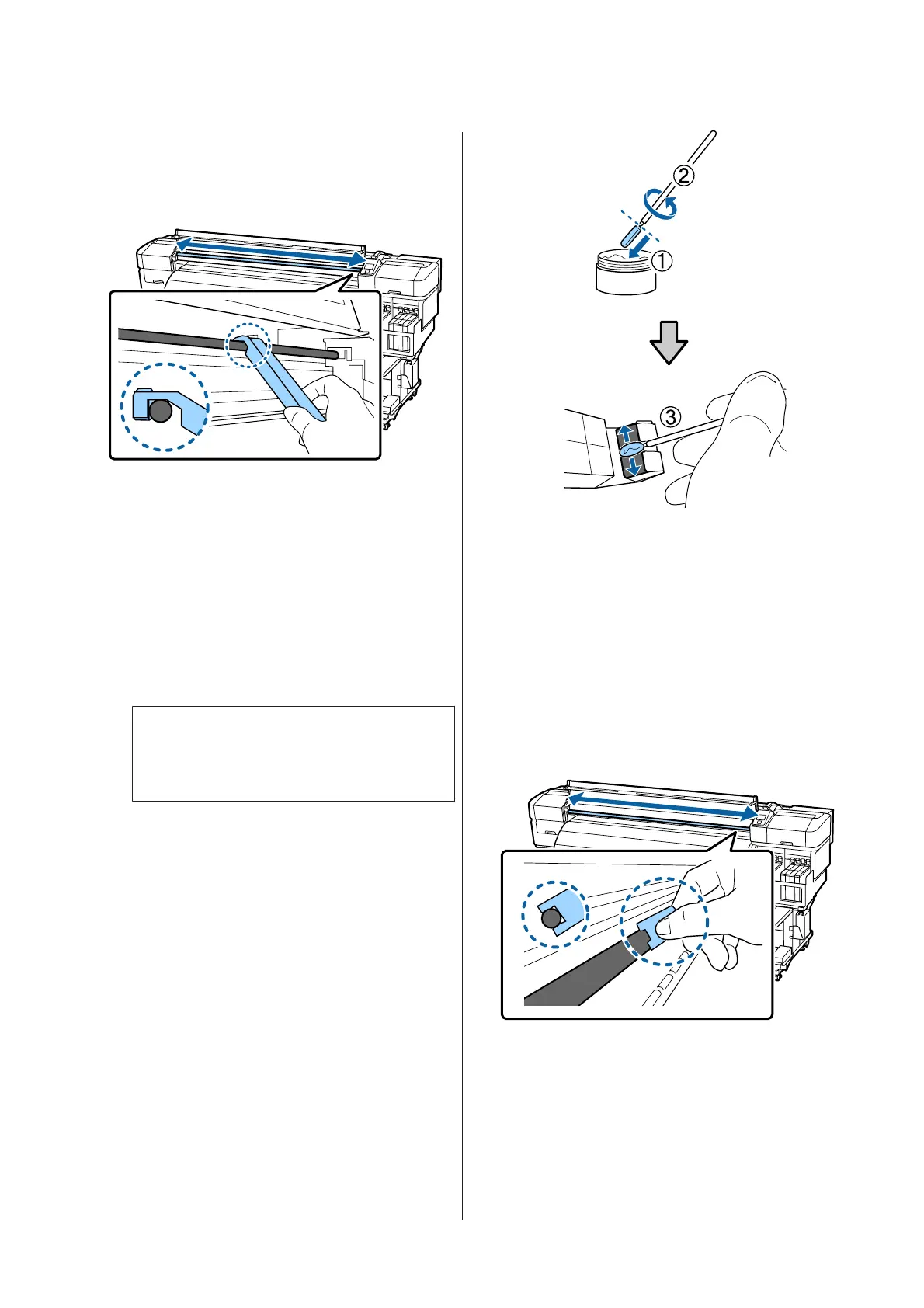

Wipe stains off carriage rod A.
As shown in the illustration, hold the grease tool
against the back of the rod and smoothly slide it
twice from one end to the other and back again.
G
Remove the stained pad from the grease tool.
H
Attach a fresh pad A to the grease tool.
I
Using a fresh cleaning stick, stir the grease in the
container about ten times.
J
Wipe the tip of the cleaning stick on the edge of
the container to remove excess grease.
c
Important:
Failure to remove the excess could result in
falling grease dirtying the platen and media.
K
Using a cleaning stick, apply grease to the pad as
described below.
(1) Fully submerge the tip of the cleaning stick in
the grease.
(2) Rotate the cleaning stick two or three times,
and then remove it.
(3) Apply the grease to the pad at the end of the
grease tool.
L
Grease carriage rod A.
Hold the grease tool against the back of the rod
and smoothly slide it twice from one end to the
other and back again as shown in Step 6.
Next, grease carriage rod B.
Carriage rod B
A
Wipe stains off carriage rod B.
As shown in the illustration, hold the new pad B
against the front of the rod and smoothly slide it
twice from one end to the other and back again.
B
Using a cleaning stick, apply grease to the new
pad B as described below.
(1) Fully submerge the tip of the cleaning stick in
the grease.
(2) Rotate the cleaning stick two or three times,
and then remove it.
SC-F9200 Series User's Guide
Maintenance
85
