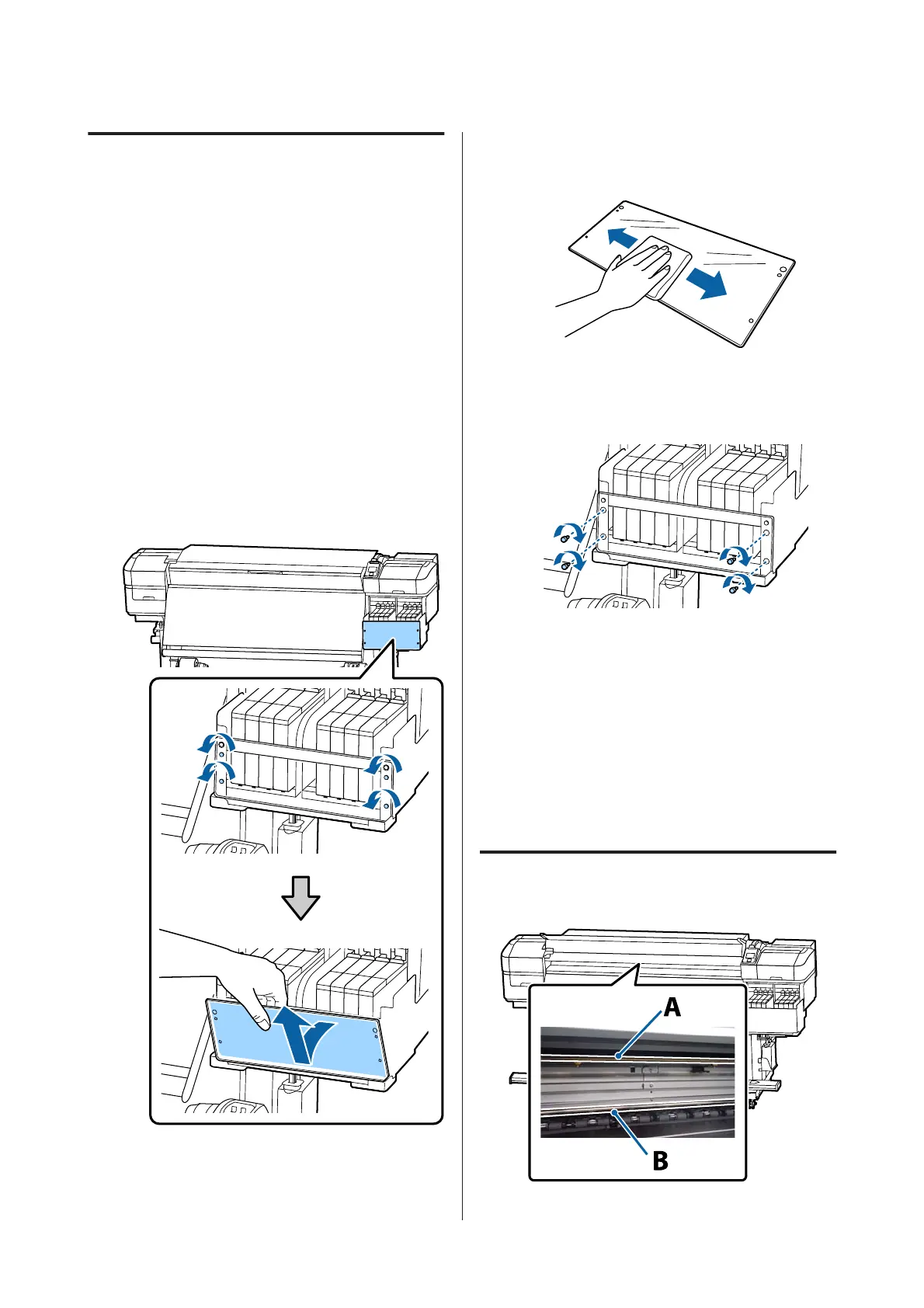

Cleaning the Heat Shield
When it becomes hard to see inside the ink tank
because ink has adhered to the heat shield, remove the
heat shield and clean it.
A Philips head screwdriver is required for the
following work. Make sure to have one prepared
before you start working.
Before starting this procedure, be sure to read the
following:
U “Precautions regarding maintenance” on page 59
A
Remove the heat shield.
Completely loosen the four screws that hold the
heat shield in place to remove the heat shield.
B
Soak a soft cloth in water, wring it out
thoroughly, and then wipe off any ink that has
adhered to the heat shield.
C
Install the heat shield.
Align the heat shield's holes with those in the
ink tank holder and tightly screw in the screws.
Applying Grease to the
Carriage Rod
When Apply secondary carriage rod grease. See
manual. is displayed on the control panel screen,
follow the steps below to apply grease to the carriage
rod as soon as possible.
Location of Carriage Rod and
Used Pad
SC-F9300 Series User's Guide
Maintenance
83
