Epson SC-F9300 series

Introduction
Printer Parts

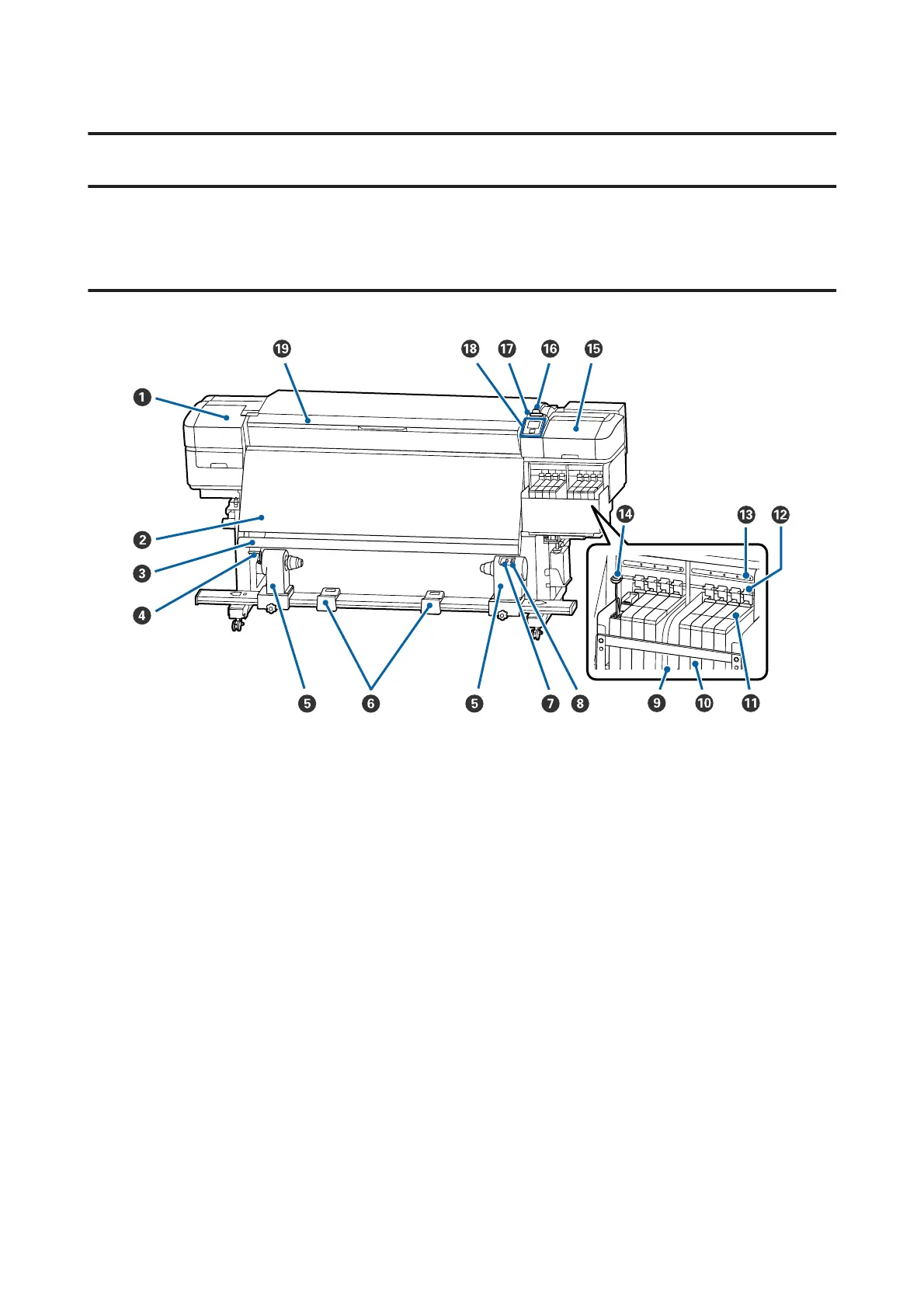

Front Section
A Maintenance cover (left)
Open this cover to clean the area around the print head. Normally closed when using the printer.
U “Cleaning Around the Print Head” on page 62
B Heater
The heater can be used to rapidly dry ink after printing.
U “Changing the Heater's Temperature” on page 50
C Media guide bar
The bar maintains tension to prevent the media sagging as it is taken up.
D Handle
After placing the roll core on the left roll core holder, rotate the handle to press the roll core holder and apply
pressure to the roll core.
