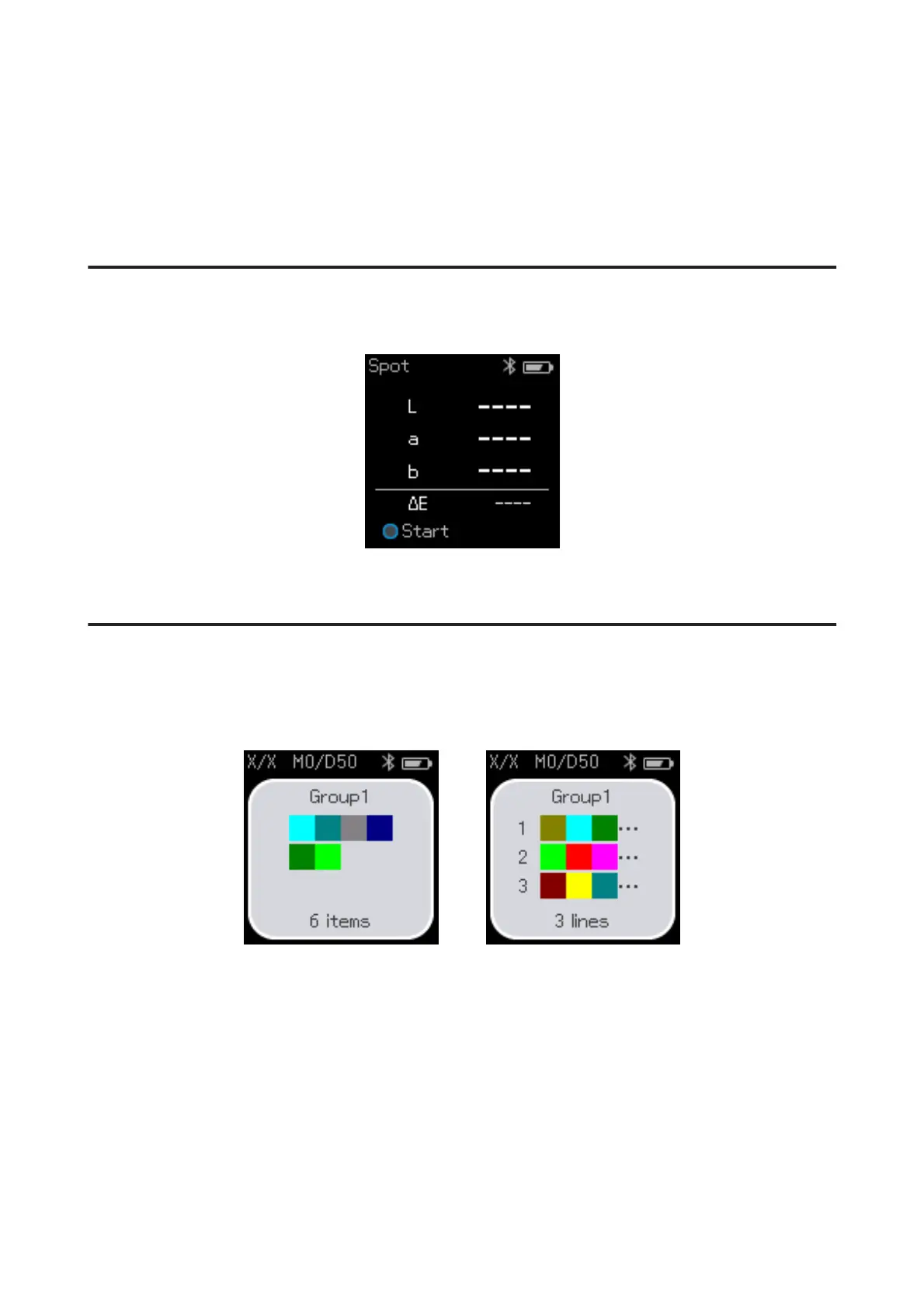

Measurement Mode and the Initial Screen
This section explains the initial screen displayed when measuring color using only this device. The following are the
typical screens displayed. The displayed content may differ depending on the situation.
Spot Mode
The color measurement screen is displayed. The device is ready to perform color measurement.
U “Spot Mode” on page 20
Comparison (Spot) Mode/Comparison (Scan) Mode
The data group selection screen is displayed. Use the navigation button to select the data group to be used as the
comparison source (reference), and then press the enter button to confirm. When the menu screen appears, press the
enter button to open the color measurement screen.
Comparison (Spot) mode Comparison (Scan) mode
U “Comparison (Spot) Mode” on page 23
U “Comparison (Scan) Mode” on page 27
Menu Screen
You can display the menu screen by pressing the back button once or several times.
SD-10 User's Guide
Basic Information Regarding the Spectrophotometer
15
To Next Page
