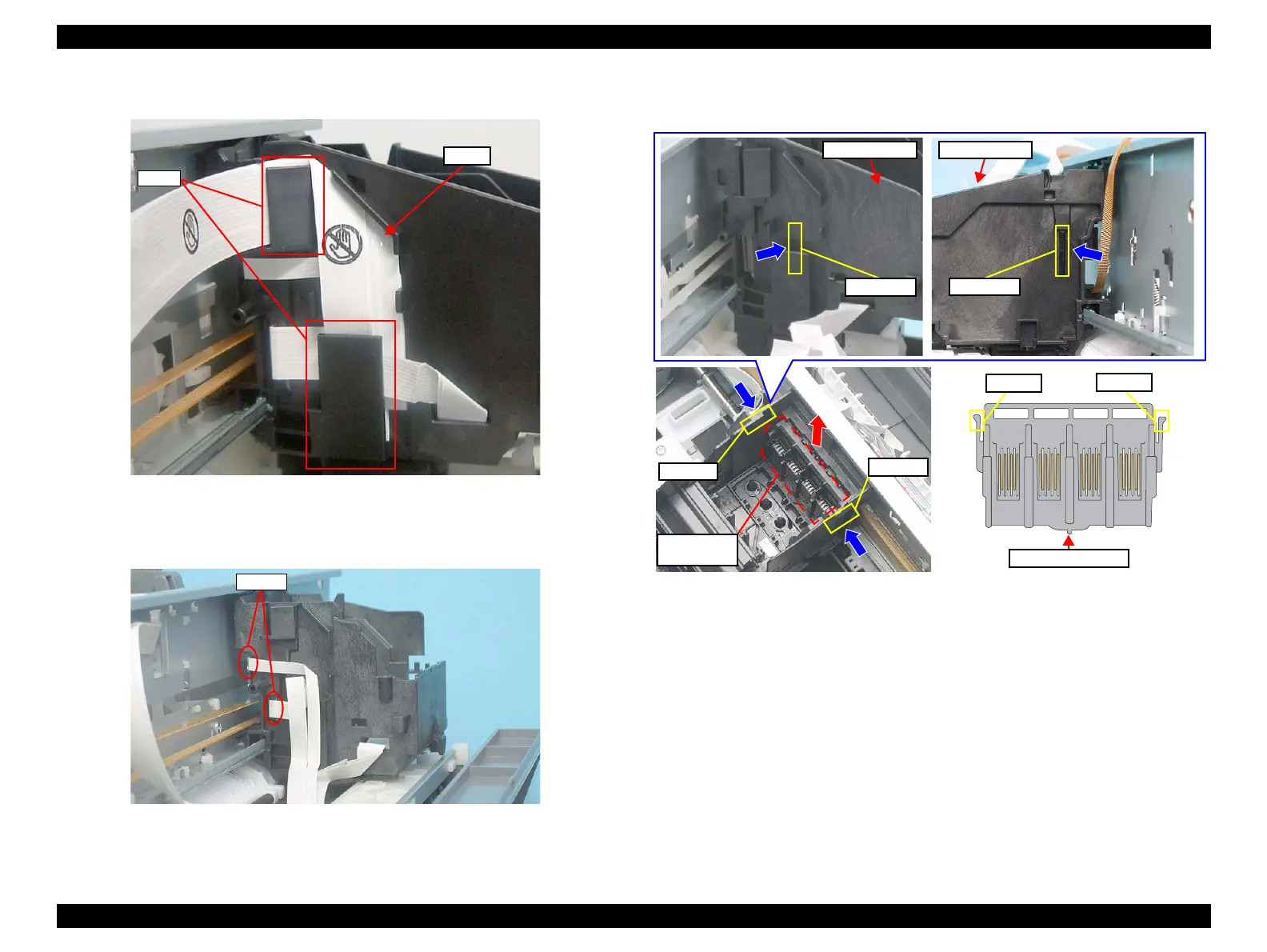

6. Release the FFC from the tabs.
Figure 4-84. Releasing FFCs from Tabs
7. Disconnect the FFCs (x2) that are connected to the CSIC Board and the CR
Encoder Board.
Figure 4-85. Disconnecting Head FFCs
8. Release the tabs (x2) that secure the Holder Board Assy, and remove the
Holder Board Assy upward.
Figure 4-86. Removing Holder Board Assy
