34 | Checking and cleaning the print head
•

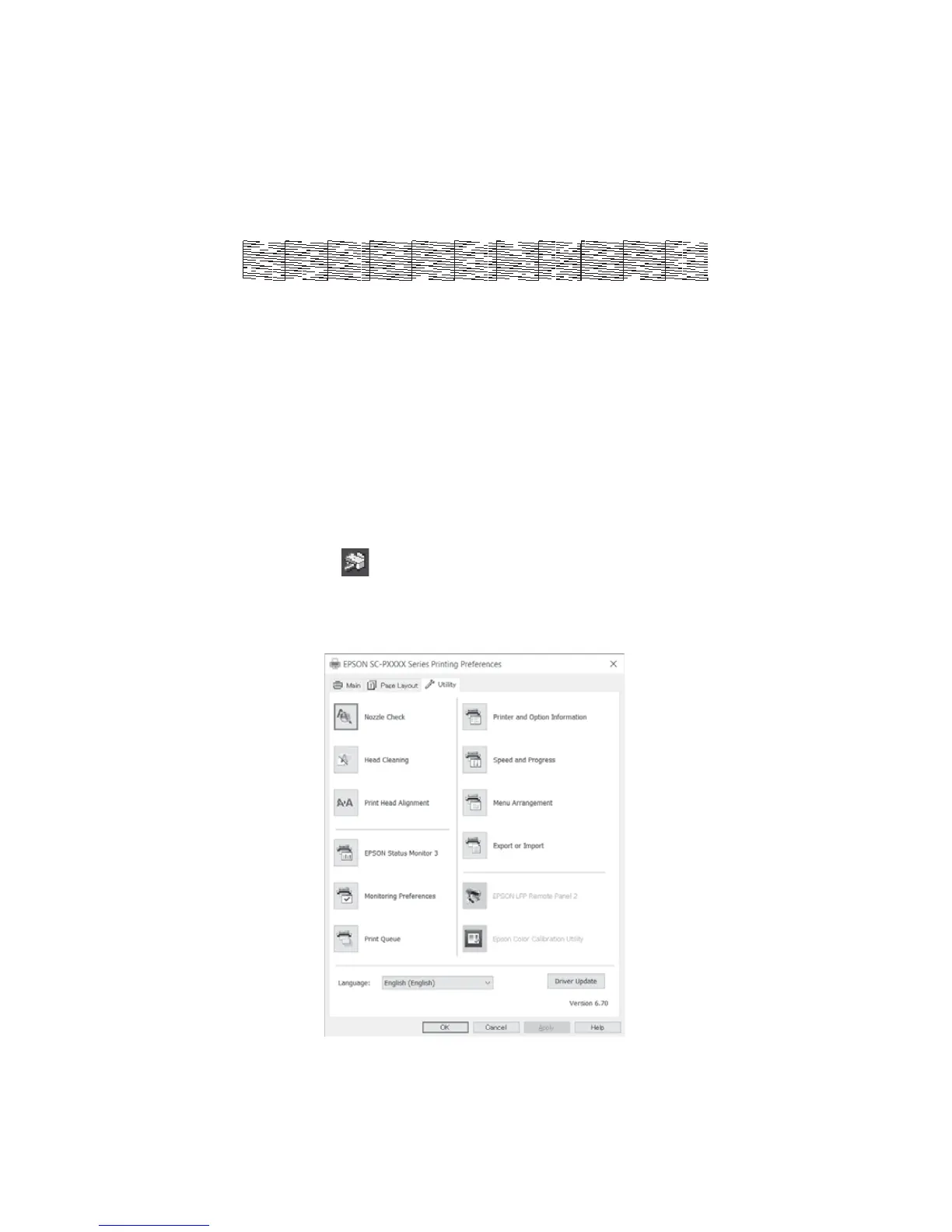

If any dots or segments are missing or deflected, as shown below, run a cleaning cycle as described
on page 35. Then print another nozzle check pattern to make sure the nozzles are clean.
Checking the print head nozzles using a computer
Follow these steps to use your printer software to check the print head nozzles and clean them if necessary:
1. Make sure paper is loaded in the printer.
2. Do one of the following to access the printer utilities:
• Mac: In the Apple menu or the Dock, select System Preferences. Select Printers & Scanners,
Print & Fax or Print & Scan, select your product, and select Options & Supplies. Select Utility
and select
Open Printer Utility.
• Windows: Right-click the icon in the bottom right corner of your screen (the taskbar). Select
Printer Settings, and select the Maintenance tab.
You see a menu like this:
3. Select the Nozzle Check icon and follow the instructions on the screen.

Epson surecolor p5000 Specifications

General

Display	LCD
Product color	Black
Built-in display	Yes
Sound pressure level (printing)	47 dB
Print technology	Inkjet
Maximum resolution	2880 x 1440 DPI
Page description languages	ESC P
Media thickness	1.5 mm
Roll top margin	3 mm
Maximum print size	-
Power consumption (standby)	20 W
Power consumption (typical)	52 W
Storage temperature (T-T)	-20 - 40 °C
Operating temperature (T-T)	10 - 35 °C
Storage relative humidity (H-H)	-20 - 40 %
Operating relative humidity (H-H)	45 - 60 %
Maximum input capacity	250 sheets
USB connector	USB Type-A
USB 2.0 ports quantity	1

Weight and Dimensions

Depth	766 mm
Width	863 mm
Height	405 mm
