Printing CAD Drawings
This printer supports HP-GL/2 and HP RTL used for
plotter printing. You can use either of the following
methods to print CAD drawings on this printer.
❏ Print using the CAD/Line Drawing mode in the
supplied printer driver.
❏ Print using HP-GL/2 and HP RTL emulation used
for plotter printing.
The printer automatically switches between normal
printing and HP-GL/2 or HP RTL emulation printing
based on the print data it receives. However, if mode
switching is not performed correctly and printing is
not performed properly, set the General Settings -
Printer Settings - Language - Network to HP-GL/2.
Printing Using CAD/Line
Drawing Mode in the Printer
Driver
When printing CAD drawings from a Windows
application, we recommend printing using the CAD/
Line Drawing mode in the printer driver.
Windows
A

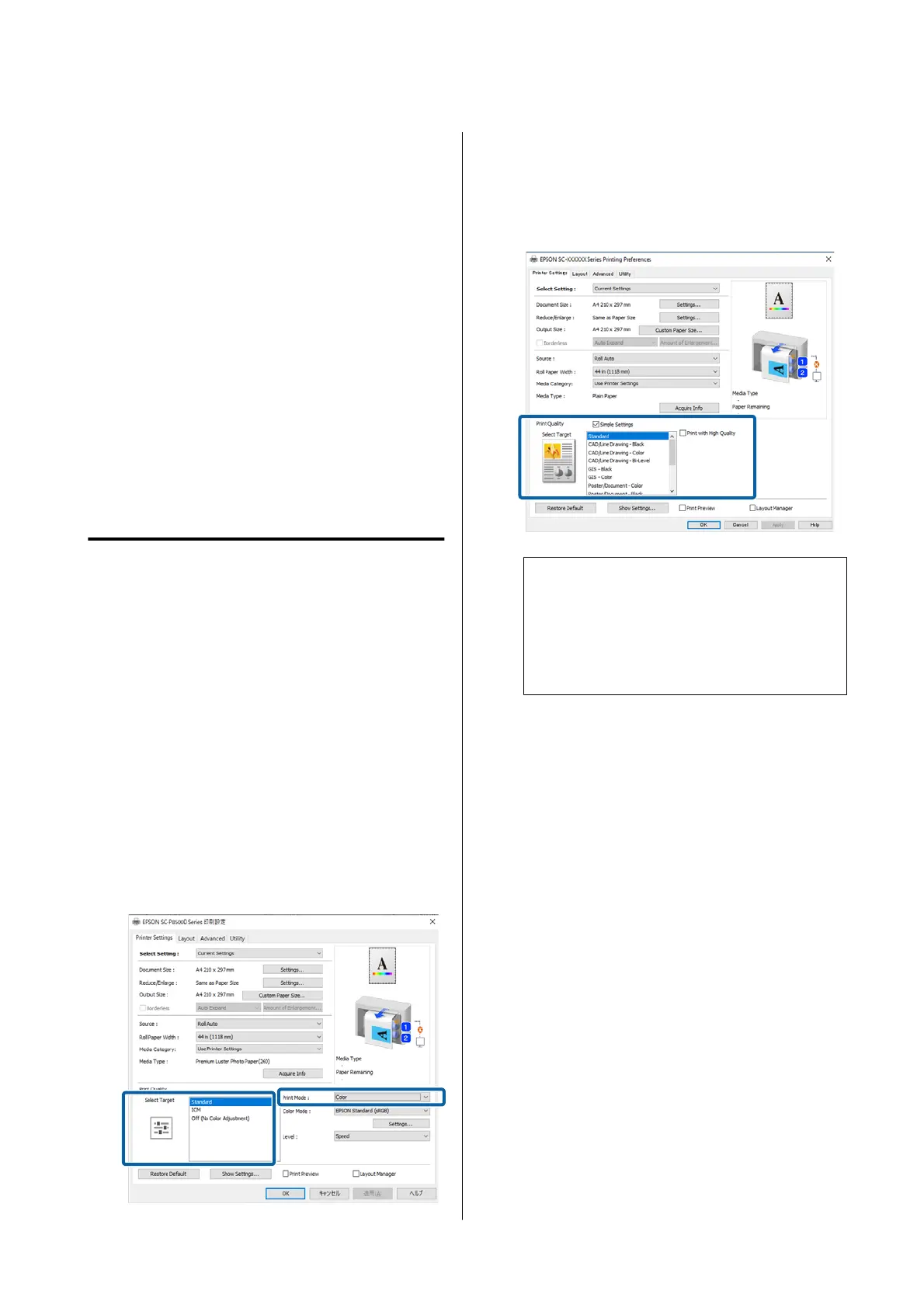

Display the printer driver's Printer Settings
screen, and then make the following settings.
SC-P Series
Select Select Target in Print Quality, and then
select Standard. In Print Mode select Color,
Black, or Black (Bi-Level).
SC-T Series
Select Select Target in Print Quality, and then
select CAD/Line Drawing - Black, CAD/Line
Drawing - Color, or CAD/Line Drawing -
Bi-Level.
Note:
CAD/Line Drawing - Black, CAD/Line Drawing
- Color, CAD/Line Drawing - Bi-Level are
displayed as selections in Select Target when a
suitable paper type for printing CAD drawings is
selected.
B
Check other settings, and then start printing.
Mac
A
Display the Print screen, and then select
Printer Settings from the list.
U “Basic Printing Methods(Mac)” on page 73
SC-P8500DM/SC-P8500D/SC-P6500D/SC-P6500DE/SC-P6500E/SC-T7700DM/SC-T5700DM/SC-T7700D/SC-T5700D/SC-3700D/SC-T3700DE/SC-T3700E/SC-P8500DL/SC-T7700DL Series User's Guide
Various Printing Methods
90
