External Dimensions and Necessary Space

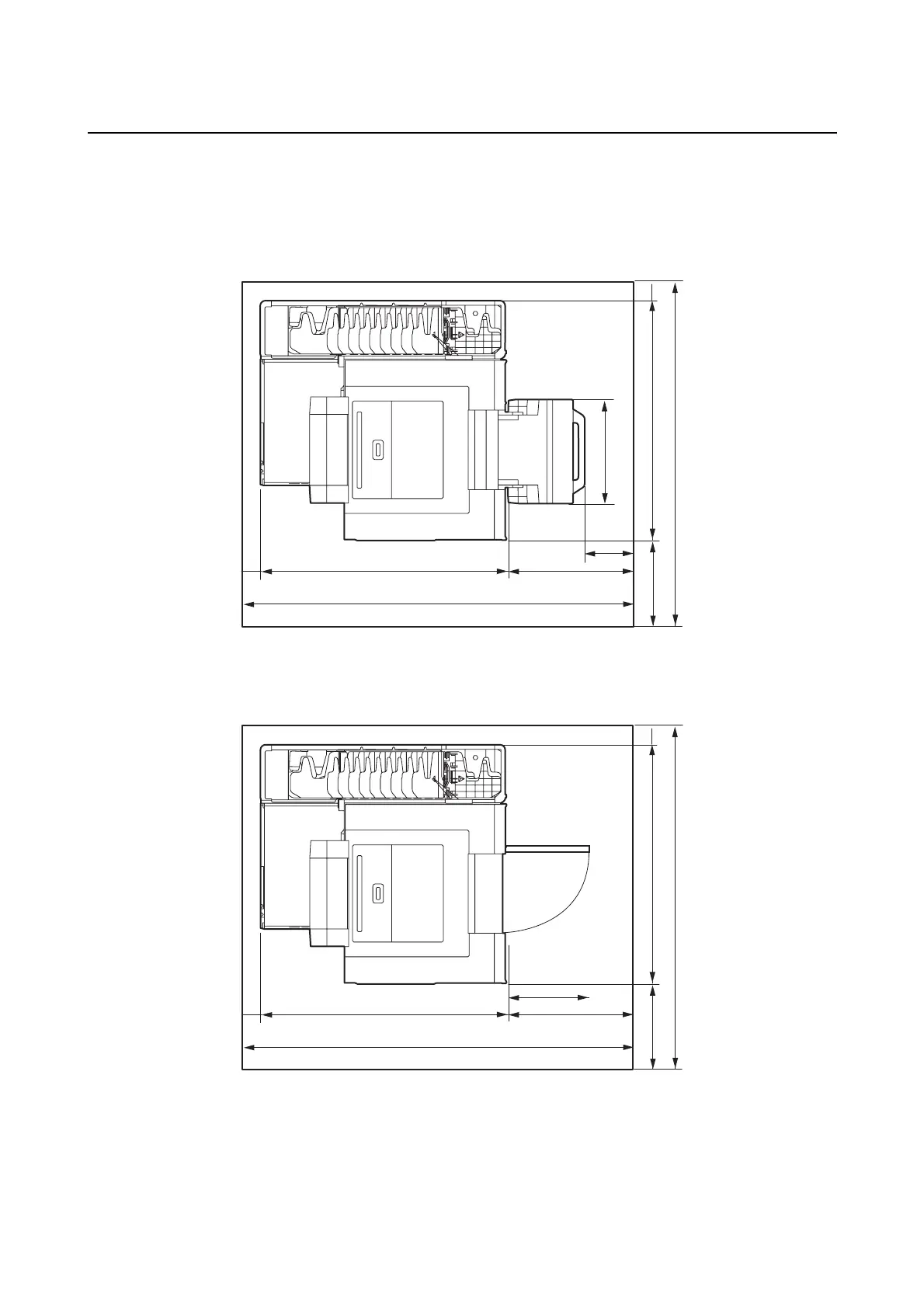

External dimensions (When the sorter unit is installed)
From above (Dual Roll Model)
From above (Single Roll Model)
Units: inches (mm)
Units: inches (mm)
44.57 (1132)
3.94
(100)
64.25 (1632)
3.94
(100)
45.47 (1155) 27.56 (700)
76.97 (1955)
12.80
(325)
15.75 (400)
19.37 (492)
76.97 (1955)
45.47 (1155)
3.94
(100)
44.57 (1132)
3.94
(100)
64.25 (1632)
15.75 (400)
17.99 (457)
27.56 (700)
