Introduction
7

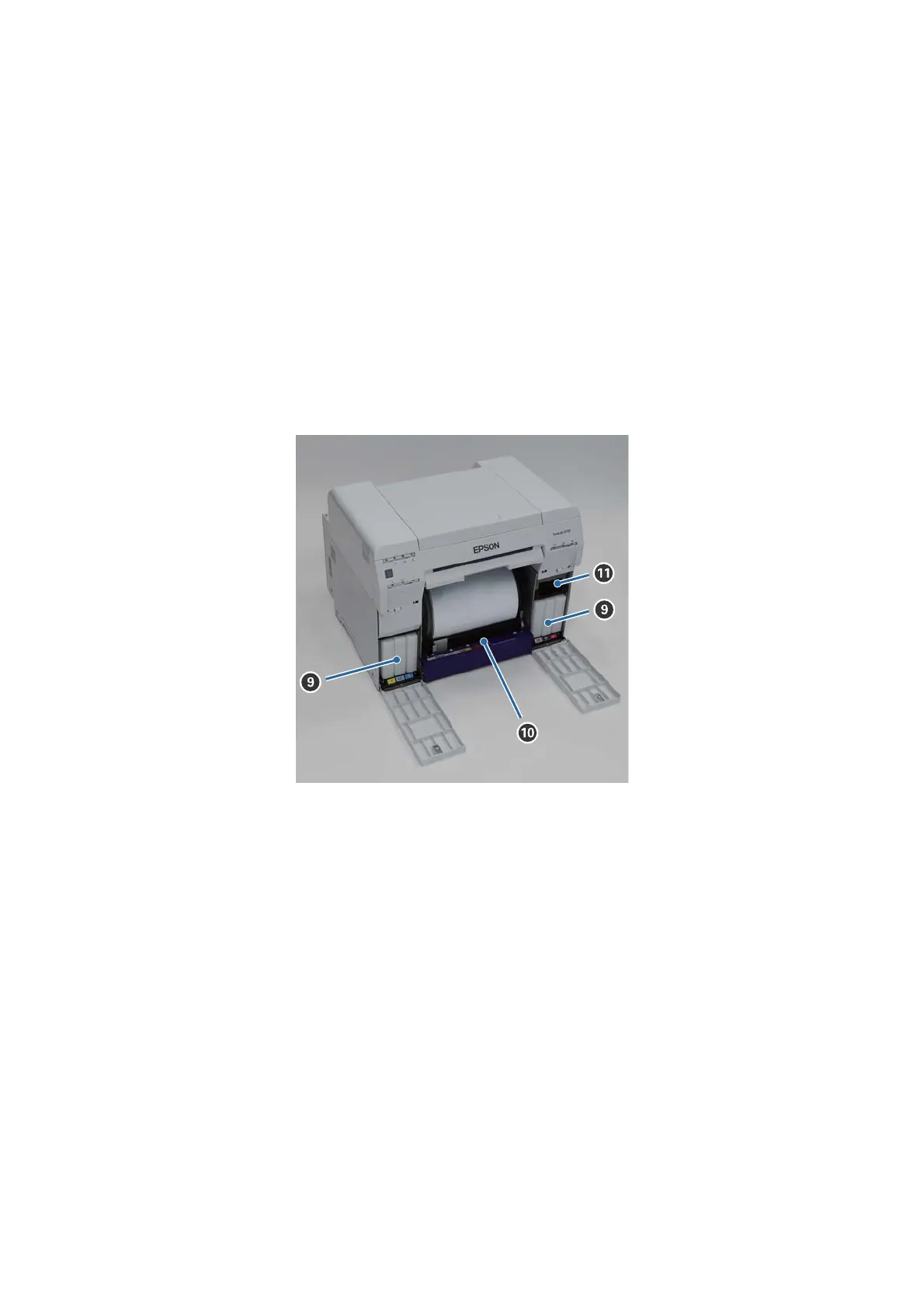

Inside
G Print tray/Large print tray (optional)
Holds the ejected print outs.
See “Paper Output” on page 38.
H Cartridge cover (right)
Open when replacing ink cartridges or the maintenance tank.
See “Replacing Ink Cartridges” on page 43.
See “Replacing the Maintenance Tank” on page 51.
I Ink cartridges
J Roll paper feeder
Pull this to the front when removing the roll paper spindle..
K Maintenance Tank
Container that holds waste ink.
See “Replacing the Maintenance Tank” on page 51.
To Next Page
