Epson TM-C100 - Chapter 2 Setup; Part Names and Basic Operations; Part Names

Rev. C Setup 2-1
TM-C100 Technical Reference Guide
Chapter 2
Setup
2.1 Part Names and Basic Operations
2.1.1 Part names
❏ Release lever
Pressing this lever switches between the paper clamp status (preparing to print) and paper
release status (ready for insertion of paper).
• Release lever raised: paper clamped status (ready to print)
• Release lever lowered: paper released status (not ready to print)
Note:
See "Control panel" on page 2-3 for how to use the control panel.
For details of how to use the products, see "How to Set, Replace, and Print on the Paper" on page 3-1.

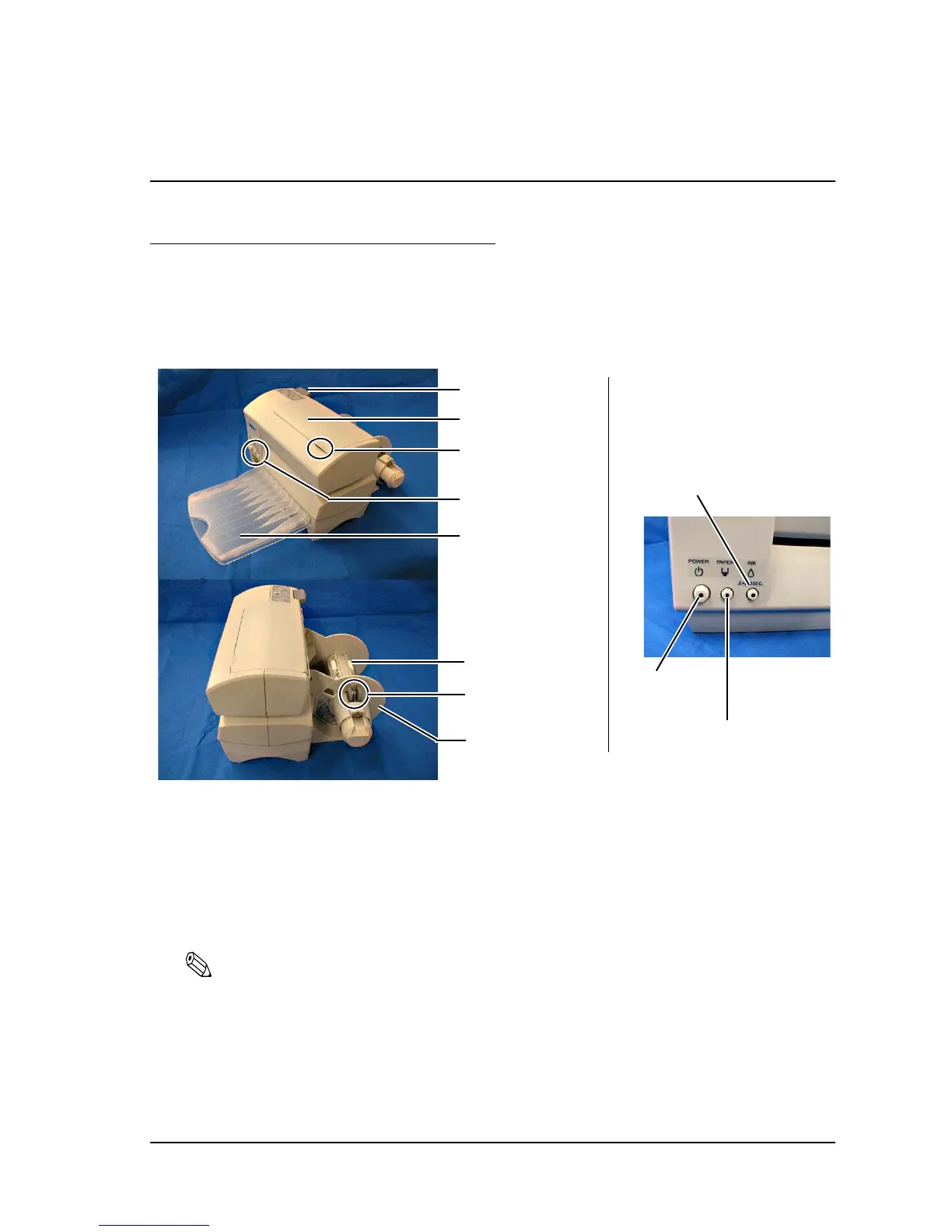

release lever
printer cover
tab
paper tray
control panel
roll paper holder
roll paper
locking clip
Roll paper specification
POWER LED &
PAPER LED &
INK LED &
Enlarged view of the
control panel
edge guide
CLEANING switch
PAPER switch
POWER switch
