Setting Up the Printer 1–9
Grounding the Printer
You need a ground wire to ground your printer. Make sure the
wire meets the specification below.
Thickness of wire: AWG 18 or equivalent
Diameter of terminal to be attached: 3.2
1. Make sure that the printer is turned off.

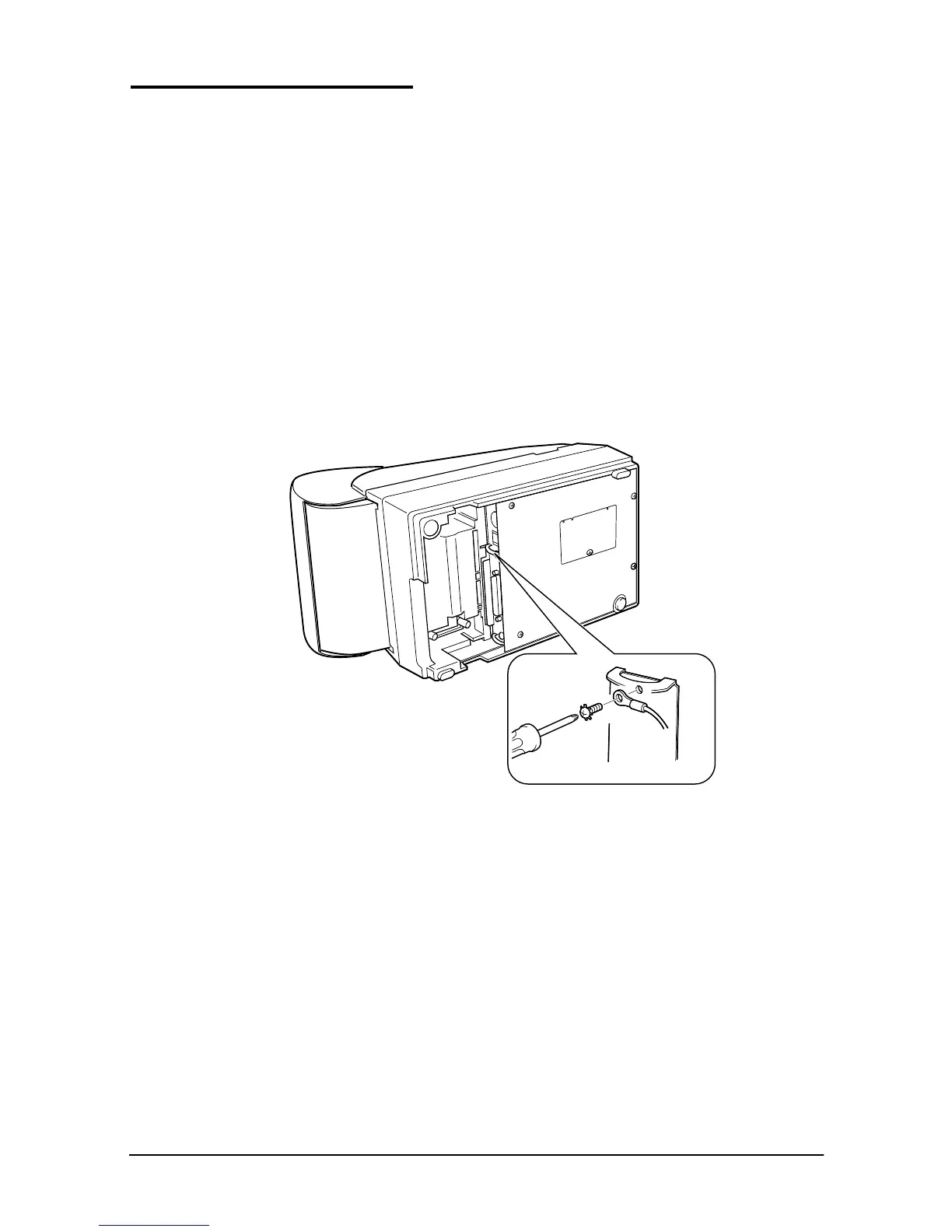

2. Connect the ground wire to the printer using the FG screw on
the bottom of the printer, as shown.
