Confidential
Adjustment Details of Adjustments 69
Epson WF-5690/4640/4630/5620/5190/5110 series Revision D
3. Fold the excess portions of Teflon tape along the edges of the thickness gauge, and trim the portions
at about the center in the thickness direction of the sides.

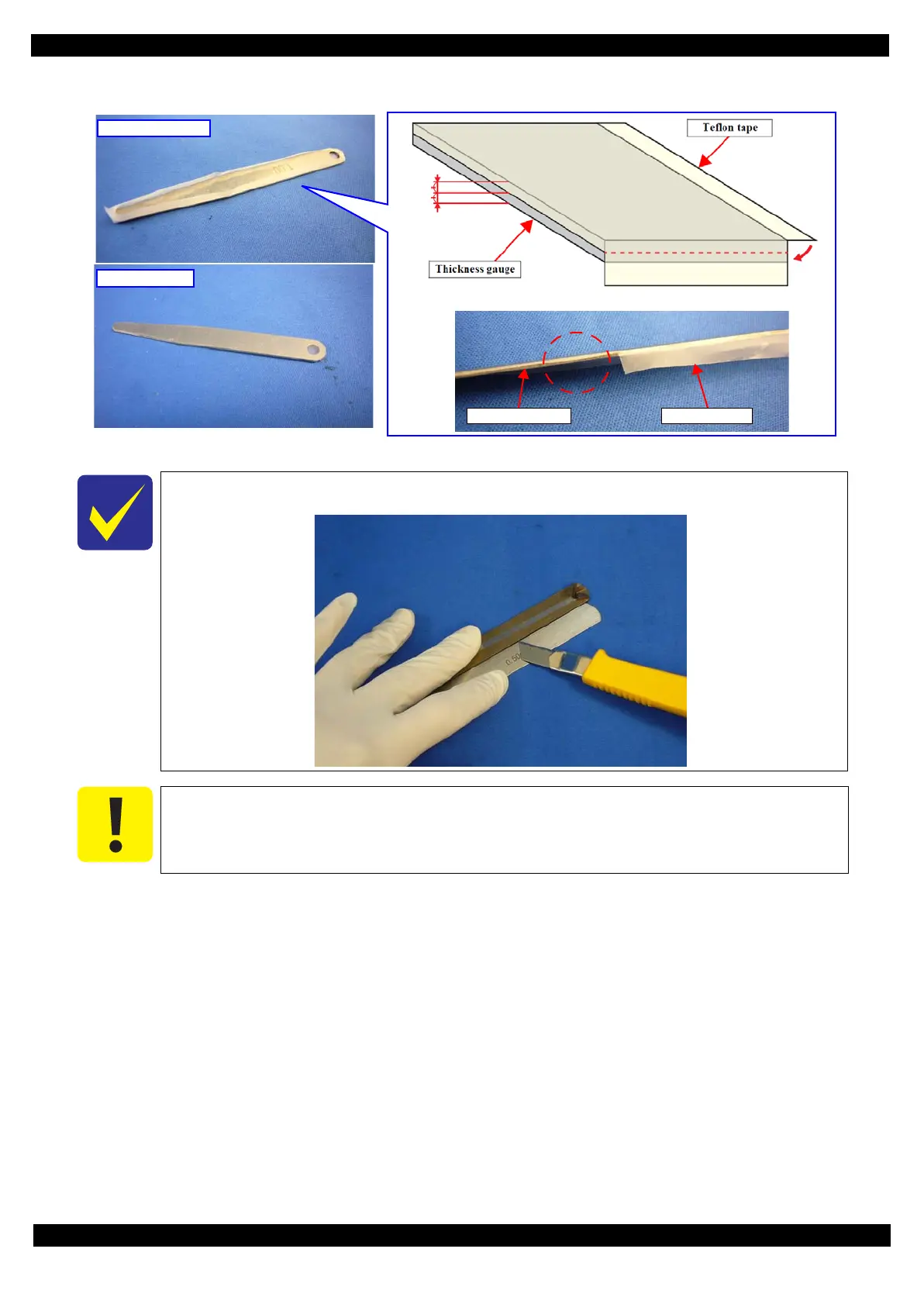

Figure 3-18. Modification of thickness gauge
4. Make sure any tears or burns on the applied Teflon tape, then the modification of thickness gauges is
complete.
When the Teflon tape is trimming, the Teflon tape can be easily cut out by guiding the half
thickness gauge.
Make sure to wear the heavy gloves to prevent the cut the hand when trim the Teflon
tape.
Before trimming
After trimming
Fold the tape at the edges and trim it at the center in the thickness direction.
Thickness gauge Teflon Tape
