Adjustment Details of Adjustments 73
Epson WF-5690/4640/4630/5620/5190/5110 series Revision D
7. With the Carriage Assy in the center of the printer, adjust three notches each for both PG Cam Right and PG
Cam Left to make the PG narrower.
8. Pull the Timing Belt to move the Carriage Assy to 0-digit side and 80-digit side and check if the Carriage
Assy touches the thickness gauges. If the Carriage Assy does not come in contact with the thickness gauges,
adjust the PG Cam Right and PG Cam Left to make the PG narrower until the Carriage Assy touches the
thickness gauges.

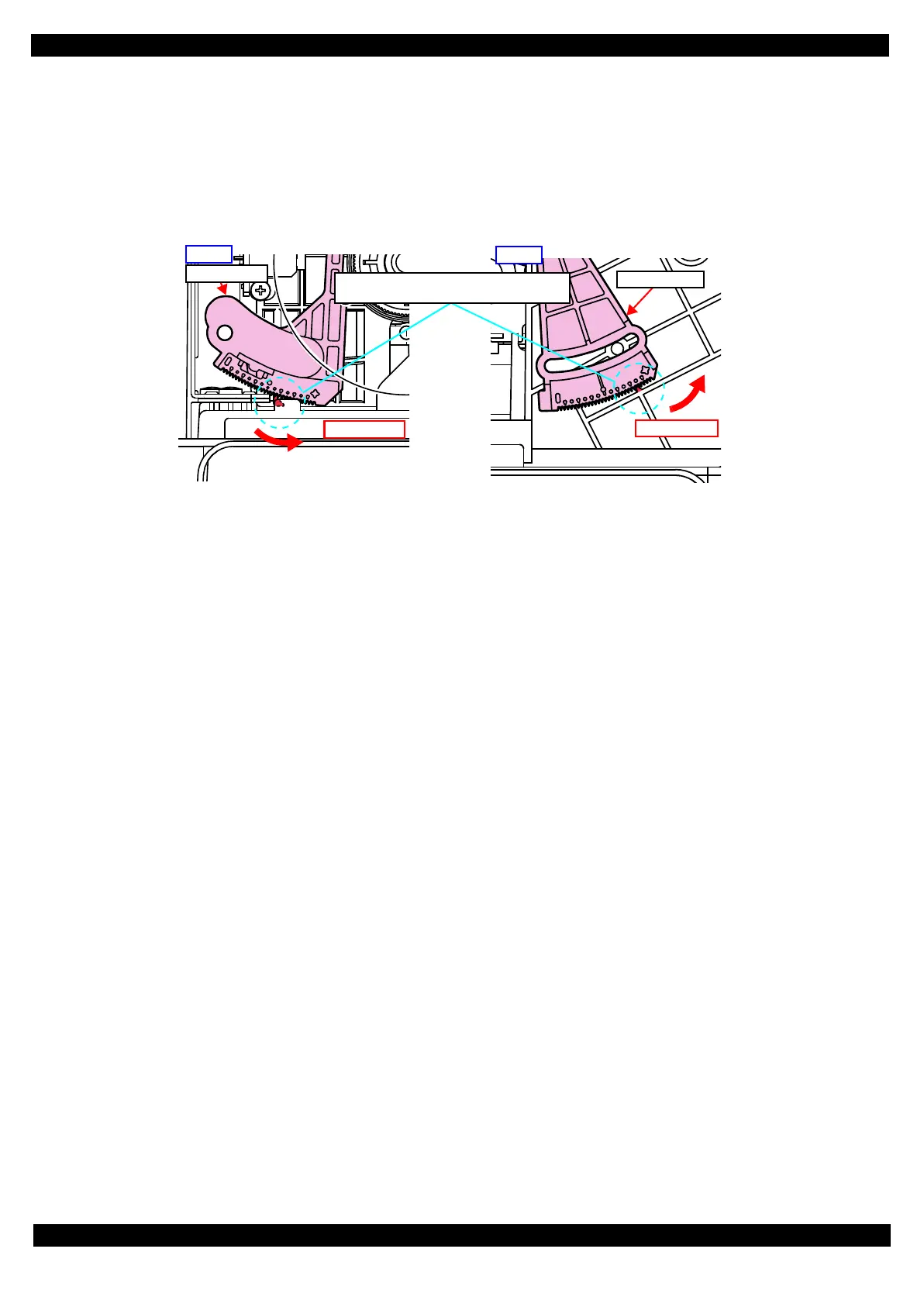

Figure 3-26. PG Adjustment
Right
PG Cam Right
PG: narrower
Left
PG Cam Left
PG: narrower
Adjust three notches each for both PG Cam
Right/Left to make the PG narrower.

Epson WF-5690 Series Specifications

General

Print Resolution	4800 x 1200 dpi
Duplex Printing	Yes
Connectivity	USB, Ethernet, Wi-Fi, Wi-Fi Direct
Fax	Yes
Functions	Print, Copy, Scan, Fax
Dimensions (W x D x H)	18.1" x 25.8" x 15.1"
Print Technology	PrecisionCore
Print Speed (Black/Color)	20 ppm / 20 ppm
Scanner Type	Flatbed, ADF
ADF Capacity	35 sheets
Display	4.3" color touchscreen
Mobile Printing	Epson Connect, Apple AirPrint, Google Cloud Print
Paper Sizes	A4, A5, A6
Ink Cartridges	Black, Cyan, Magenta, Yellow
Monthly Duty Cycle	45, 000 pages
