Epson WF-7620/7610/7110 Series Revision B
Disassembly/Reassembly Routing FFCs/cables 51
Confidential

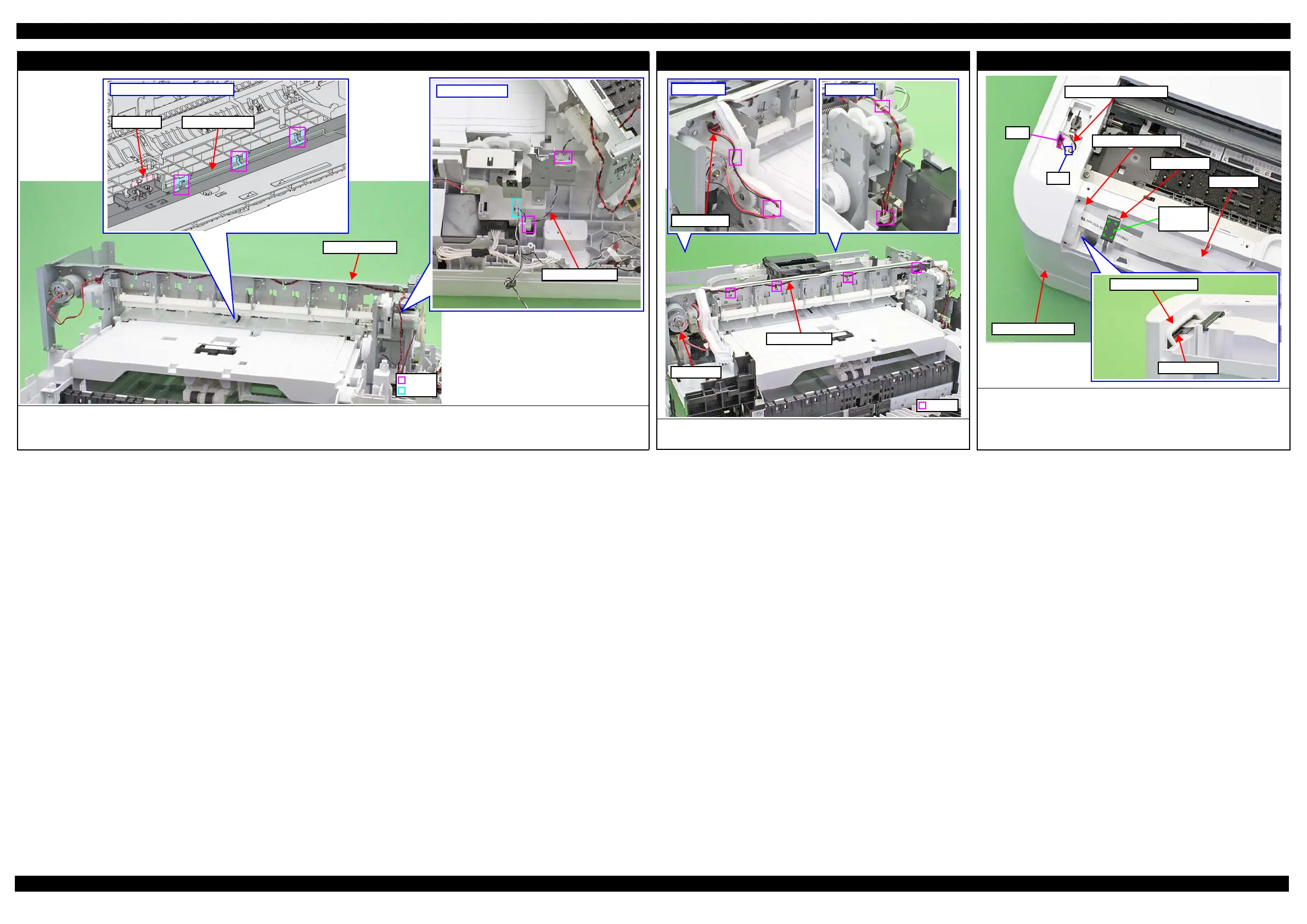

PE Sensor
Route the PE Sensor cable as follows.
1. Route through the hooks (x3) on the Main Frame Unit.
2. Route through the hooks (x2) and dowel on the Frame Base 1st, and install the Main Frame Unit to the Frame Base 1st. (p 45)
Main Frame Unit
Hook
Dowel
PE Sensor Cable
Frame Base 1st
PE Sensor
Main Frame Unit's bottom
PE Sensor cable
CR Motor
 Insert the ferrite core into the position shown above.
 Route the CR Motor cable through the hooks (x8) shown above.
Hook
CR Motor cable
Ferrite core
130-digit side
0-digit side
CR Motor
Scanner Housing Upper Assy (WF-7110 Series)
 Pull out the Cover Open Sensor cable from the hole on the Housing Upper
Assy, and route it through the rib.
 Thread the Panel FFC through the ferrite core holder and ferrite cores (x2)
when routing the FFC.
 Secure the ferrite core to the position shown above with double-sided tape.
Ferrite core
Ferrite core Holder
Housing Upper Assy
Cover Open Sensor cable
Hole
Panel FFC
Rib
Double-
sided tape
Ferrite core
Ferrite core Holder

Epson WF-7110 Series Specifications

General

Print Technology	Inkjet
Max Print Resolution	4800 x 2400 dpi
Duplex Printing	Yes
Input Tray Capacity	250 sheets
Wireless	Yes
Functions	Print
Maximum Resolution	4800 x 2400 dpi
Max Print Size	13" x 19"
Connectivity	USB, Ethernet, Wi-Fi
Paper Sizes	Letter, Legal, A4, A5, A6
Mobile Printing	Epson Connect, Apple AirPrint, Google Cloud Print
Ink Cartridges	Black, Cyan, Magenta, Yellow
Print Speed (Black)	15 ppm (ISO)
