Guide to the LCD Screen

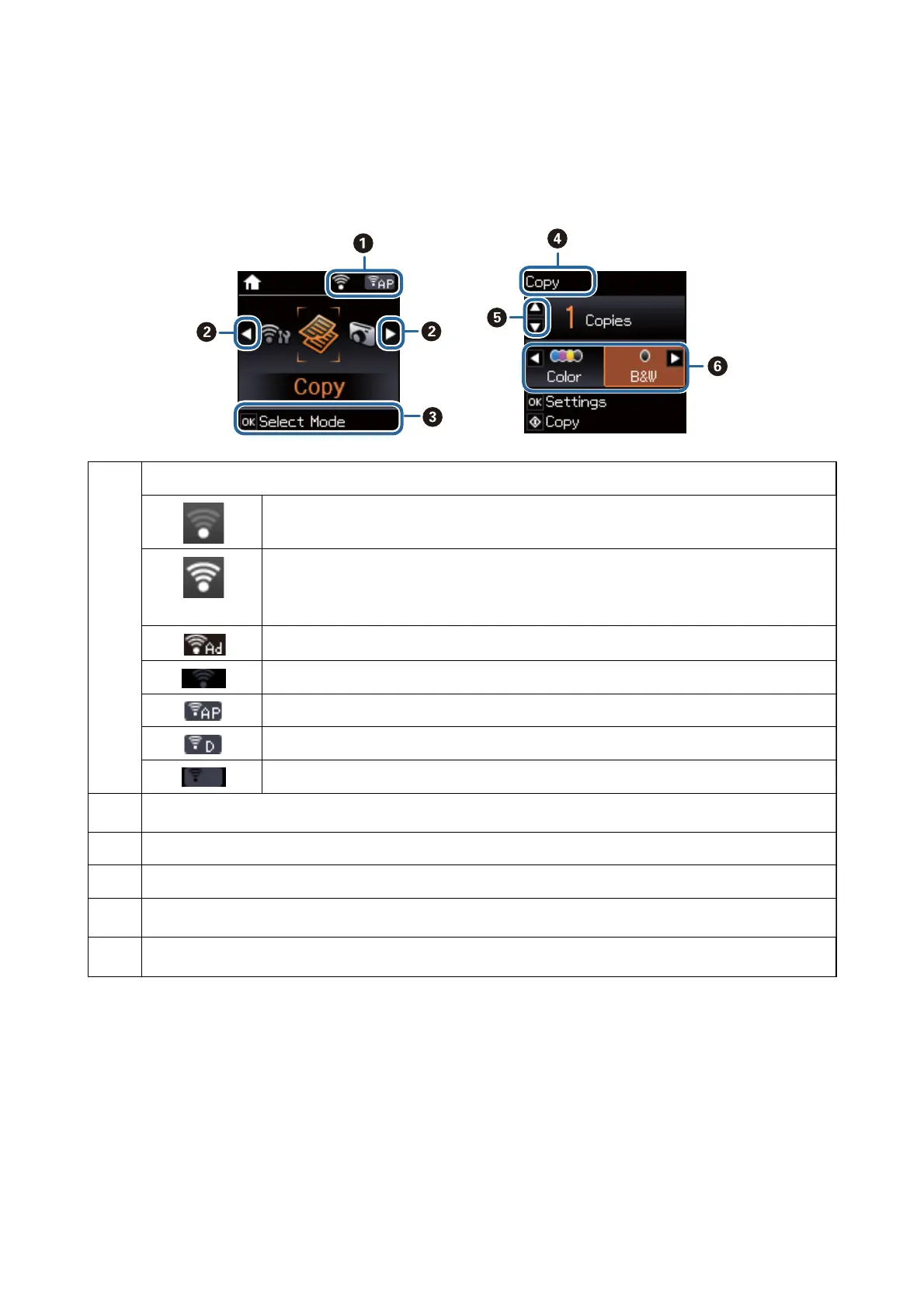

Menus and messages are displayed on the LCD screen. Select a menu or setting by pressing the
u
d
l
r
buttons.
A
Icons that show the network status are displayed.
Indicates a problem with the printer's wireless (Wi-Fi) network connection, or that the printer is
searching for a wireless (Wi-Fi) network connection.
Indicates that the printer is connected to a wireless (Wi-Fi) network.
The number of bars indicates the signal strength of the connection. The more bars there are,
the stronger the connection.
Indicates that the printer is connected to a wireless (Wi-Fi) network in Ad Hoc mode
Indicates that a wireless (Wi-Fi) network is disabled, or that the printer is connecting.
Indicates that the printer is connected to a wireless (Wi-Fi) network in Simple AP mode.
Indicates that the printer is connected to a wireless (Wi-Fi) network in Wi-Fi Direct mode.
Indicates that Wi-Fi Direct is disabled, or that the printer is connecting.
B
When
l
and
r
are displayed, you can scroll right or left.
C
Available buttons are displayed. In this example, you can proceed to the selected menu by pressing the OK button.
D
This is the name of the screen displayed.
E
Available buttons are displayed. In this example, you can set the number of copies by pressing the
u
or
d
button.
F
Available buttons are displayed. In this example, you can select Color or B&W by pressing the
l
or
r
button.
User's Guide
Printer Basics
15
