7 • Installation of the APC 2 and the Argon gas bottles
40 / 62
80110-201_V24169
2022-01
Fixing argon gas bottles, connection of the working gas bottle,
detachment of the working gas bottle on the Universal Cart

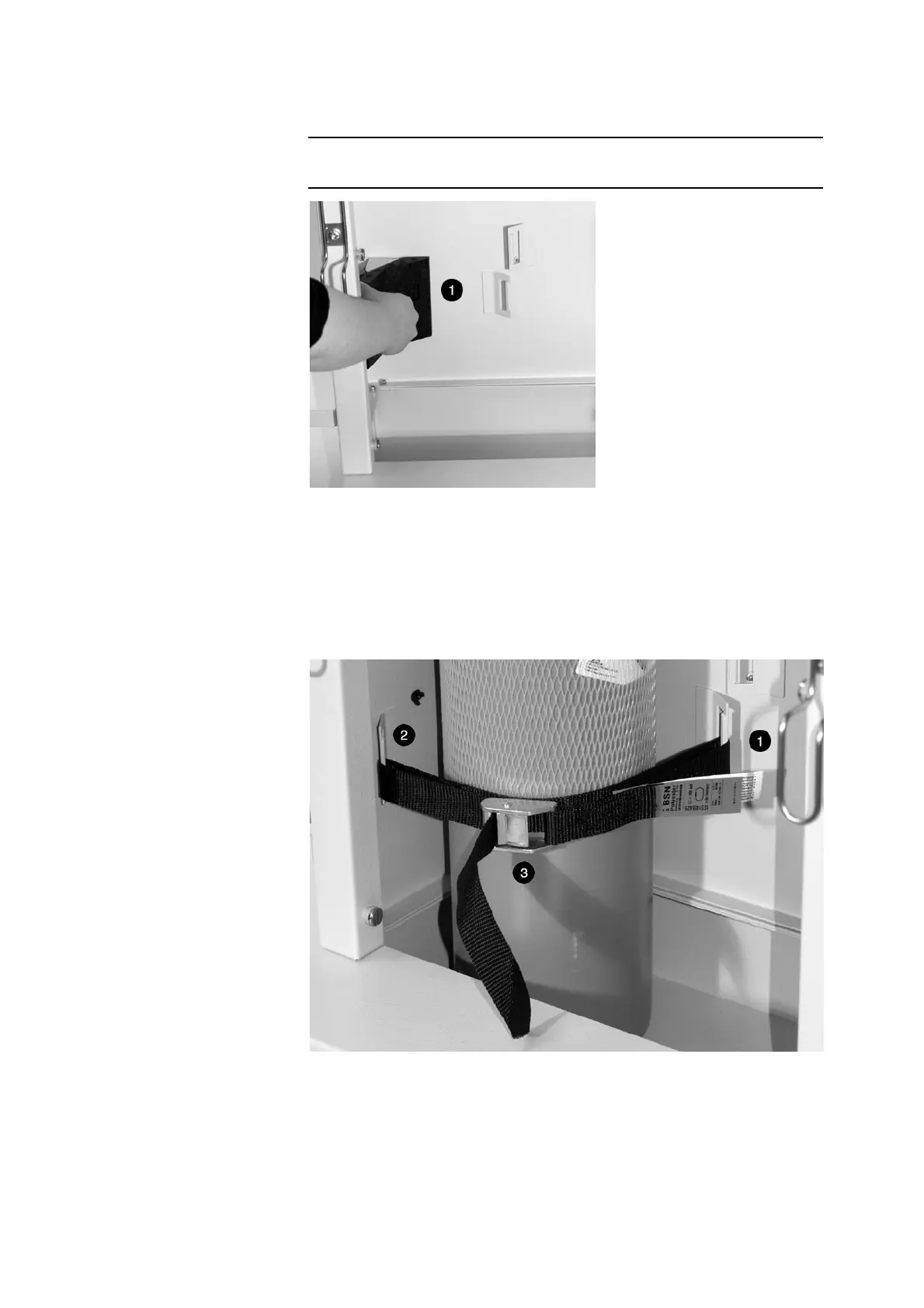

1. Attach gas bottle pads
Fig. 7-6
Remove the door of the Universal Cart. Press the gas bottle pad (1) into the left-hand
corner of the Universal Cart. If you want to position a spare gas bottle in the right-hand
corner, install a gas bottle pad there as well.
2. Place argon gas bottle in the
Universal Cart.
Place the working gas bottle in the left-hand corner. Place the spare gas bottle - if in-
stalled - to the right of it.
3. Thread the lashing strap
Fig. 7-7
Thread the lashing strap through the lower middle lug (1) and through the left-hand
lug (2). The buckle (3) must be on the outer side.
If you have positioned a spare gas bottle in the right-hand corner, thread a lashing
strap there as well.
Tighten the lashing strap. Attach the door again.
