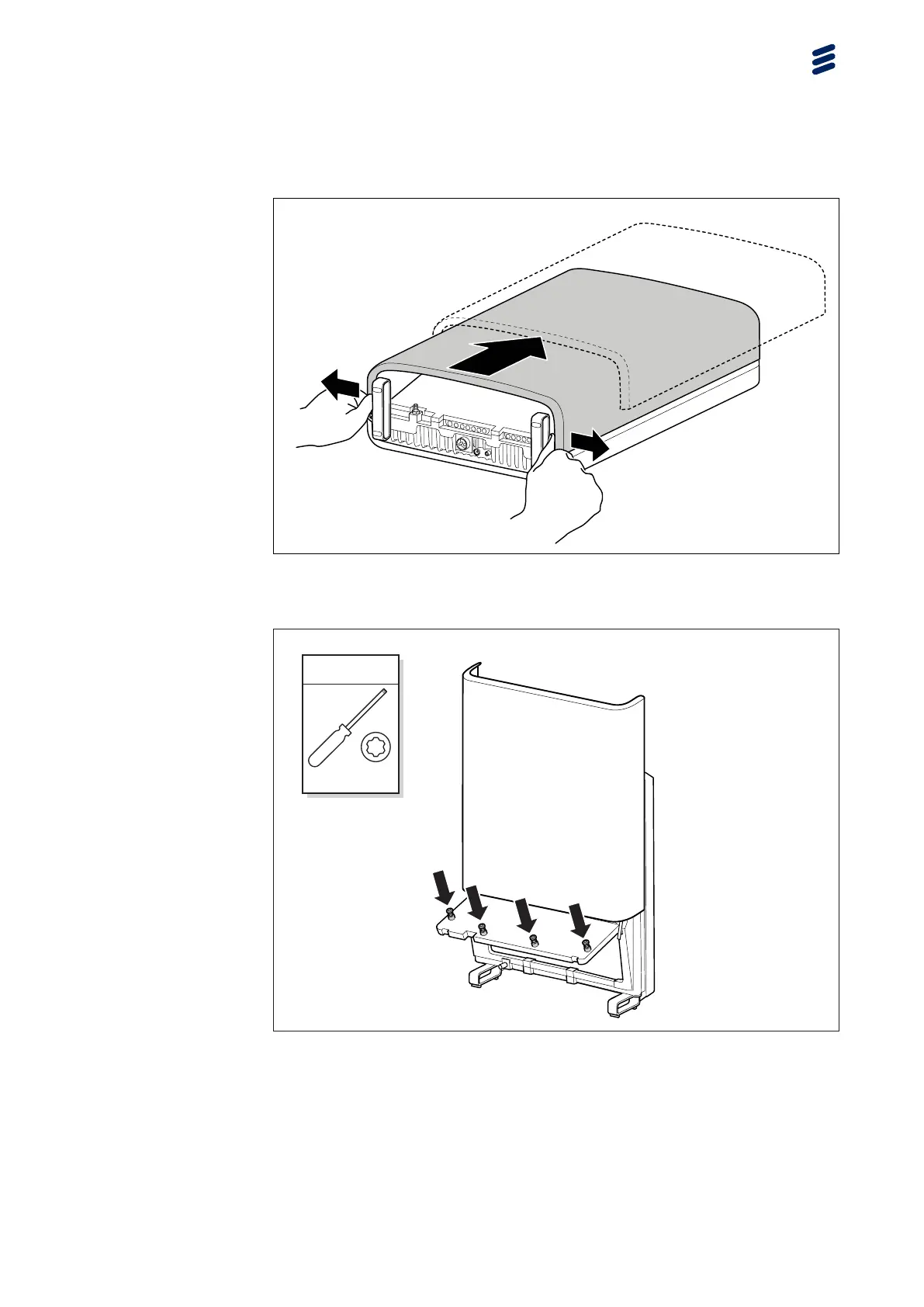

Replacing the Main Unit
Ge2274A
7. Loosen the four captive screws holding the installation cover using a T20
Torx screwdriver.
Ge2666A
T20 Torx
8. Open the installation cover until it snaps into position, holding the
installation cover open.
9
81/1543-LZA 701 6001 Uen B | 2012-11-09
