Replacing the Main Unit
4. Continue the procedure in Section 2.1.7 on page 34.
2.1.4 Removal from a Dual Unit Back-to-Back Pole Installation kit
To remove the main unit, preform the following procedure:

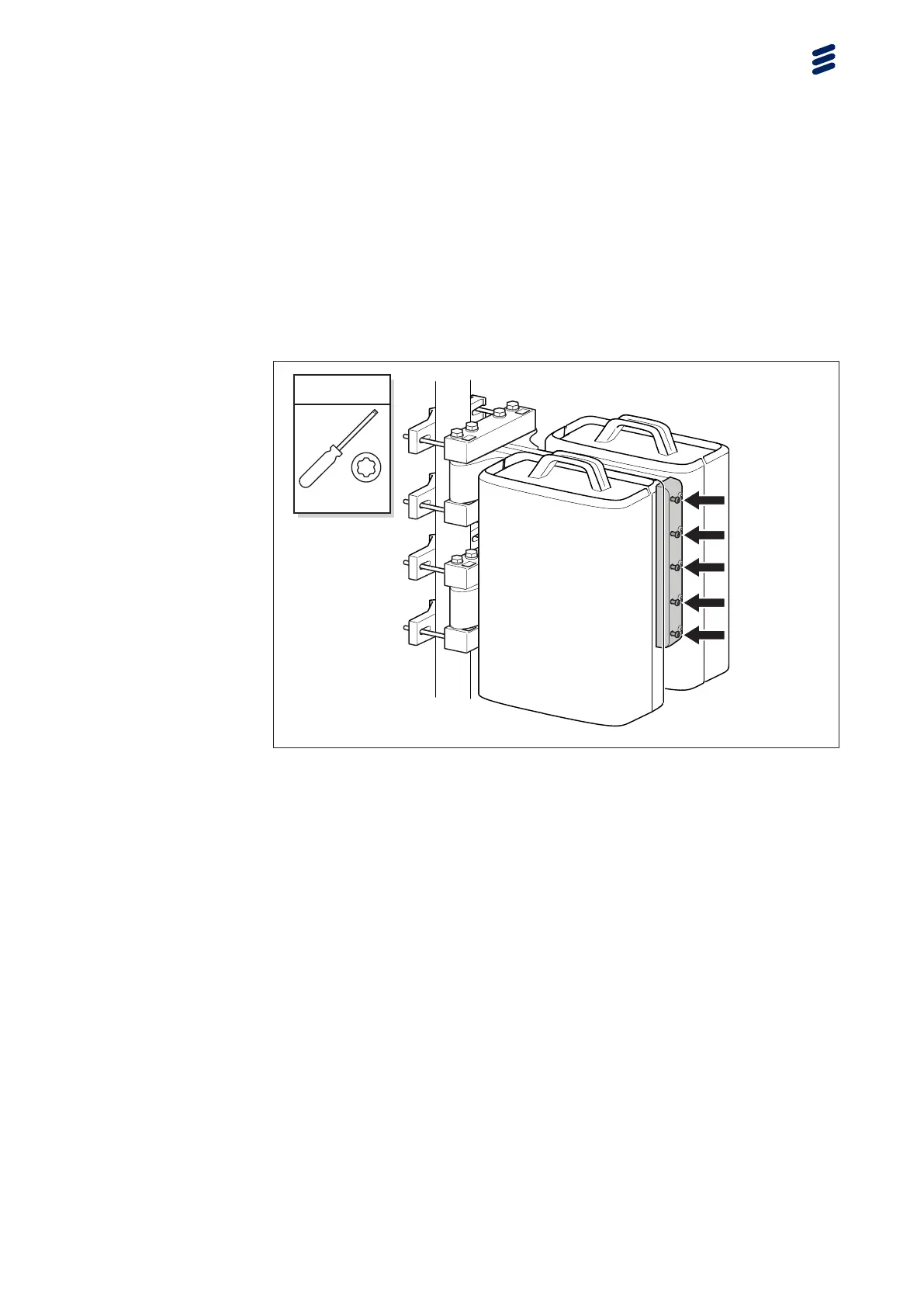

1. Loosen the five captive screws holding the back-to-back plates using a
T25 Torx screwdriver.
T25
Ge2687A
2. Loosen the inner eight M10 bolts using a wrench fitted with a 16 mm socket.
23
81/1543-LZA 701 6001 Uen B | 2012-11-09
