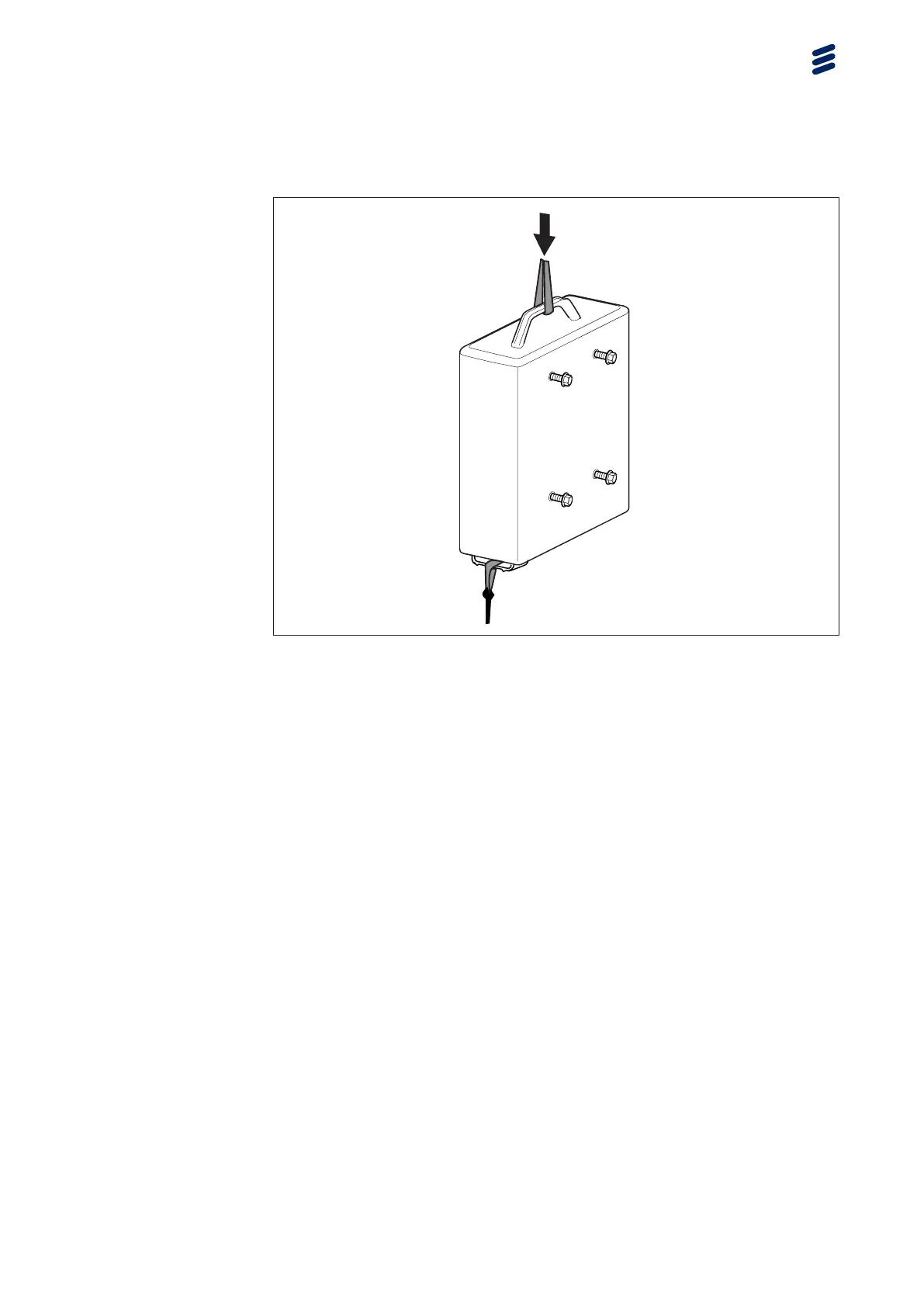

Replacing the Main Unit
Ge2680A
7. Continue the procedure in Section 2.1.7 on page 34.
2.1.6 Removal from a Triple Unit Pole Installation kit
To remove the main unit, preform the following procedure:
1. Loosen the two M10 bolts on the top side of the upper pole clamp, and
the two M10 bolts on the bottom of the lower pole clamp using a wrench
fitted with a 16 mm socket.
31
81/1543-LZA 701 6001 Uen B | 2012-11-09
