Replacing Main Unit
Ge2569A

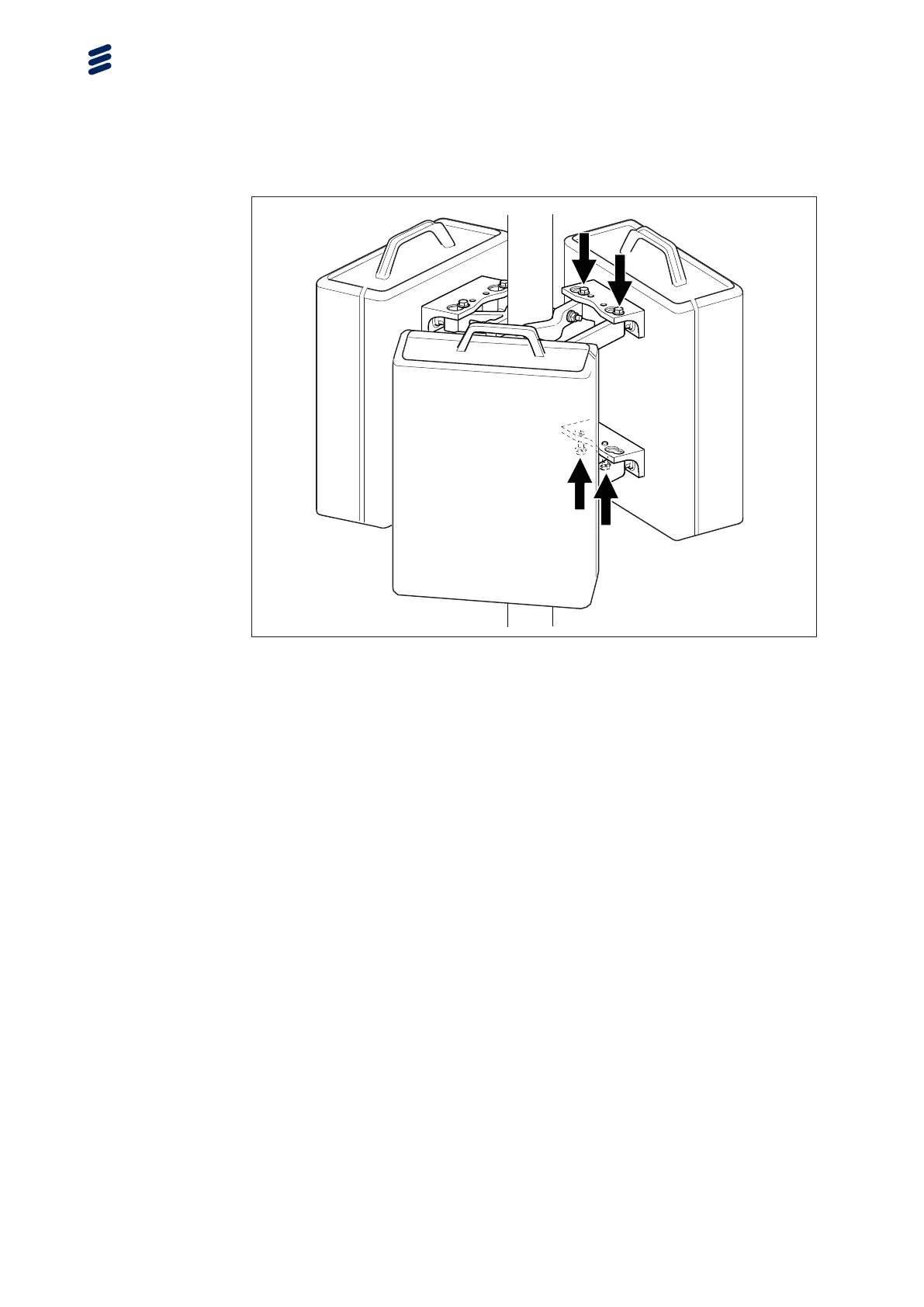

2. Unhook the main unit from the pole clamps. Move the lower part of the
main unit away from the pole, while moving the upper part of the main unit
10 mm to the left so that the bolts on the upper pole clamp are released
through the wide part of the holes on the upper bracket of the main unit.
32
81/1543-LZA 701 6001 Uen B | 2012-11-09
