Replacing Main Unit
• For removing the main unit from a single unit wall installation kit, see
Section 2.1.3 on page 20.
• For removing the main unit from a dual unit back-to-back pole installation
kit, see Section 2.1.4 on page 23.
• For removing the main unit from a dual unit back-to-back wall installation
kit, see Section 2.1.5 on page 27.
• For removing the main unit from a triple unit pole installation kit, see
Section 2.1.6 on page 31.
2.1.2 Removal from a Single Unit Pole Installation kit
To remove the main unit, preform the following procedure:

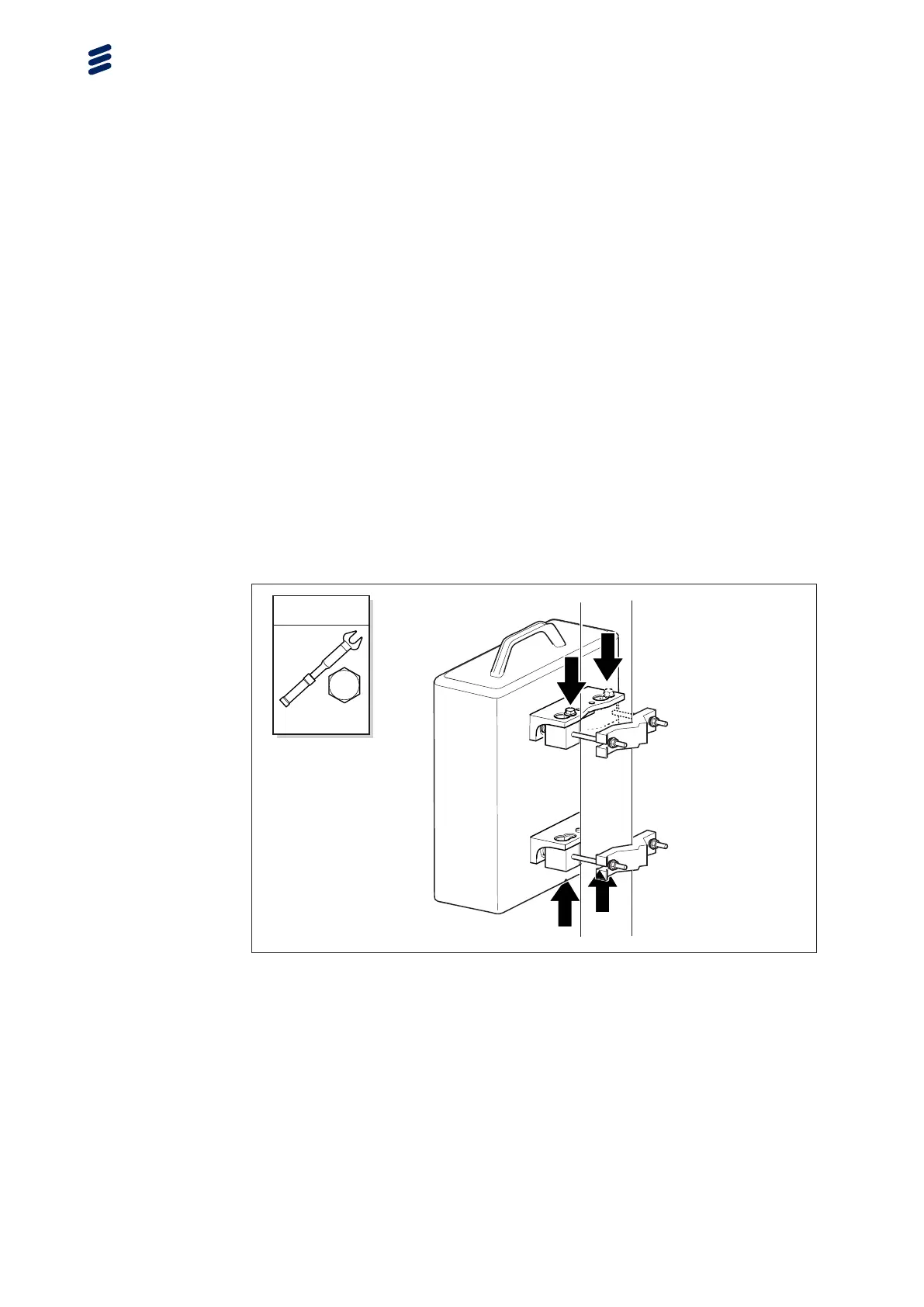

1. Loosen the two M10 bolts on the top side of the upper pole clamp, and
the two M10 bolts on the bottom of the lower pole clamp using a wrench
fitted with a 16 mm socket.
Ge2676A
16 mm
2. Unhook the main unit from the upper pole clamp. Move the upper part of
the main unit 10 mm to the left so that the bolts on the upper pole clamp
are released through the wide part of the holes on the upper bracket of
the main unit.
18
81/1543-LZA 701 6001 Uen B | 2012-11-09
