Replacing Main Unit
Ge2677A
4. Continue the procedure in Section 2.1.7 on page 34.
2.1.3 Removal from a Single Unit Wall Installation kit
To remove the main unit, preform the following procedure:

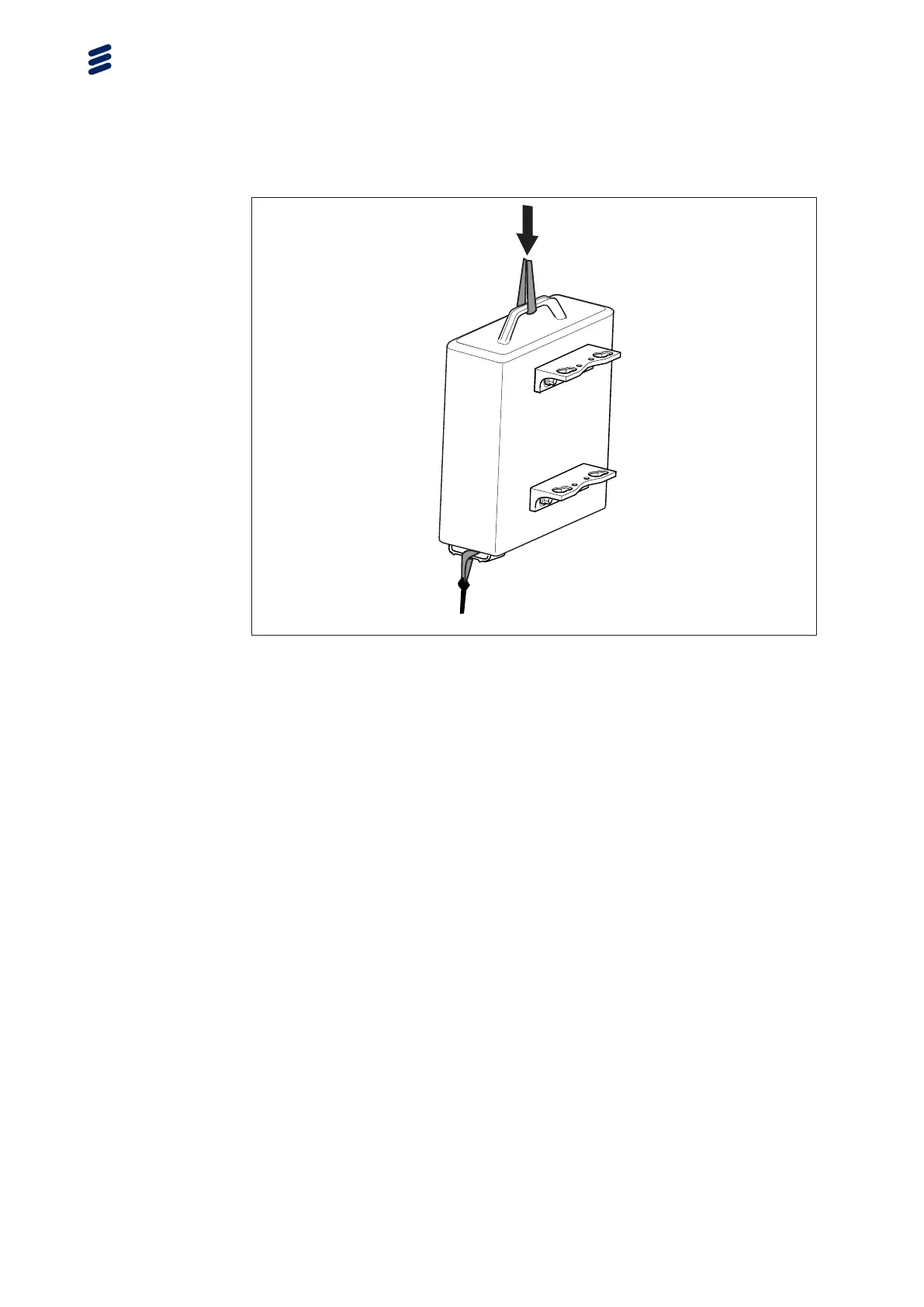

1. Loosen the two M10 bolts on the top side of the upper bracket, and the two
M10 bolts on the bottom of the lower bracket using a wrench fitted with a
16 mm socket.
20
81/1543-LZA 701 6001 Uen B | 2012-11-09
