Replacing the Main Unit

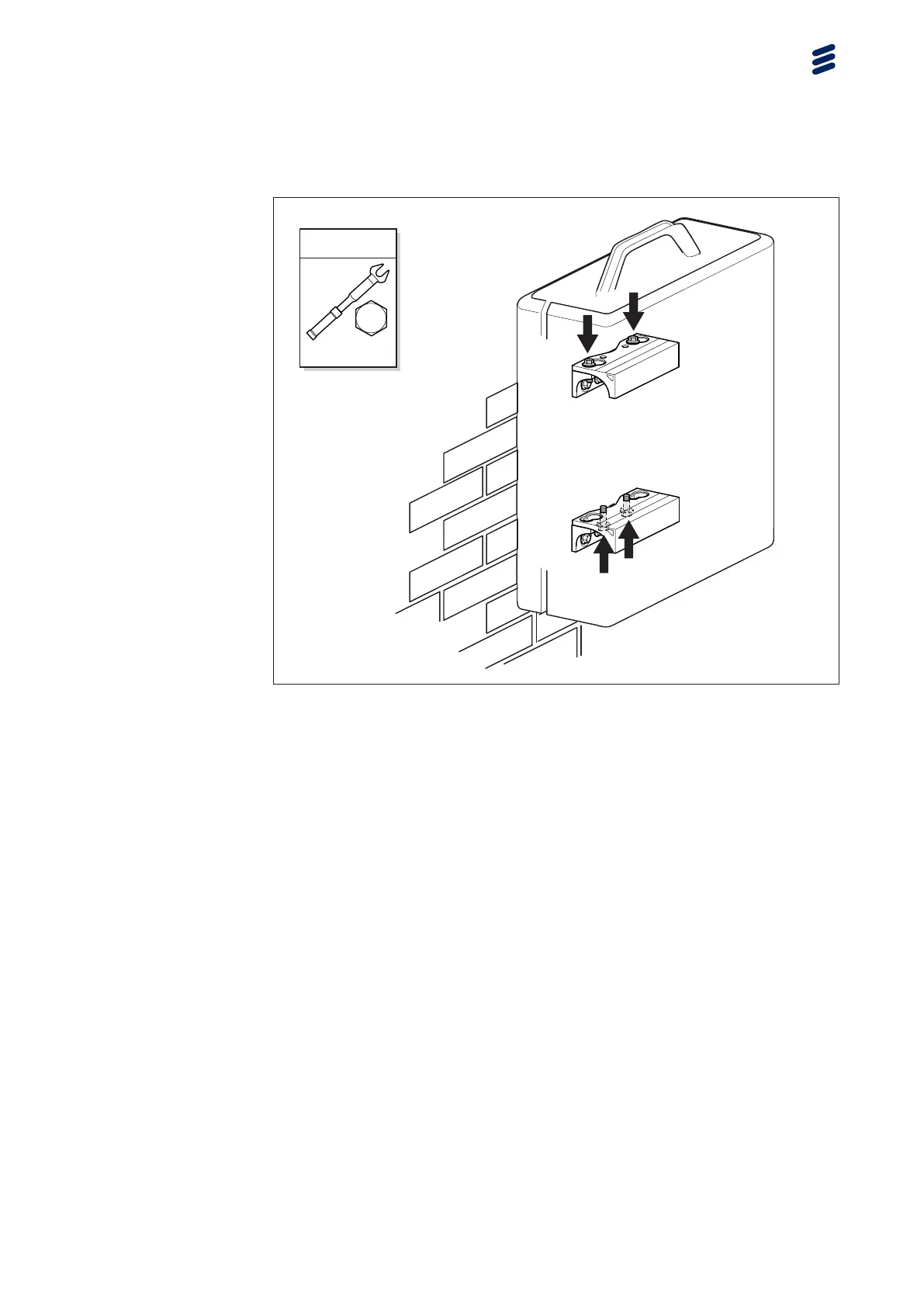

16 mm
Ge2684A
2. Unhook the main unit from the wall brackets. Move the lower part of the
main unit away from the wall. Move the upper part of the main unit 10 mm
to the left so that the bolts on the upper wall bracket are released through
the wide part of the holes on the upper bracket of the main unit.
