Ericsson RBS 6302 - Page 32

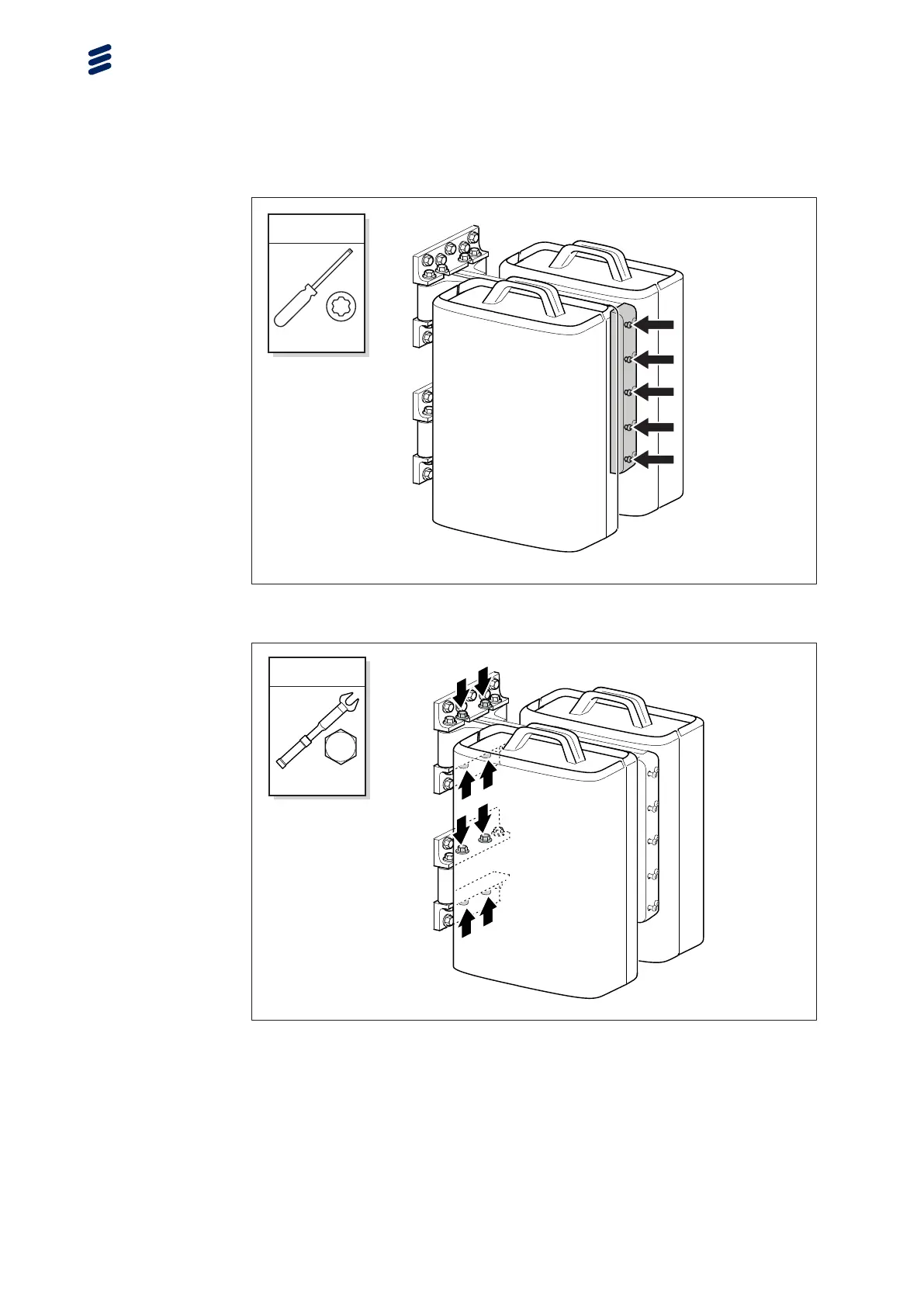

Replacing Main Unit
T25
Ge2685A
2. Loosen the inner eight M10 bolts using a wrench fitted with a 16 mm socket.
Ge2688A
16 mm
3. Carefully loosen the outer eight M10 bolts until the back-to-back plates
can be opened.
28
81/1543-LZA 701 6001 Uen B | 2012-11-09
